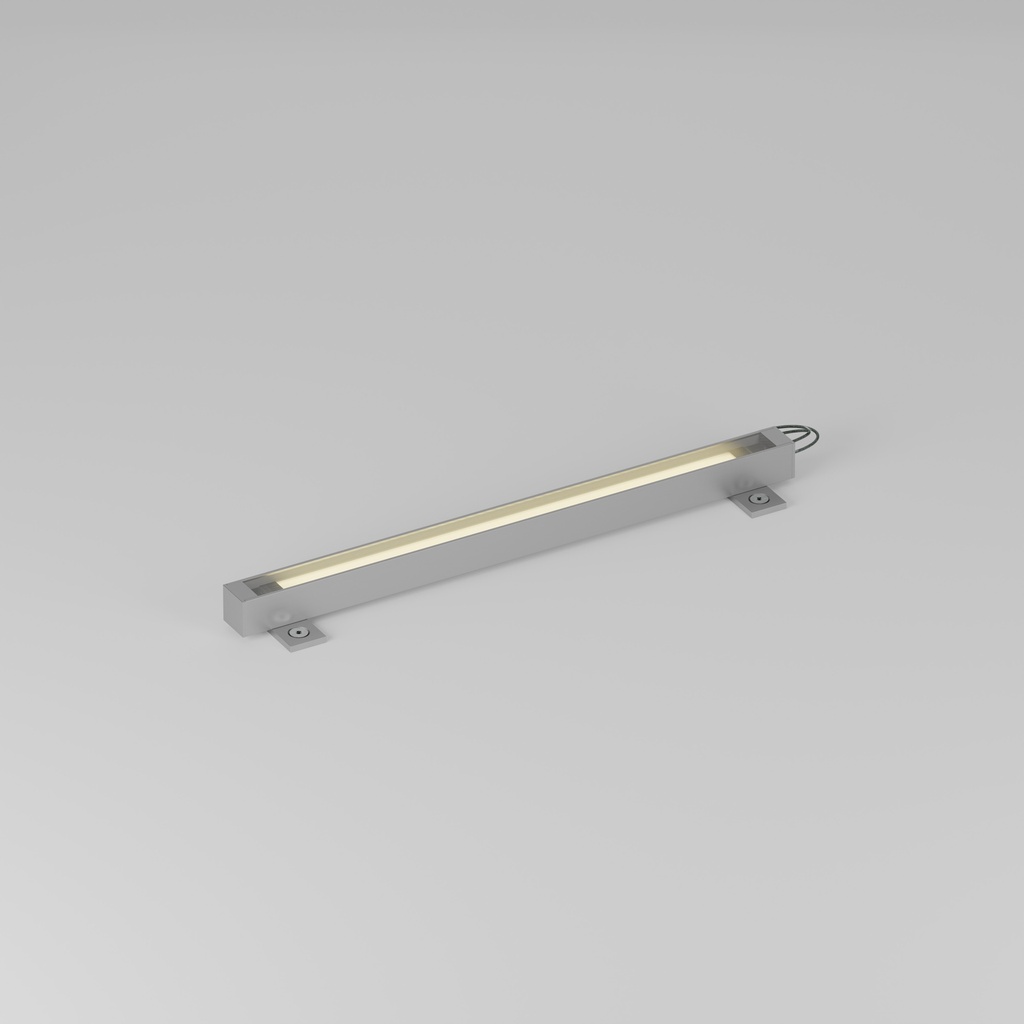

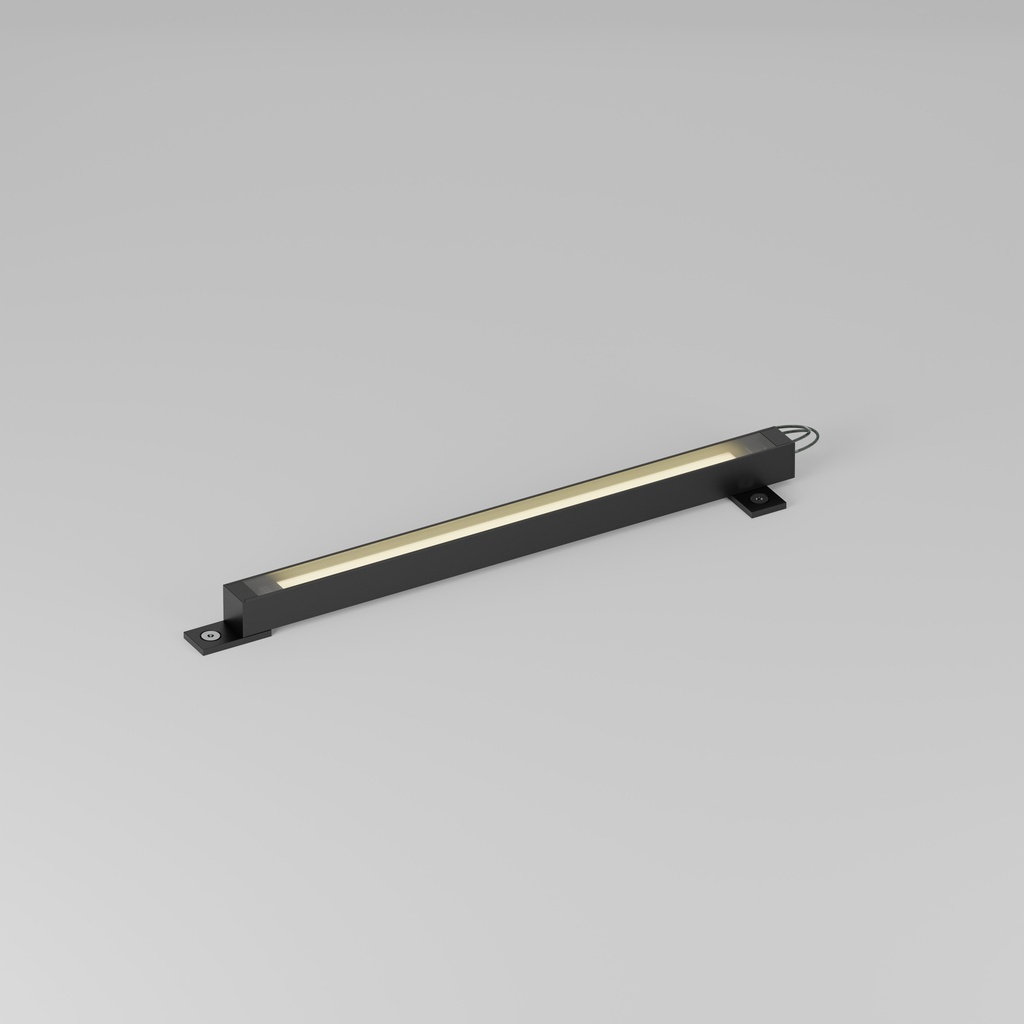

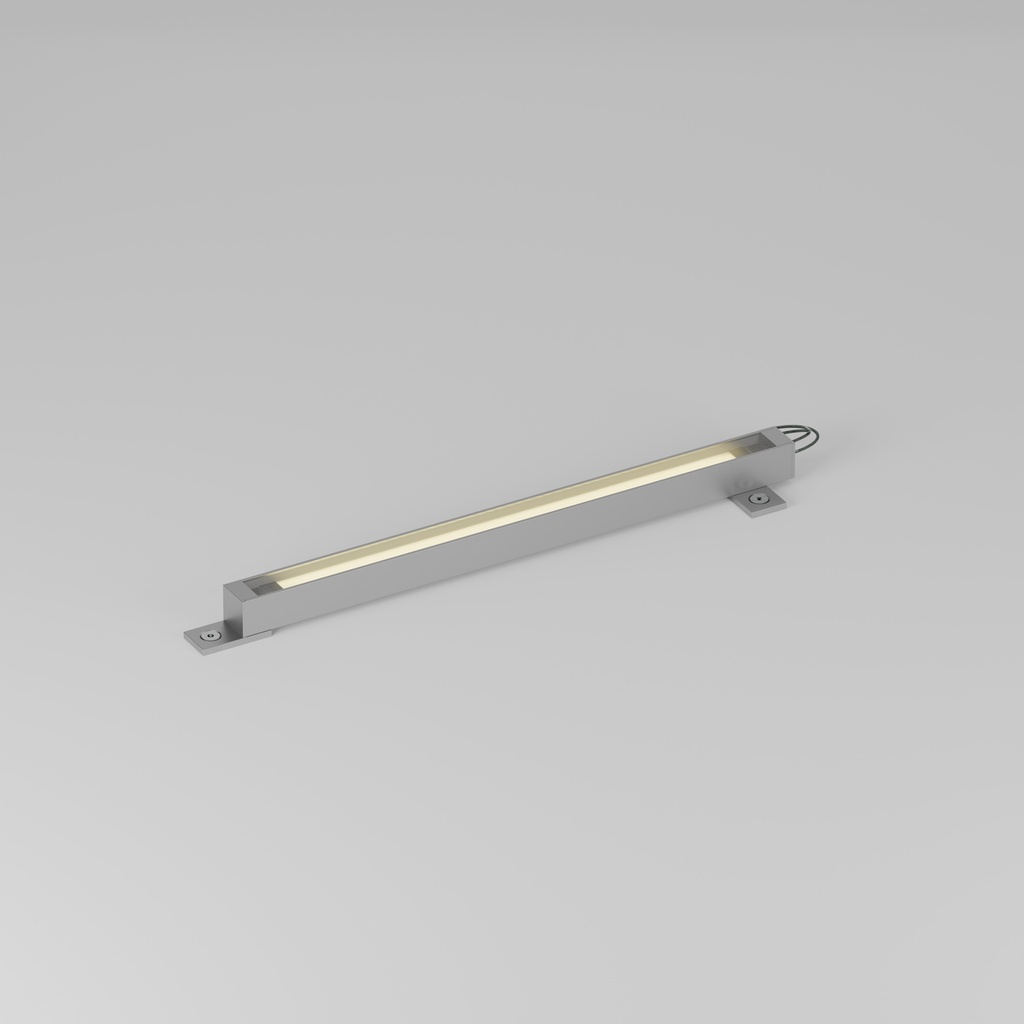

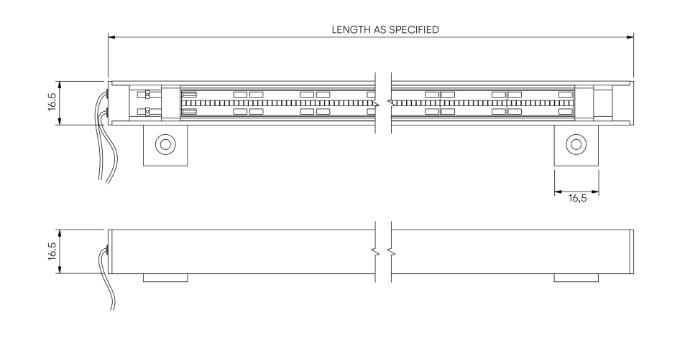

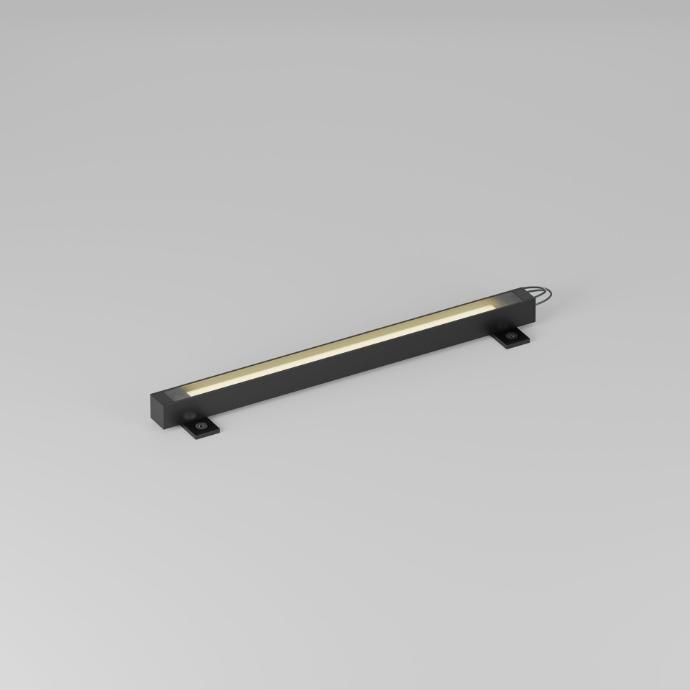

Exterior LED Channel
Linear lighting system, typically for under seat, planter and handrail lighting applications.
Product Description
The Exterior LED Channel is a compact IP66 recycled aluminium extrusion, engineered to provide both subtle accent lighting or deliver brighter illumination within exterior seating, planter or handrail lighting applications.
The innovative extrusion design allows for ease of installation and the product can be offered with either a frosted diffuser with a soft glow effect, or a clear cover for higher output applications.
Custom glare baffles and clamping system options available on request.
Fully encapsulated the product is designed with an innovative anti wick system to avoid water ingress.
Key Features
• Sustainable construction: made from recycled aluminium.
• Innovative mounting system allowing for ease of installation and maintenance.
• High and low output options available with a custom frosted diffuser for a soft lit effect or clear cover for higher output applications.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 90 CRI LEDs.
• Not suitable for in-ground applications.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
exterior led channel - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant voltage 24V DC PSU required
Power
Standard Output LED Strip
High Output LED Strip
16.8W/m
24V
31.2W/m
24V
Technical
Light Source
Standard Output LED Strip
90 CRI
1496lm/m initial output at 3000K 89lm/W
High Output LED Strip
90 CRI
2702lm/m initial output at 3000K 86.6lm/W
Light Distribution
Clear cover 103.4° x 115.1°
Diffuser 112.4° x 110.6°
Lumen Maintenance L90 B10 >54,000 hours
Colour Consistency 2SDCM
IP Rating IP66
IK Rating IK10
Weight 0.314kg/m
Lumen
Maintenance: L90 B10 >54,000 hours
IP Rating: IP20
Weight: 0.314kg/m
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
All files are based on a 500mm lit length. If photometry is required for project specific lengths please contact us.
Standard Output LED Channel
90 CRI (1496lm/m initial output)
Clear Cover
103.4° x 115.1°
Diffuser
112.4° x 110.6°
High Output LED Channel
90 CRI (2702lm/m initial output)
Clear Cover
103.4° x 115.1°
Diffuser
112.4° x 110.6°
This product can accept one of the following attachments:

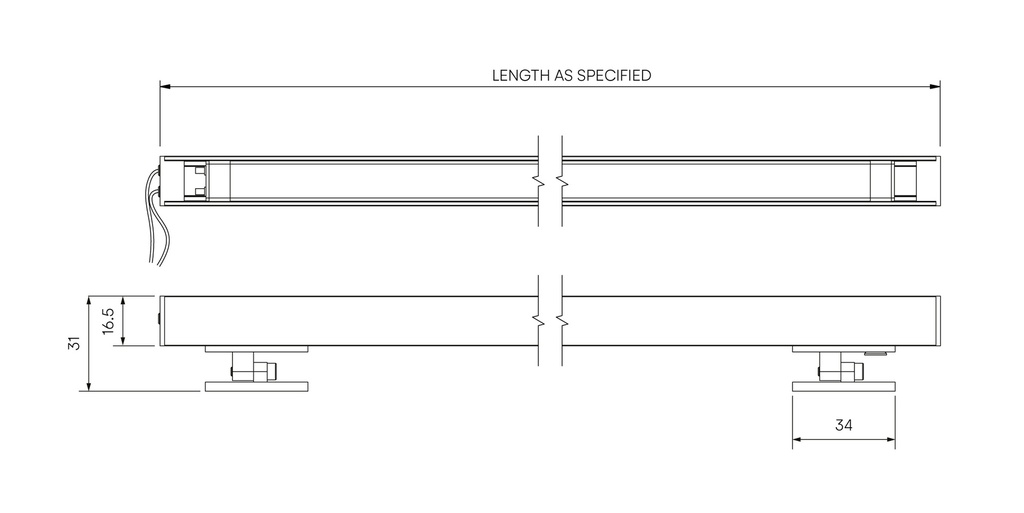

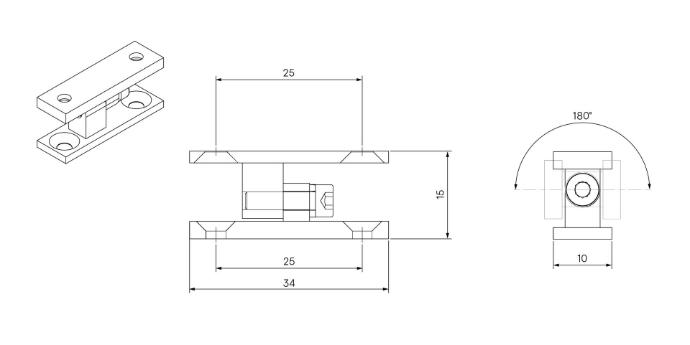

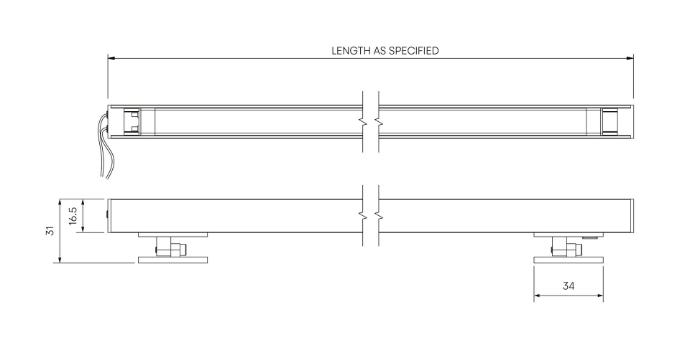

Adjustable angled bracket for LED Channel, allowing channel to be angled up to 180º. (2 hinges per 1m, 3 hinges per 2m).
Order no. STD-000106.
