Croc Type X
High-performance exterior spotlight system, for ceiling and wall mounting to illuminate exterior architectural details and landscape illumination.
Product Description

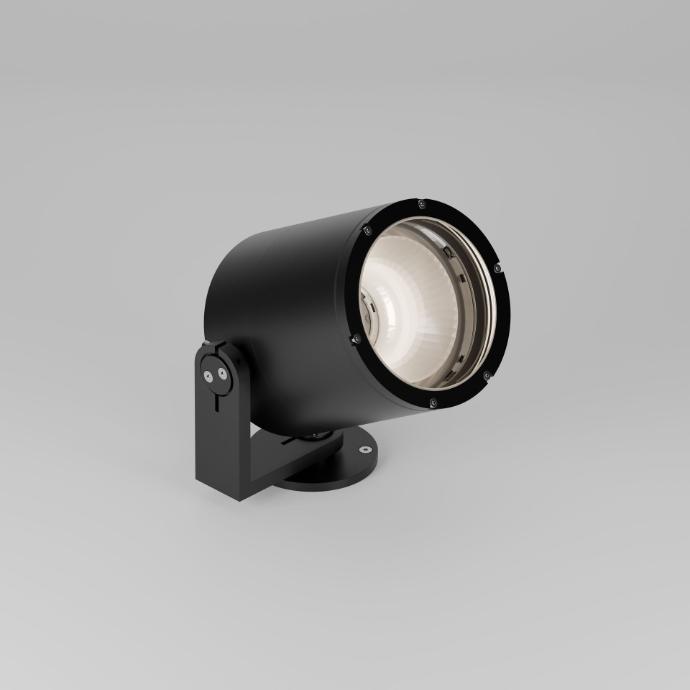

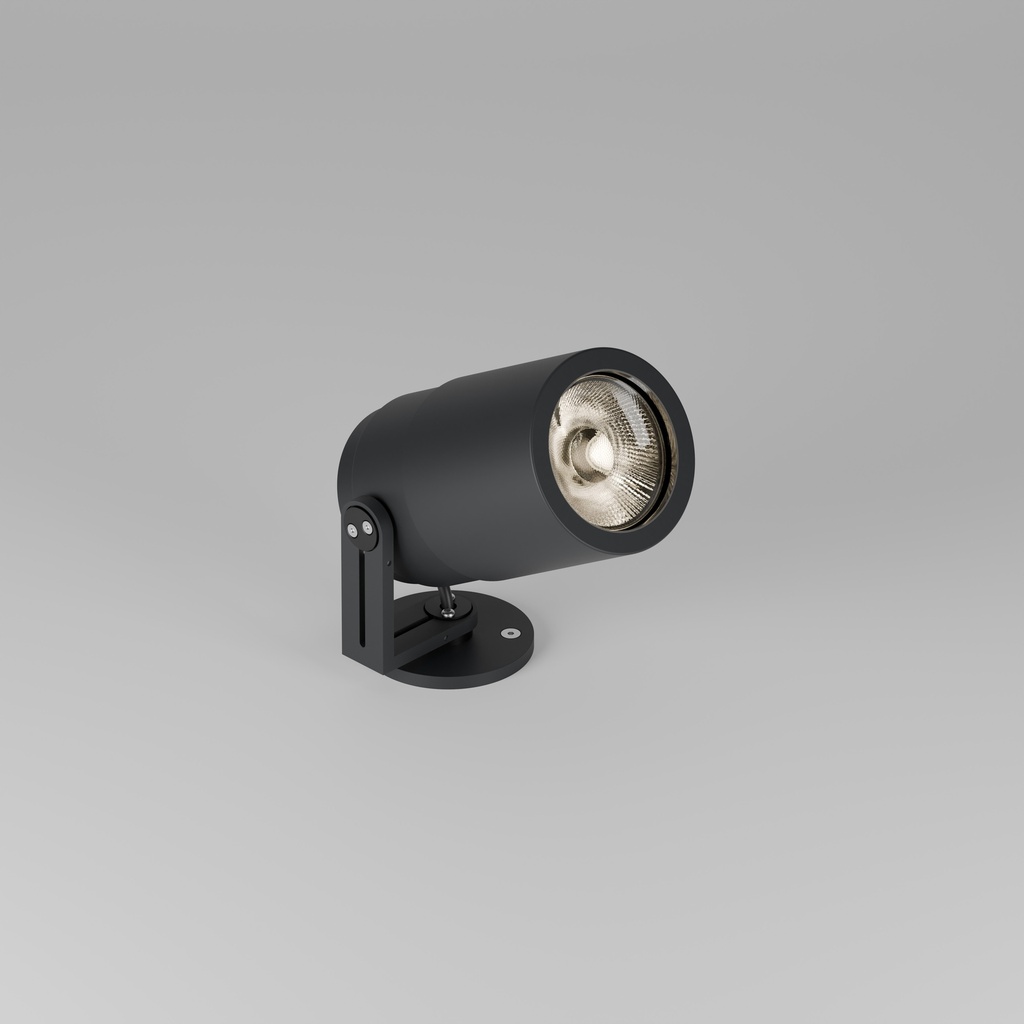

The Croc Type X is a high power IP66 exterior rated, adjustable and lockable spotlight.
Constructed from precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Provided with interchangeable optics from Very Narrow to Wide Flood, additional lenses can be added for glare control or to create elliptical beam spreads.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Fixed optics can be easily swapped from Very Narrow to Flood options, capable of holding up to two additional lens accessories.
• Snoot and Cowl options available.

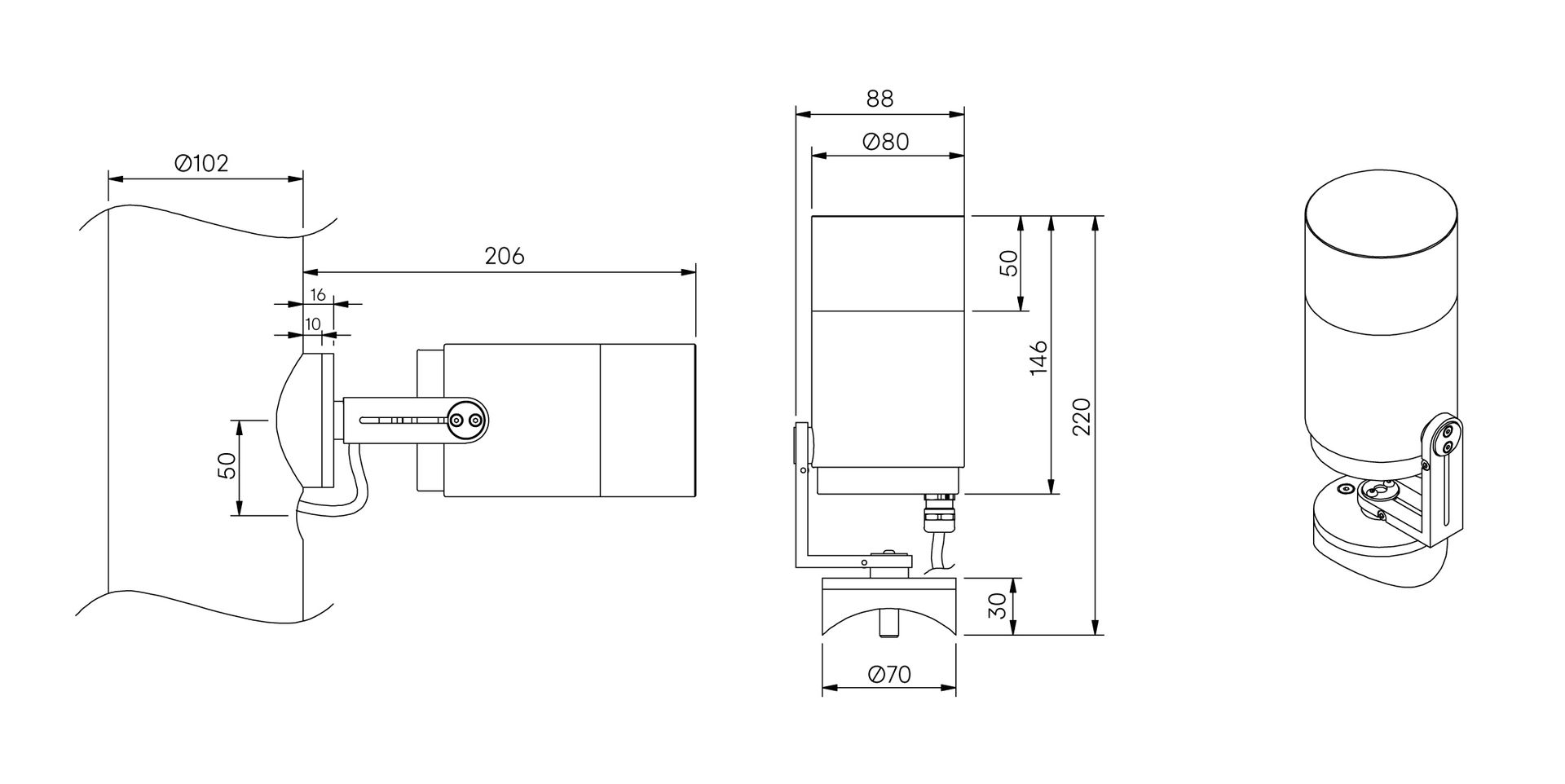

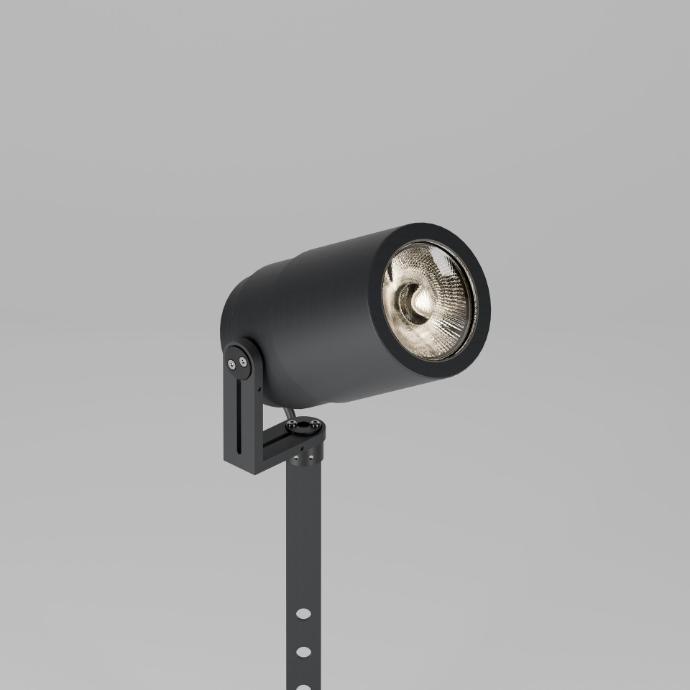

• Tree and Spike mounted options available.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
croc type x - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant current LED driver required
Power
6mm LES COB
9.8mm LES COB
14.5mm LES COB
7.9W
31.6Vf
11.9W
34Vf
19.8W
34.2Vf
Technical
Light Source
6mm LES COB
90 CRI 250mA
840lm initial output at 2700K 107lm/W
873lm initial output at 3000K 111lm/W
939lm initial output at 3500K 119lm/W
978lm initial output at 4000K 124lm/W
95 CRI 250mA
751lm initial output at 2700K 95lm/W
798lm initial output at 3000K 101lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W
9.8mm LES COB
90 CRI 350mA
1433lm initial output at 2700K 120lm/W
1513lm initial output at 3000K 127lm/W
1582lm initial output at 3500K 133lm/W
1620lm initial output at 4000K 136lm/W
95 CRI 350mA
1276lm initial output at 2700K 107lm/W
1341lm initial output at 3000K 113lm/W
1421lm initial output at 3500K 119lm/W
1483lm initial output at 4000K 124lm/W
14.5mm LES COB
90 CRI 600mA
2540lm initial output at 2700K 128lm/W
2580lm initial output at 3000K 130lm/W
2766lm initial output at 3500K 139lm/W
2850lm initial output at 4000K 144lm/W
95 CRI 600mA
2190lm initial output at 2700K 110lm/W
2310lm initial output at 3000K 116lm/W
2490lm initial output at 3500K 119lm/W
2580lm initial output at 4000K 130lm/W
Light Distribution
6mm LES COB
Very Narrow 11.7°
9.8mm LES COB
Narrow 15.2°
Medium 22.7°
Flood 32.4°
Flood 2 43.2°
Wide Flood 60.6°
14.5mm LES COB
Narrow 21.2°
Medium 25.2°
Flood 32.1°
Flood 2 38.9°
Wide Flood 66.2°
Lumen Maintenance L70 B0 F0 50,000 hours
Colour Consistency 1 x 2 SDCM
Colour Maintenance ± 0.003 ∆u’v’
IP Rating IP66
Weight 1.45kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP66
Weight: 1.45kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
9.8mm LES COB
90 CRI (1513lm initial output)
Narrow 15.2°
Medium 22.7°
Flood 32.4°
Flood 2 43.2°
Wide Flood 60.6°
9.8mm LES COB
95 CRI (1341lm initial output)
Narrow 15.2°
Medium 22.7°
Flood 32.4°
Flood 2 43.2°
Wide Flood 60.6°
14.5mm LES COB
90 CRI (2580lm initial output)
Narrow 21.2°
Medium 25.2°
Flood 32.1°
Flood 2 38.9°
Wide Flood 66.2°
14.5mm LES COB
95 CRI (2310lm initial output)
Narrow 21.2°
Medium 25.2°
Flood 32.1°
Flood 2 38.9°
Wide Flood 66.2°
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives

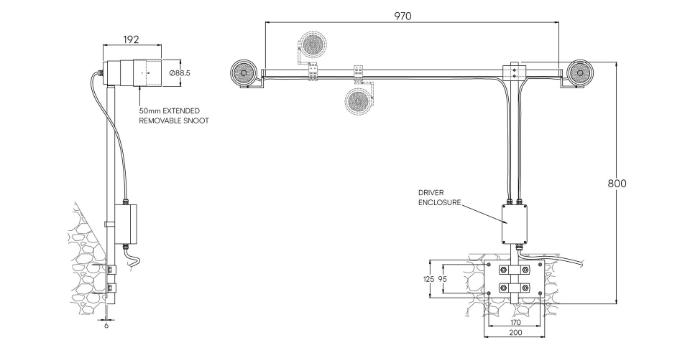

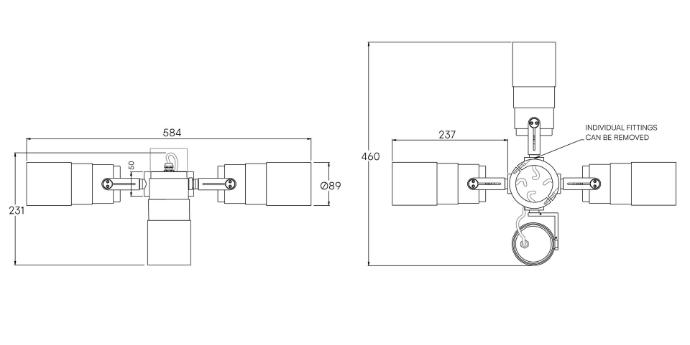

We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000392
Soft spread lens to product a soft elliptical beam
Order no. ITY-000430
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000431
Diffuser lens used for softening and widening beams
Order no. ITY-000429
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000434
This product can accept one of the following attachments:
Removeable slash cut snoot
Order no. ITY-002612

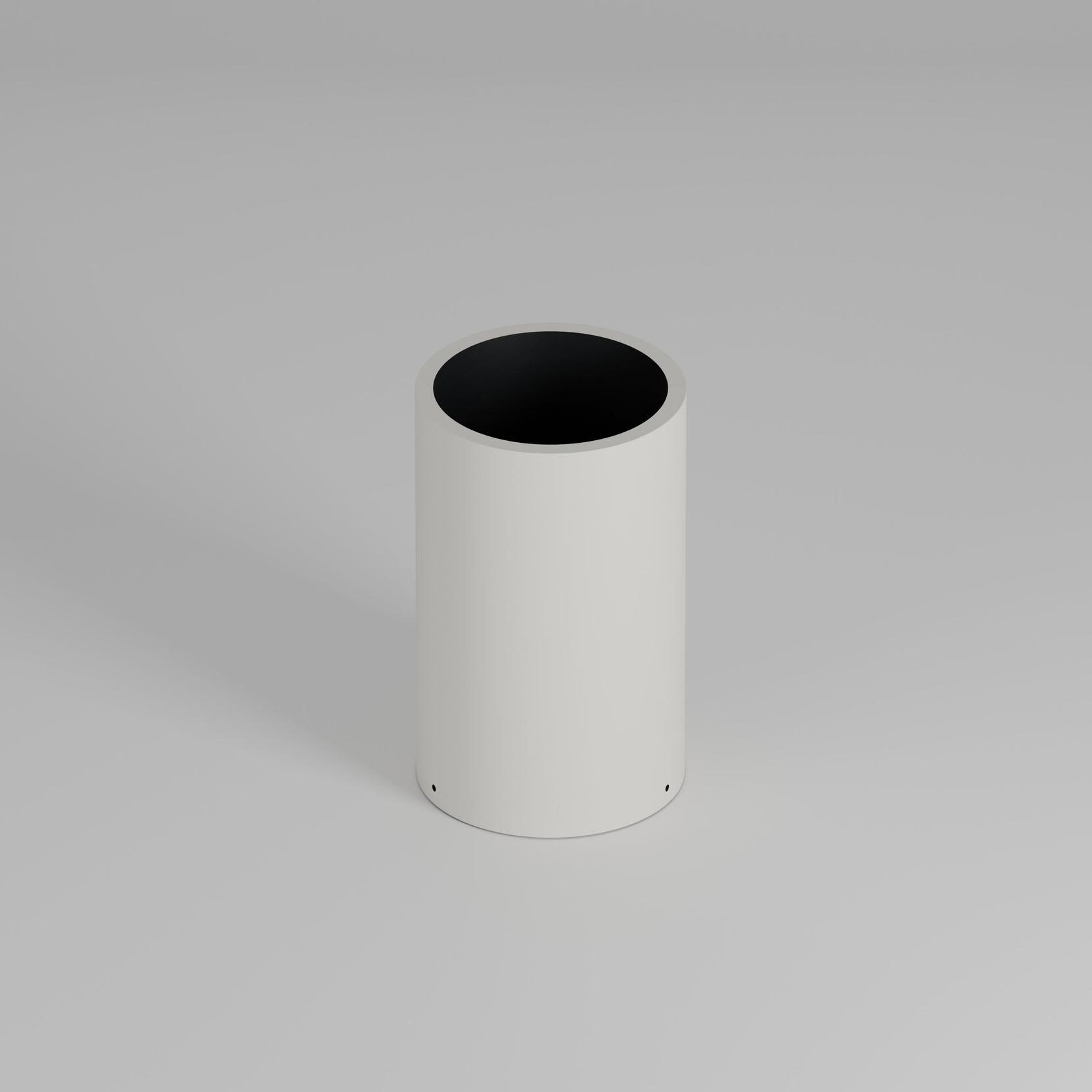

Removeable 65mm extended cowl.
Order no. ITY-003667
