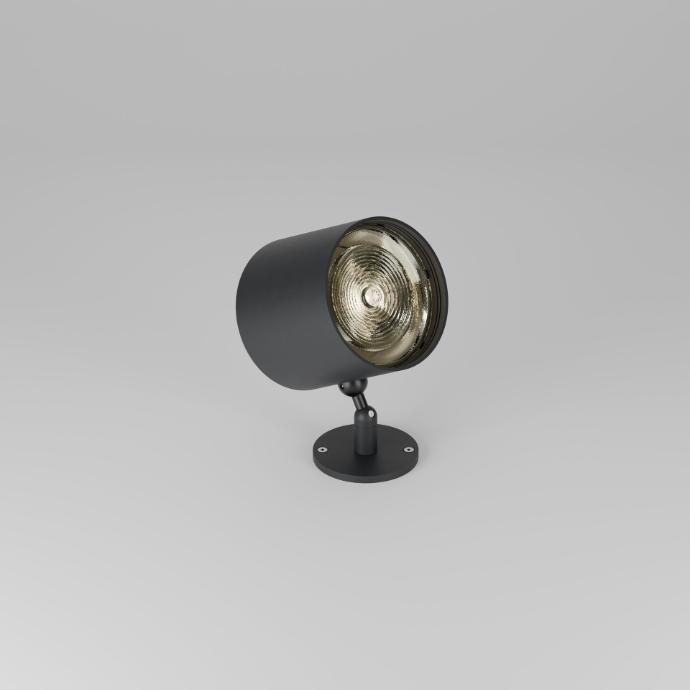

ZTA.110.Surface
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.110.Surface is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
The high-performance LED module boasts up to 98 CRI and comes with Interchangeable optics ranging from Very Narrow to Wide Flood options.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.

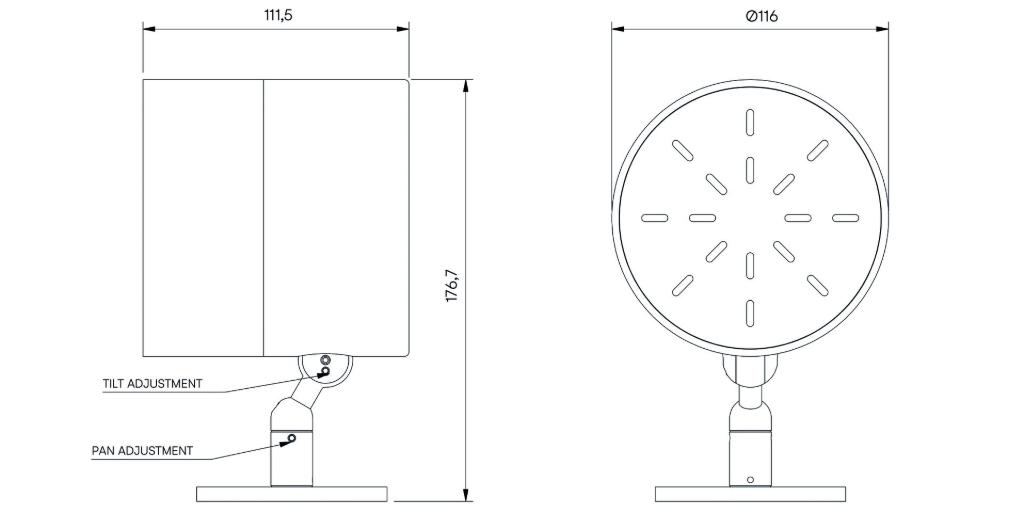

• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to two lens accessories and various attachments.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
6mm LES output up to 2130lm initial
14mm LES output up to 4482lm initial
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.110.Surface is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
The high-performance LED module boasts up to 98 CRI and comes with Interchangeable optics ranging from Very Narrow to Wide Flood options.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to two lens accessories and various attachments.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.110.SURFACE - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
6mm LES COB
14mm LES COB
Initial output
SL90 17.6W 35.1Vf at 500mA
2700K • 1972lm • 112lm/W
3000K • 2054lm • 117lm/W
3500K • 2074lm • 118lm/W
4000K • 2130lm • 121lm/W
SL98 23.2W 38.6Vf at 600mA
2700K • 1845lm • 80lm/W
3000K • 1971lm • 85lm/W
3500K • 1971lm • 85lm/W
4000K • 2081lm • 90lm/W
SL90 30.7W 36.1Vf at 850mA
2700K • 4232lm • 138lm/W
3000K • 4431lm • 144lm/W
3500K • 4482lm • 146lm/W
4000K • 4455lm • 145lm/W
SL98 32.7W 34.4Vf at 950mA
2700K • 3542lm • 108lm/W
3000K • 3784lm • 116lm/W
3500K • 3888lm • 119lm/W
4000K • 3973lm • 122lm/W
Light distribution
Narrow 10.5°
Medium 24.7º
Flood 34.1º
Wide Flood 53.9º
Extra Wide Flood 77.2º
Narrow 18.9°
Medium 24.6º
Flood 35.3º
Wide Flood 59.8º
Extra Wide Flood 78.4º
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
1.8kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 1.8kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
SL90 (2054lm initial output at 3000K)
6mm LES COB
SL98 (1971lm initial output at 3000K)
14mm LES COB
SL90 (4431lm initial output at 3000K)
14mm LES COB
SL98 (3784lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
Accessories
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000391
Soft spread lens to product a soft elliptical beam
Order no. ITY-000426
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000427
Diffuser lens used for softening and widening beams
Order no. ITY-000426
Clear lens can be used as protection from dirt/debris
Order no. ITY-000424
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000396
