Very Narrow Iris
order code: very-narrow-iris.colourtemp.optic.finish
example: very-narrow-iris.3000K.very narrow.clear anodised
IP66 rated recessed lockable eyeball for use with MSL Star PCB. Finishes almost flush with the mount surface. Supplied with Very Narrow optic (measured 4.8º). Ø64mm cutout required.
Photometry is commonly available for currently preferred light sources. Equivalent and alternative light sources can be used depending on availability or desired specification. In this way, Stoane Lighting can react quickly to supply chain issues and tailor products to specific customer requirements.
Light Source Type
- Discrete LED
- IP Rated for Exterior Use
- Machined Aluminium
- Toughened Glass
- MSL Star (1 x Osram Oslon Square)
- Min. 95 (typ.97)
Initial Output (Wattage)
- 100lm at 350mA (1W)
- 137lm at 500mA (1.4W)
- 181lm at 700mA (2W)
- Painted (bezel only)
- Mains Dim
- Remote Constant Current LED driver required
- 2.5mm Allen key required
Pan & Tilt
- ±25º Tilt
- Very Narrow
- 0.2 kg
This area of a product's page is where you will find results of TM65, TM66, and others as we and our industry progress. For more information on TM65 and TM66, please visit the Environmental page here.
CIBSE’s TM65 provides a calculation methodology to assess the embodied carbon in products linked to mechanical, electrical and public health (MEP) systems.
If you have a TM66 requirement for your project please contact us [email protected]
These files represent the highest available initial output at 700mA (181lm) in 3000K. Other colour temperatures are available.
- Very Narrow

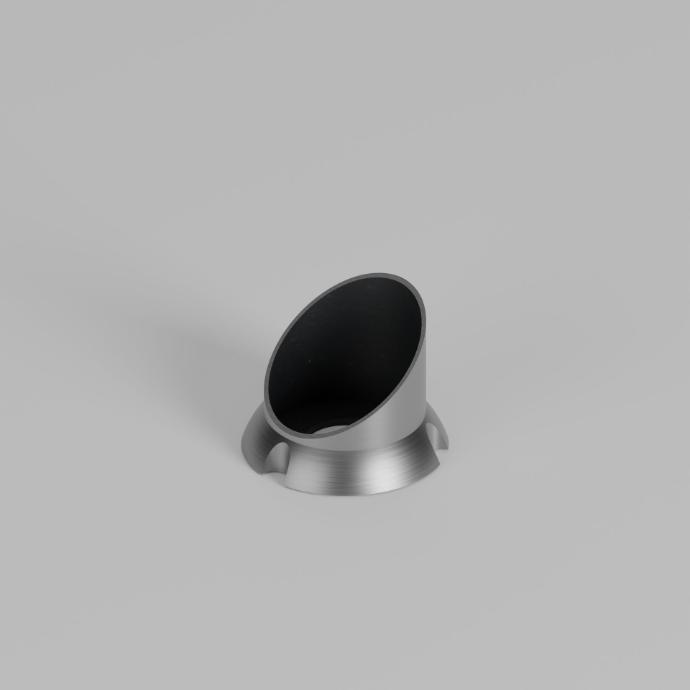

Effect:Full snoot or slash cut snoot for glare protection
