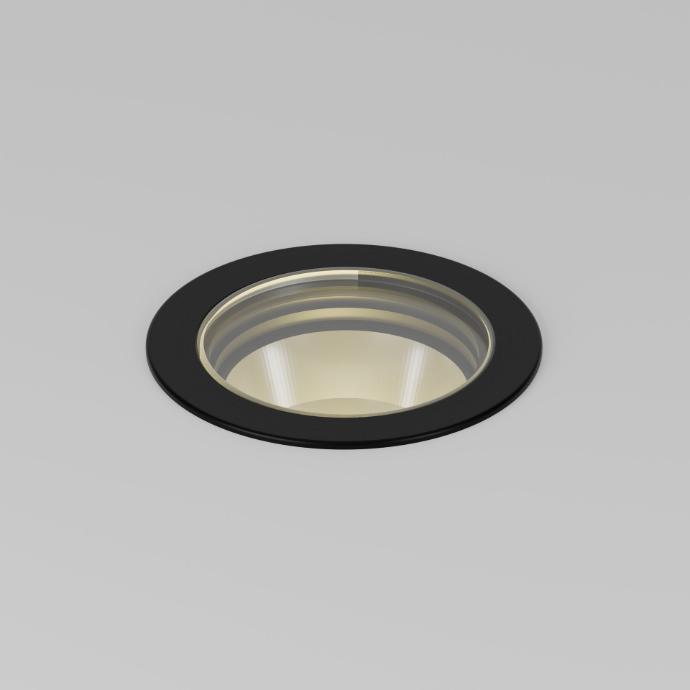

Mole Type X

https://www.stoanelighting.com/web/image/product.template/10333/image_1920?unique=81000df
Exterior in-ground recessed fixed uplighter, for enhancing architectural details, gardens and pathways.

Product Description
The Mole Type X is a high output IP66 rated fixed exterior up light, designed to highlight textures, add depth to trees, sculptures, facades and other outdoor features. Perfect for both commercial and residential applications, ideal for bringing landscapes to life after dark.

Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request. Includes toughened glass lens.
• Interchangeable optics to allow Very Narrow to Wide Flood with the addition of secondary lenses to create elliptical beam options.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
• First fix Installation sleeve available (separately) for mounting.

380.0 GBP £ 380.00

£ 380.00

Not Available For Sale

  • Light source
  • CCT
  • CRI
  • Beam
  • Finish
    Please contact us for custom finishing requirements
  • Mounting Method
  • Secondary Lensing Accessories

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000033-0032
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

mole type x

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

Mole Type X - 2.7​​

LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here. ​




Downloads


Mole Type X Instructions

PDF​​​​

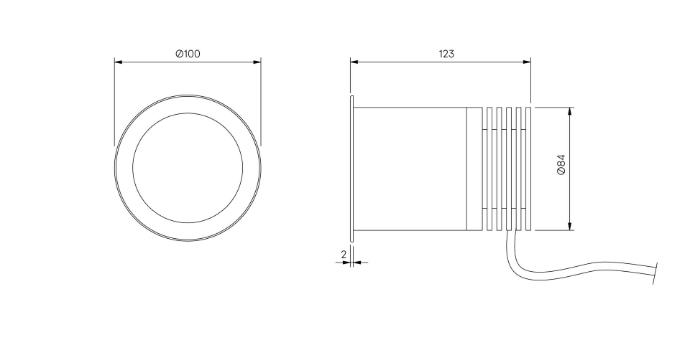

Mole Type X Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
6mm LES COB
9.8mm LES COB
14.5mm LES COB

7.9W

31.6Vf

11.9W

34Vf

19.8W

34.2Vf

Technical

Light Source

6mm LES COB

90 CRI 250mA

840lm initial output at 2700K 107lm/W
873lm initial output at 3000K 111lm/W
939lm initial output at 3500K 119lm/W
978lm initial output at 4000K 124lm/W

95 CRI 250mA

751lm initial output at 2700K 95lm/W
798lm initial output at 3000K 101lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W

9.8mm LES COB

90 CRI 350mA

1433lm initial output at 2700K 120lm/W
1513lm initial output at 3000K 127lm/W
1582lm initial output at 3500K 133lm/W
1620lm initial output at 4000K 136lm/W

95 CRI 350mA

1276lm initial output at 2700K 107lm/W
1341lm initial output at 3000K 113lm/W
1421lm initial output at 3500K 119lm/W
1483lm initial output at 4000K 124lm/W

14.5mm LES COB

90 CRI 600mA

2835lm initial output at 2700K 128lm/W
2580lm initial output at 3000K 130lm/W
2766lm initial output at 3500K 139lm/W
2850lm initial output at 4000K 144lm/W

95 CRI 600mA

2190lm initial output at 2700K 110lm/W
2310lm initial output at 3000K 116lm/W
2490lm initial output at 3500K 119lm/W
2580lm initial output at 4000K 130lm/W

Light Distribution


6mm LES COB

Very Narrow ​11.7°

9.8mm LES COB

Narrow ​​​15.2°
Medium ​​​22.7°
Flood ​​ ​​32.4°
Flood 2 ​​43.2°
Wide Flood ​60.6°​

14.5mm LES COB

Narrow ​21.2°
Medium ​​25.2°
Flood ​​32.1°
Flood 2 ​38.9°
Wide Flood 66.2°​

Lumen Maintenance L70 B0 F0 50,000 hours

Colour Consistency ​​1 x 2 SDCM

Colour Maintenance ± 0.003 ∆u’v’

IP Rating IP66

IK Rating IK10

Weight ​​1kg

Lumen
Maintenance
: L70 B0 F0 50,000 hours

Colour
Consistency
1 x 2 SDCM

Colour Maintenance± 0.003 ∆u’v’

IP Rating: IP20

Weight: 1kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

6mm LES COB
90 CRI (873lm initial output)

6mm LES COB
95 CRI (798lm initial output)

Photometry

To access our photometry files please view this page from a desktop device.


Derivatives

We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.


Accessories

This product can accept up to 2 x lenses and louvres:

Honeycomb louvre for glare control


Order no. ITY-000392

Soft spread lens to product a soft elliptical beam


Order no. ITY-000430

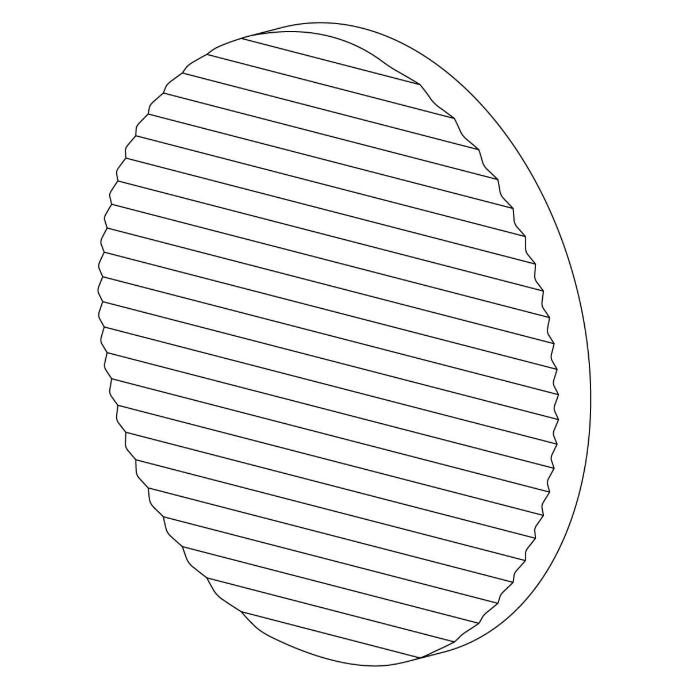

Sharp spread lens to produce a pronounced elliptical beam

Order no. ITY-000431

Diffuser lens used for softening and widening beams

Order no. ITY-000429

Stipple lens used for softening beams and removing lens artifacts

Order no. ITY-000434
