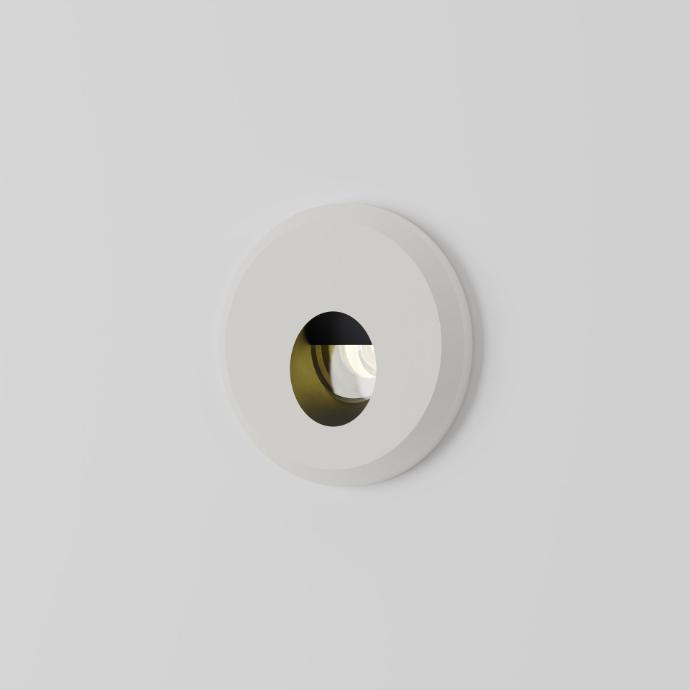

Bulwark

https://www.stoanelighting.com/web/image/product.template/10358/image_1920?unique=3228779
Exterior recessed wall light, for enhancing pathways, stairs and decks.

Product Description
The Bulwark is a Marine Grade miniature IP66 rated exterior recessed wall light, designed to provide a low level soft directional light to pathways, stairs and ship decks.
Including glare baffle to avoid upward light spill.
Supplied with install sleeve and snap-on stainless steel bezel. Including an acetal mounting sleeve.

Key Features
• Sustainable construction: made from Stainless Steel, recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Fixed focus optic with soft asymmetric light distribution and glare baffle.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.
• First fix acetal installation sleeve

300.0 GBP £ 300.00

£ 300.00

Not Available For Sale

  • CCT
  • Finish
    Please contact us for custom finishing requirements

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000076-0008
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

bulwark

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

Bulwark - 2.6​​



LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​




Downloads


Bulwark Instructions

PDF​​​​

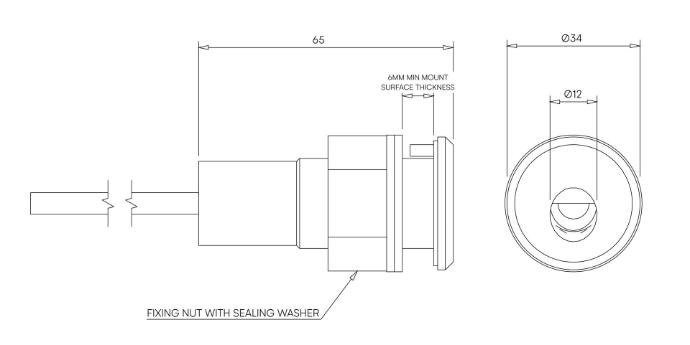

Bulwark Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
1.4W

2.85Vf

Technical

Light Source

Type S

95 CRI 500mA

137lm initial output at 3000K 97.9lm/W



Light Distribution

Asymmetric ​41.2° x 24.6°



Lumen Maintenance L70 B50 >66,000 hours

IK Rating ​​IK10

IP Rating ​​IP66

Weight ​​ 0.147kg

Lumen
Maintenance
: L70 B50 >66,000 hours

IP Rating: IP66

Weight: 0.147kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

95 CRI (137lm initial output)

Photometry

To access our photometry files please view this page from a desktop device.
