Billet

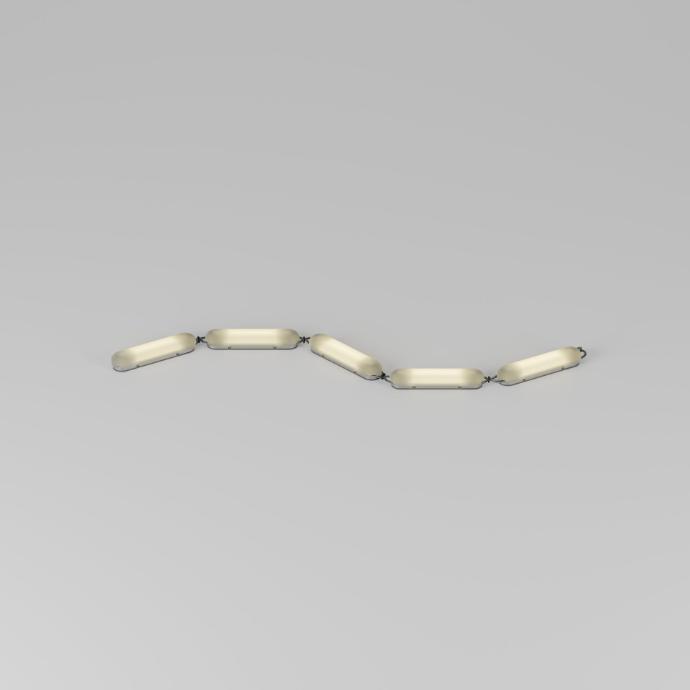

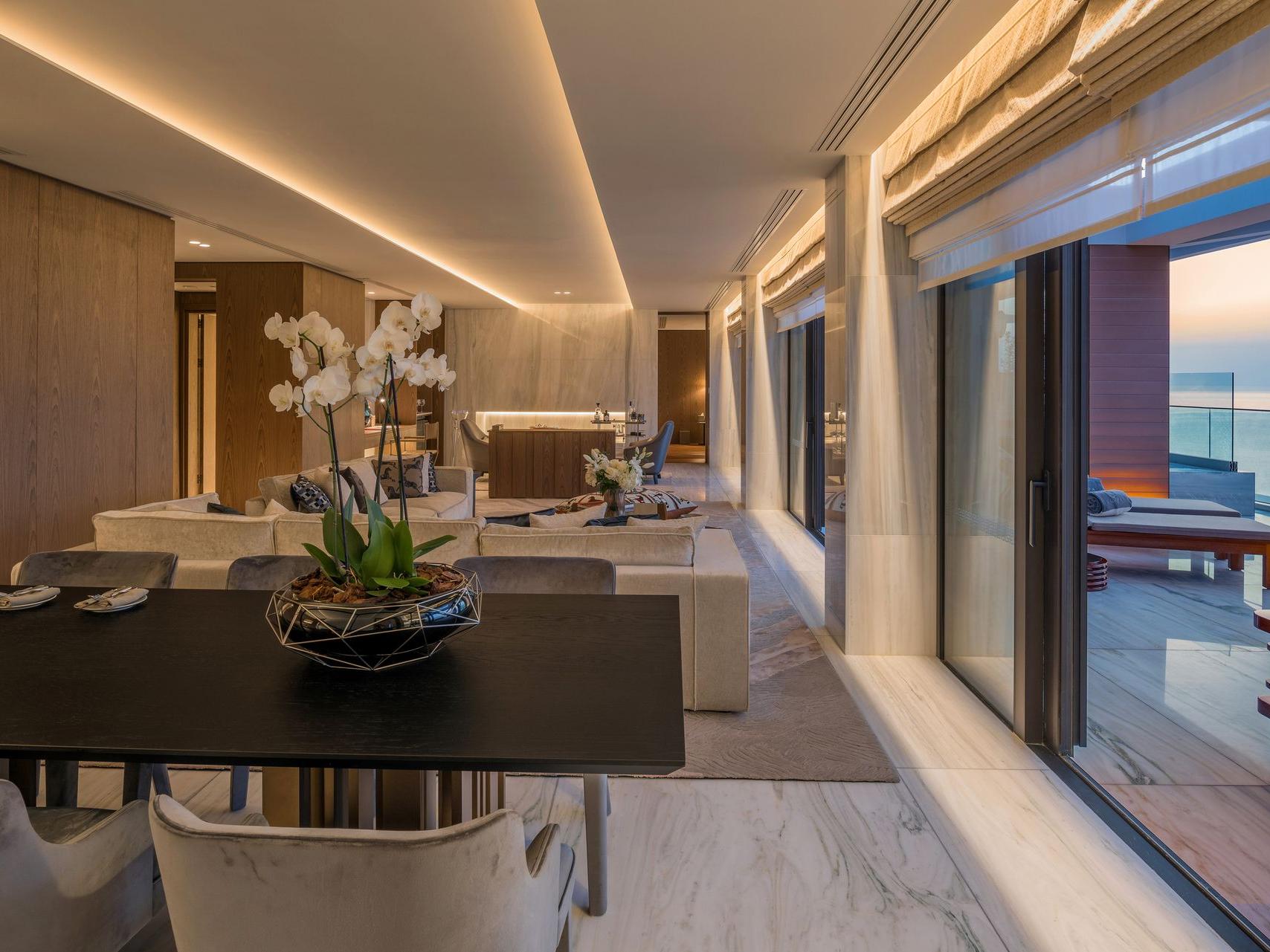

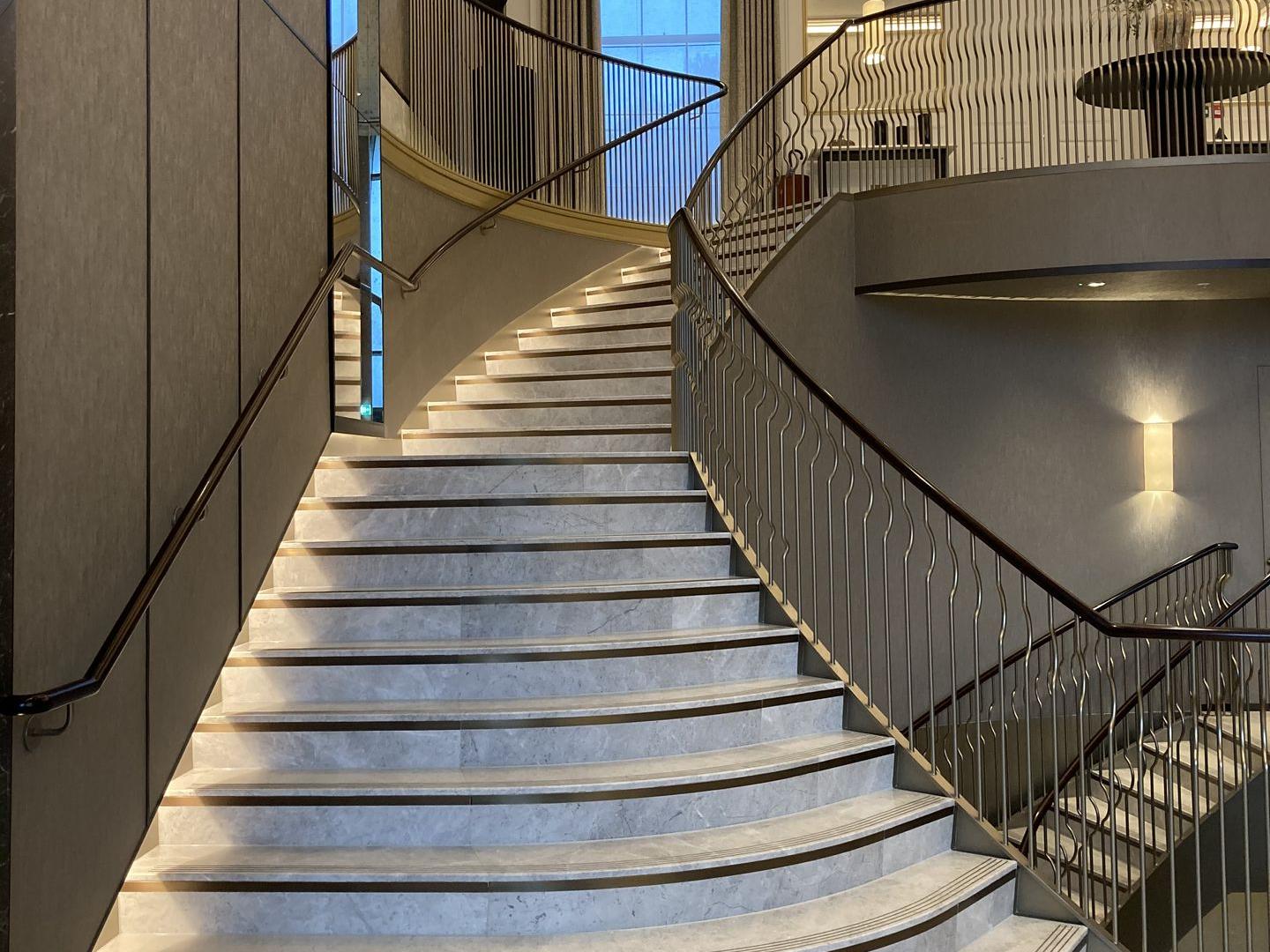

Flexible, modular linear lighting system for cove and handrail lighting applications.
Product Description
The Billet is a compact flexible linear lighting system, engineered to provide both subtle accent lighting or deliver brighter illumination within cove or handrail lighting applications. Its compact minimalist form allows it to blend invisibly within architectural structures and it provides a soft wash of light via it’s custom frosted diffuser.
The innovative design allows for ease of installation and maintenance via magnetic mounting pads and the modular componentry allows for easer of re manufacturability versus typical flexible linear solutions.
Key Features
• Sustainable construction: made from recycled aluminium.
• Modular design allowing for ease of remanufacture versus typical flexible linear solutions.
• Innovative magnetic mounting system allowing for ease of installation and maintenance.
• High and low output options available with a custom frosted diffuser for a soft lit effect.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 90 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Downloads
Service Commitment
Electrical
Supply
Remote constant voltage 24V DC PSU required
Power
Standard Output LED Strip
High Output LED Strip
0.42W per Billet
24V
0.78W per Billet
24V
Technical
Light Source
Standard Output LED Strip
90 CRI
per Billet (25mm lit length)
37lm initial output at 3000K 89lm/W
High Output LED Strip
90 CRI
per Billet (25mm lit length)
67lm initial output at 3000K 86.6lm/W
Light Distribution
Diffuse 111.4° x 93.8°
Lumen Maintenance L90 B10 > 54,000 hours
Colour Consistency 2SDCM
IP Rating IP20
Weight 9g per Billet
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.39kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
The below photometry represents the output from a single LED Billet (25mm lit length);
