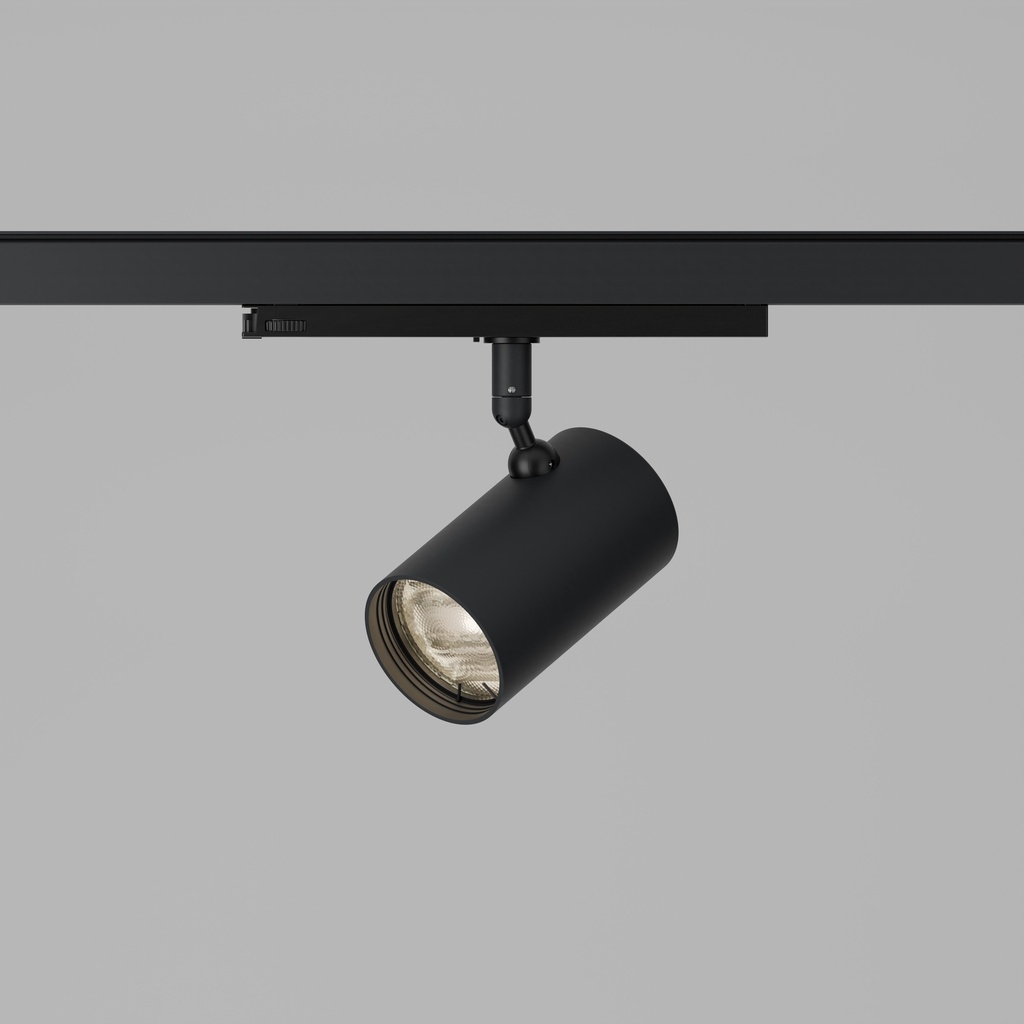

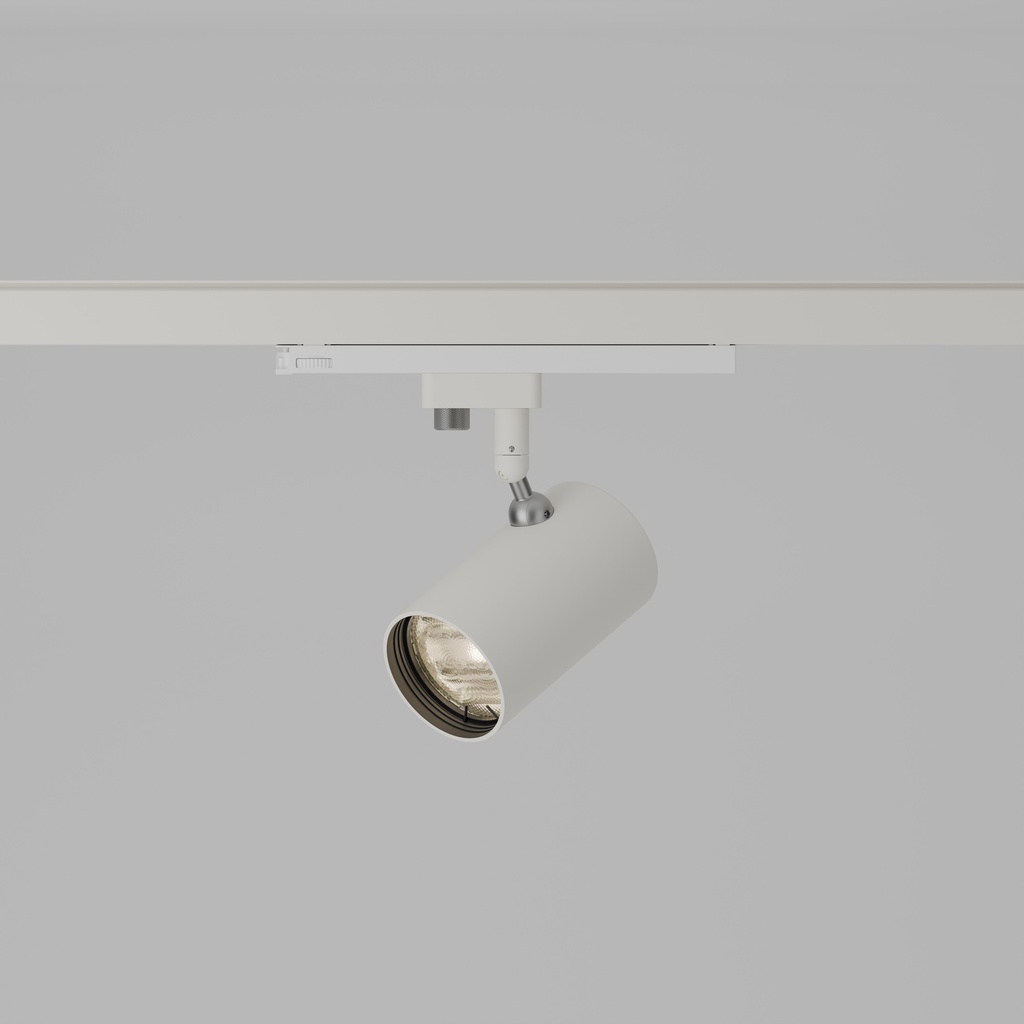

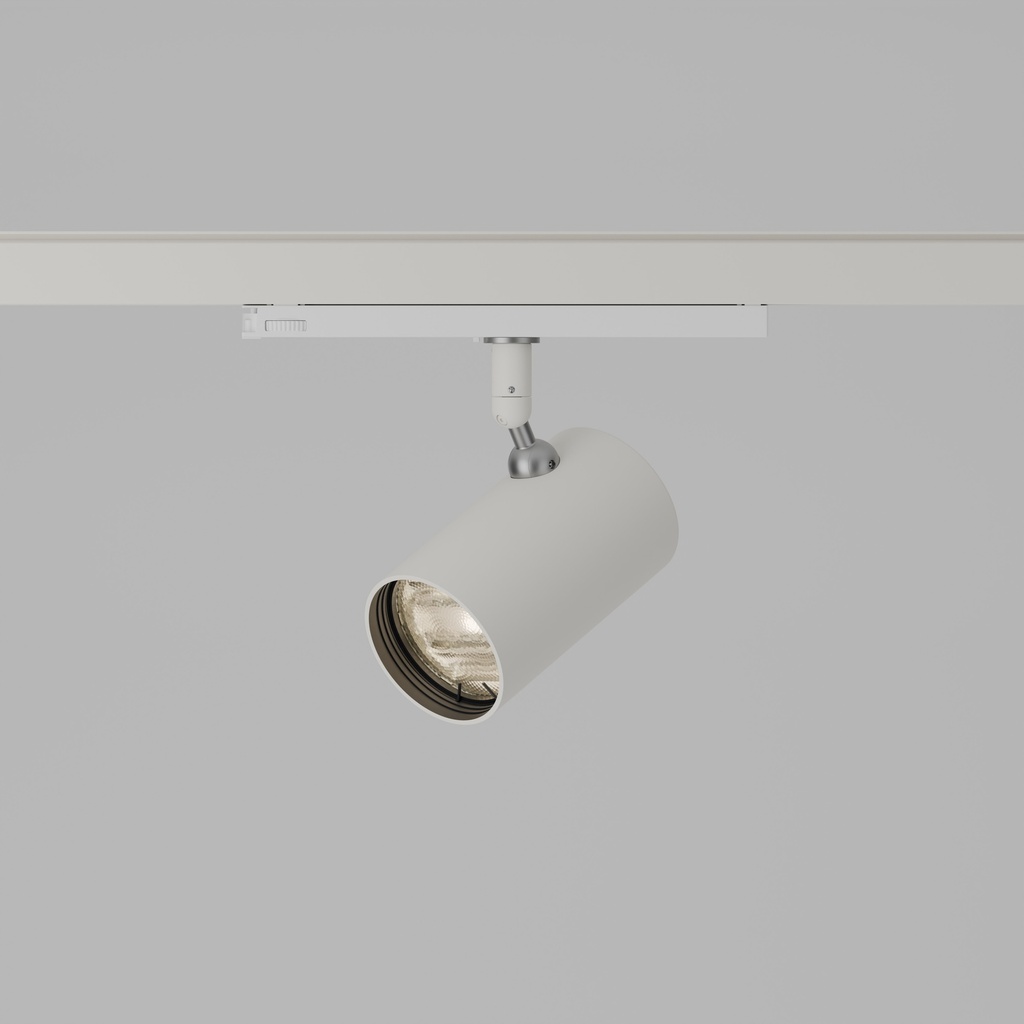

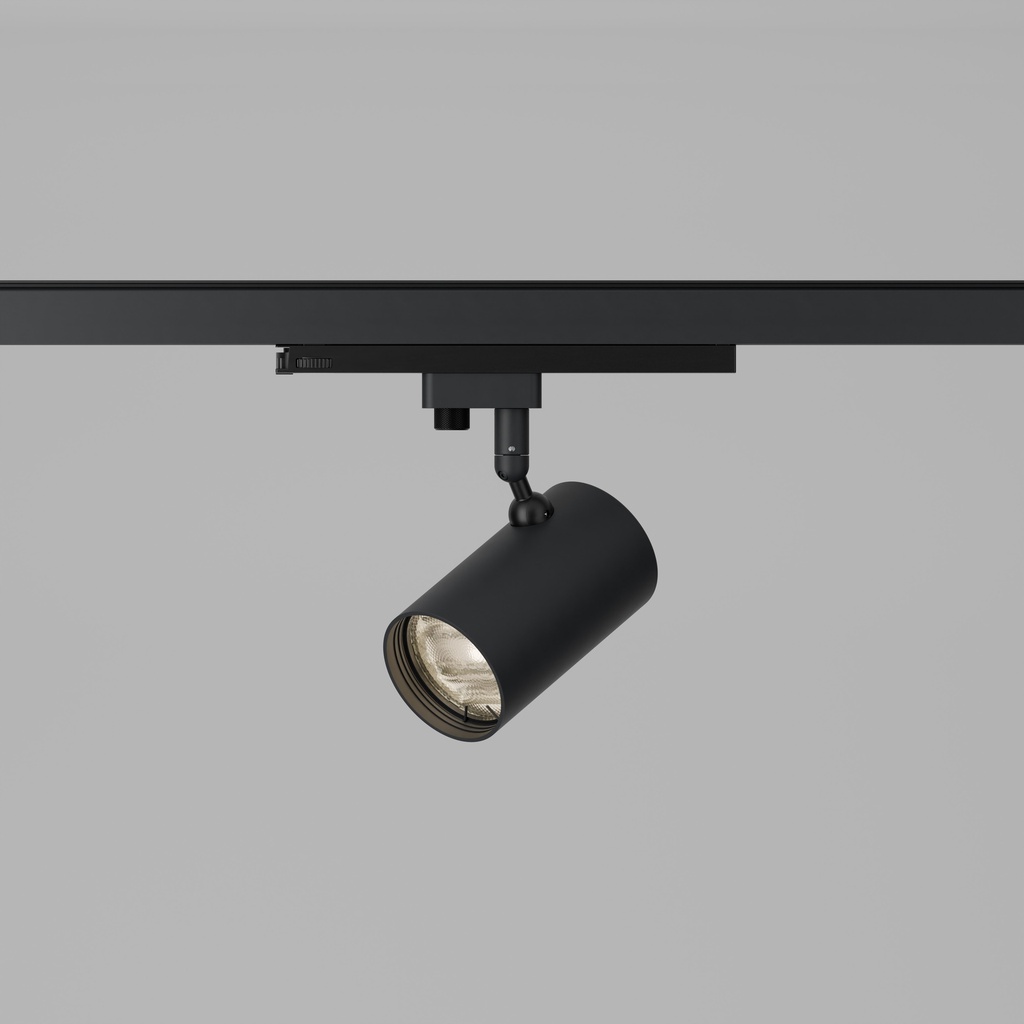

ZTA.70.Mains Track.Wall Wash
Modular high-performance, mains track-Mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.70.Mains Track.Wallwash is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Compatible with 3-circuit adapters for 120-277V Stucchi, Eutrac, Global Pulse, and other track systems, this spotlight includes integral dimming control gear.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.

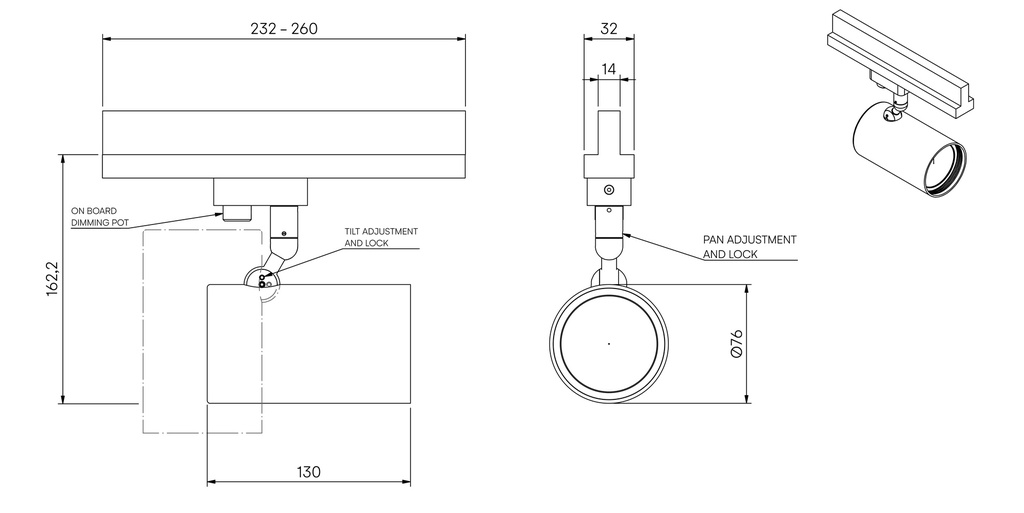

• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• Broad compatibility: 3-circuit adapter supports multiple track systems (Stucchi, Eutrac, Global Pulse).
• Advanced dimming options: on-board, DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 98 CRI LEDs.
• Customisable accessories: Can house up to two lens accessories and various attachments.
• Ceiling mounting only: designed exclusively for ceiling installations.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.70 Mains Track - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
230V/240V via 3 circuit track
Power
23.7W
33.9Vf
Technical
Light Source
14.5mm LES COB
90 CRI 700mA
2888lm initial output at 2700K 122lm/W
3066lm initial output at 3000K 129lm/W
3280lm initial output at 3500K 138lm/W
3387lm initial output at 4000K 143lm/W
95 CRI 700mA
2602lm initial output at 2700K 110lm/W
2745lm initial output at 3000K 116lm/W
2959lm initial output at 3500K 125lm/W
3066lm initial output at 4000K 129lm/W
Light Distribution
Wall Wash 77.4°x35.7°
Lumen Maintenance L70 B0 F0 50,000 hours
Colour Consistency 1 x 2 SDCM
Colour Maintenance ± 0.003 ∆u’v’
IP Rating IP20
Weight 0.9kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.39kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
14.5mm LES COB
90 CRI (2580lm initial output)
14.5mm LES COB
95 CRI (2310lm initial output)
Photometry
To access our photometry files please view this page from a desktop device.
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Soft spread lens to product a soft elliptical beam
Order no. ITY-000430
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000431
