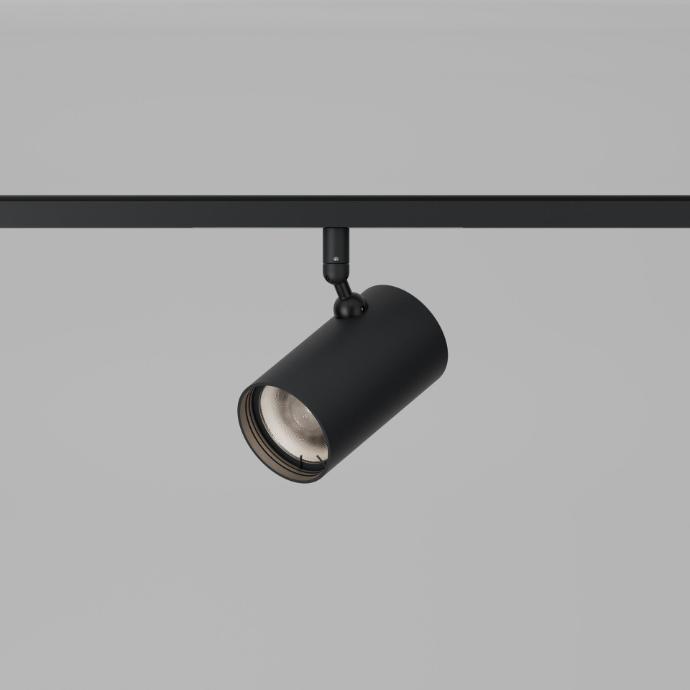

ZTA.70.LV Track

https://www.stoanelighting.com/web/image/product.template/10426/image_1920?unique=47025bd
Modular high-performance, low voltage track-mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.70.LV Track is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Compatible with 48V Stucchi Multitsystem EVO track, this spotlight includes integral dimming control gear.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.

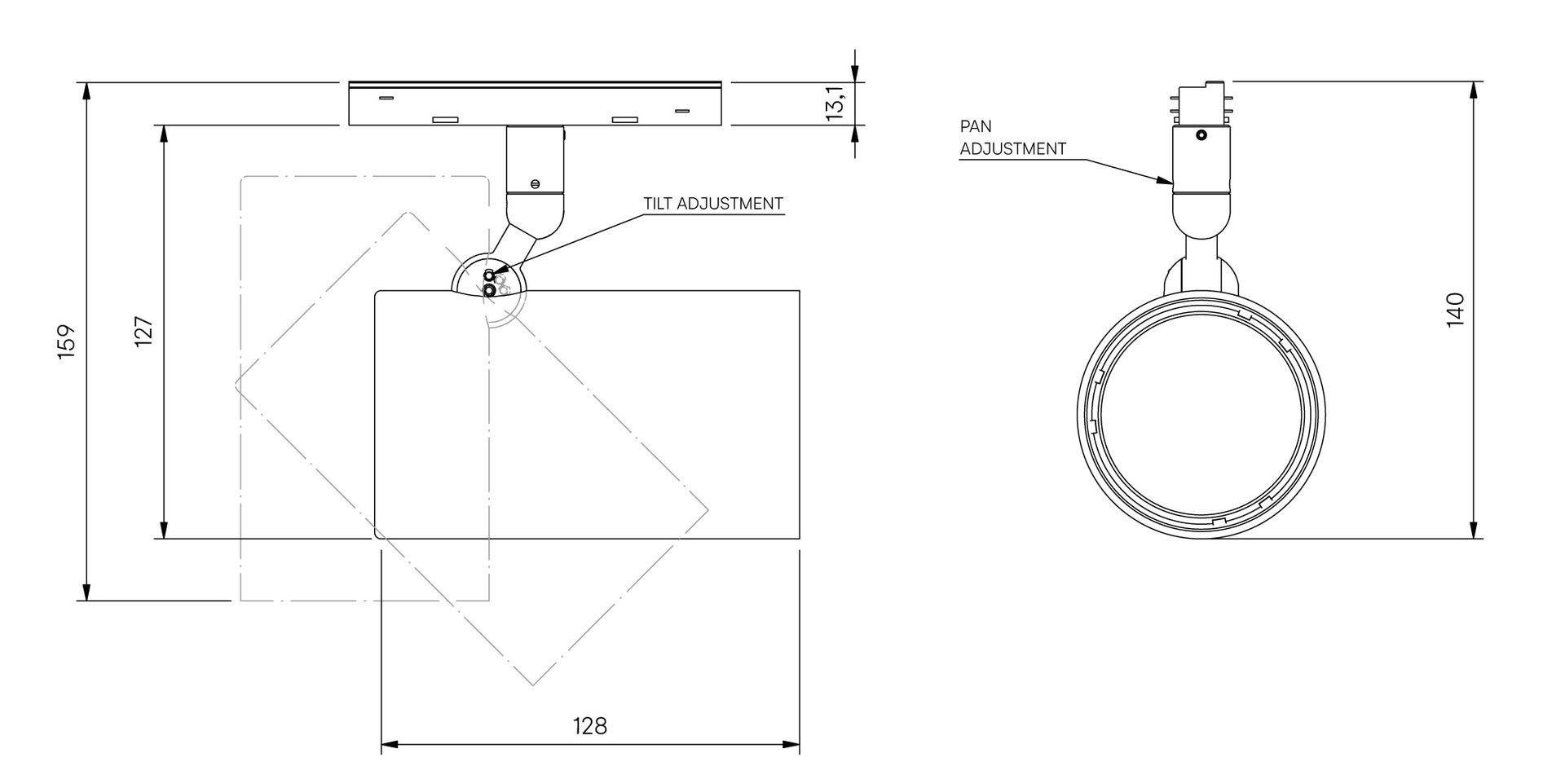

• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to two lens accessories and various attachments.
• Ceiling mounting only: designed exclusively for ceiling installations.

430.0 GBP £ 430.00

£ 430.00

Not Available For Sale

  • Light source
  • CCT
  • CRI
  • Beam
  • Finish
  • Track adaptor colour
  • Dimming
  • Attachments
  • Secondary Lensing Accessories

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000266-0033
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

ZTA.70.LV Track​​​​​


TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

ZTA.70.LV Track - 2.7​​


LCA and EPD​

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​​​​​​​​




Service Commitment




Electrical

Supply


48V DC supply to Stucchi Multisystem EVO track

Power
6mm LES COB
9.8mm LES COB
14.5mm LES COB

7.9W

31.6Vf

11.9W

34Vf

23.7W

33.9Vf

Technical

Light Source

6mm LES COB

90 CRI 250mA

840lm initial output at 2700K 107lm/W
873lm initial output at 3000K 111lm/W
939lm initial output at 3500K 119lm/W
978lm initial output at 4000K 124lm/W

95 CRI 250mA

751lm initial output at 2700K 95lm/W
798lm initial output at 3000K 101lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W

9.8mm LES COB

90 CRI 350mA

1433lm initial output at 2700K 120lm/W
1513lm initial output at 3000K 127lm/W
1582lm initial output at 3500K 133lm/W
1620lm initial output at 4000K 136lm/W

95 CRI 350mA

1276lm initial output at 2700K 107lm/W
1341lm initial output at 3000K 113lm/W
1421lm initial output at 3500K 119lm/W
1483lm initial output at 4000K 124lm/W

14.5mm LES COB

90 CRI 700mA

2888lm initial output at 2700K 122lm/W
3066lm initial output at 3000K 129lm/W
3280lm initial output at 3500K 138lm/W
3387lm initial output at 4000K 143lm/W

95 CRI 700mA

2602lm initial output at 2700K 110lm/W
2745lm initial output at 3000K 116lm/W
2959lm initial output at 3500K 125lm/W
3066lm initial output at 4000K 129lm/W

Light Distribution


6mm LES COB

Very Narrow ​​10.9°
Medium ​​​22°
Flood ​35.5°
Flood 2 ​​49°
Wide Flood ​​​66°​

9.8mm LES COB

Narrow ​​​​15.1°
Medium ​22°
Flood ​31.2°
Flood 2 ​44.3°
Wide Flood 64.5°​

14.5mm LES COB

Narrow ​22°
Medium​ ​​​24.5°
Flood 31.7°
Flood 2 ​​45.7°
Wide Flood ​60.9°​

Lumen Maintenance ​L70 B0 F0 50,000 hours

Colour Consistency 1 x 2 SDCM

Colour Maintenance ± 0.003 ∆u’v’

IP Rating IP20

Weight 0.75kg

Lumen
Maintenance
: L70 B0 F0 50,000 hours

Colour
Consistency
1 x 2 SDCM

Colour Maintenance± 0.003 ∆u’v’

IP Rating: IP20

Weight: 0.75kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

Photometry

To access our photometry files please view this page from a desktop device.


Accessories and Attachments

This product can accept up to 2 x lenses and louvres:

Honeycomb louvre for glare control


Order no. ITY-000392

Soft spread lens to product a soft elliptical beam


Order no. ITY-000430

Sharp spread lens to produce a pronounced elliptical beam

Order no. ITY-000431

Diffuser lens used for softening and widening beams

Order no. ITY-000429

Clear lens can be used as protection from dirt/debris

Order no. ITY-000433

Stipple lens used for softening beams and removing lens artifacts

Order no. ITY-000434

This product can accept one of the following attachments:

Removeable barn doors used to crop beams
Order no. ZTA.70.Surface.Barn doors.
Removeable straight cut cowl or slash cut snoot.
Order no.  ITY-0006982 Snoot.
Order no.  ITY-005113 Cowl.
