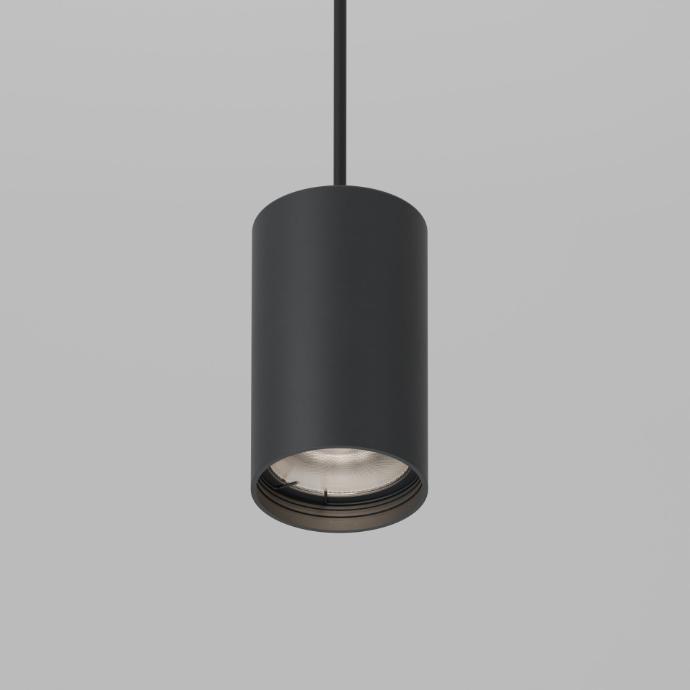

ZTA.70.Pendant
Modular high-performance, ceiling suspended spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description

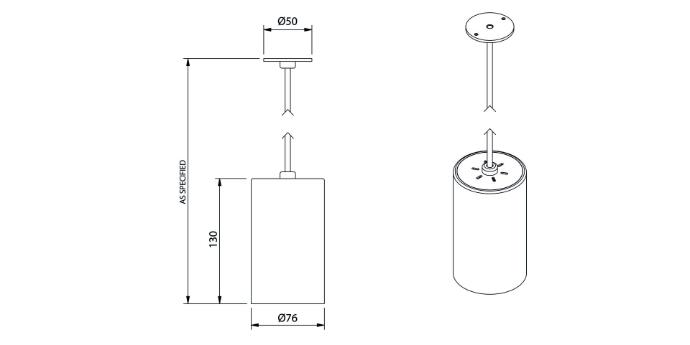

ZTA.70.Pendant is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. With height adjustable cables that can be specified to length.
The spotlight can accommodate up to two lens accessories, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Height adjustable suspension and power cable, can be specified to length.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to two lens accessories and various attachments.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
For more information on environmental reporting click here.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant current LED driver required
Power
6mm LES COB
9.8mm LES COB
14.5mm LES COB
7.9W
31.6Vf
11.9W
34Vf
23.7W
33.9Vf
Technical
Light Source
6mm LES COB
90 CRI 250mA
840lm initial output at 2700K 107lm/W
873lm initial output at 3000K 111lm/W
939lm initial output at 3500K 119lm/W
978lm initial output at 4000K 124lm/W
95 CRI 250mA
751lm initial output at 2700K 95lm/W
798lm initial output at 3000K 101lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W
9.8mm LES COB
90 CRI 350mA
1433lm initial output at 2700K 120lm/W
1513lm initial output at 3000K 127lm/W
1582lm initial output at 3500K 133lm/W
1620lm initial output at 4000K 136lm/W
95 CRI 350mA
1276lm initial output at 2700K 107lm/W
1341lm initial output at 3000K 113lm/W
1421lm initial output at 3500K 119lm/W
1483lm initial output at 4000K 124lm/W
14.5mm LES COB
90 CRI 700mA
2888lm initial output at 2700K 122lm/W
3066lm initial output at 3000K 129lm/W
3280lm initial output at 3500K 138lm/W
3387lm initial output at 4000K 143lm/W
95 CRI 700mA
2602lm initial output at 2700K 110lm/W
2745lm initial output at 3000K 116lm/W
2959lm initial output at 3500K 125lm/W
3066lm initial output at 4000K 129lm/W
Light Distribution
6mm LES COB
Very Narrow 10.9°
Medium 22°
Flood 35.5°
Flood 2 49°
Wide Flood 66°
9.8mm LES COB
Narrow 15.1°
Medium 22°
Flood 31.2°
Flood 2 44.3°
Wide Flood 64.5°
14.5mm LES COB
Narrow 22°
Medium 24.5°
Flood 31.7°
Flood 2 45.7°
Wide Flood 60.9°
Lumen Maintenance L70 B0 F0 50,000 hours
Colour Consistency 1 x 2 SDCM
Colour Maintenance ± 0.003 ∆u’v’
IP Rating IP20
Weight 0.75kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.75kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
90 CRI (873lm initial output)
Very Narrow 10.9°
Medium 22°
Flood 35.5°
Flood 2 49°
Wide Flood 66°
6mm LES COB
95 CRI (798lm initial output)
Very Narrow 10.9°
Medium 22°
Flood 33.5°
Flood 2 49°
Wide Flood 66°
9.8mm LES COB
90 CRI (1513lm initial output)
Narrow 15.1°
Medium 22°
Flood 31.2°
Flood 2 44.3°
Wide Flood 64.5°
9.8mm LES COB
95 CRI (1341lm initial output)
Narrow 15.1°
Medium 22°
Flood 31.2°
Flood 2 44.3°
Wide Flood 64.5°
14.5mm LES COB
90 CRI (3066lm initial output)
Narrow 22°
Medium 24.5°
Flood 31.7°
Flood 2 45.7°
Wide Flood 60.9°
14.5mm LES COB
95 CRI (2745lm initial output)
Narrow 22°
Medium 24.5°
Flood 31.7°
Flood 2 45.7°
Wide Flood 60.9°
Photometry
To access our photometry files please view this page from a desktop device.
Accessories
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000392
Soft spread lens to product a soft elliptical beam
Order no. ITY-000430
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000431
Diffuser lens used for softening and widening beams
Order no. ITY-000429
Clear lens can be used as protection from dirt/debris
Order no. ITY-000433
