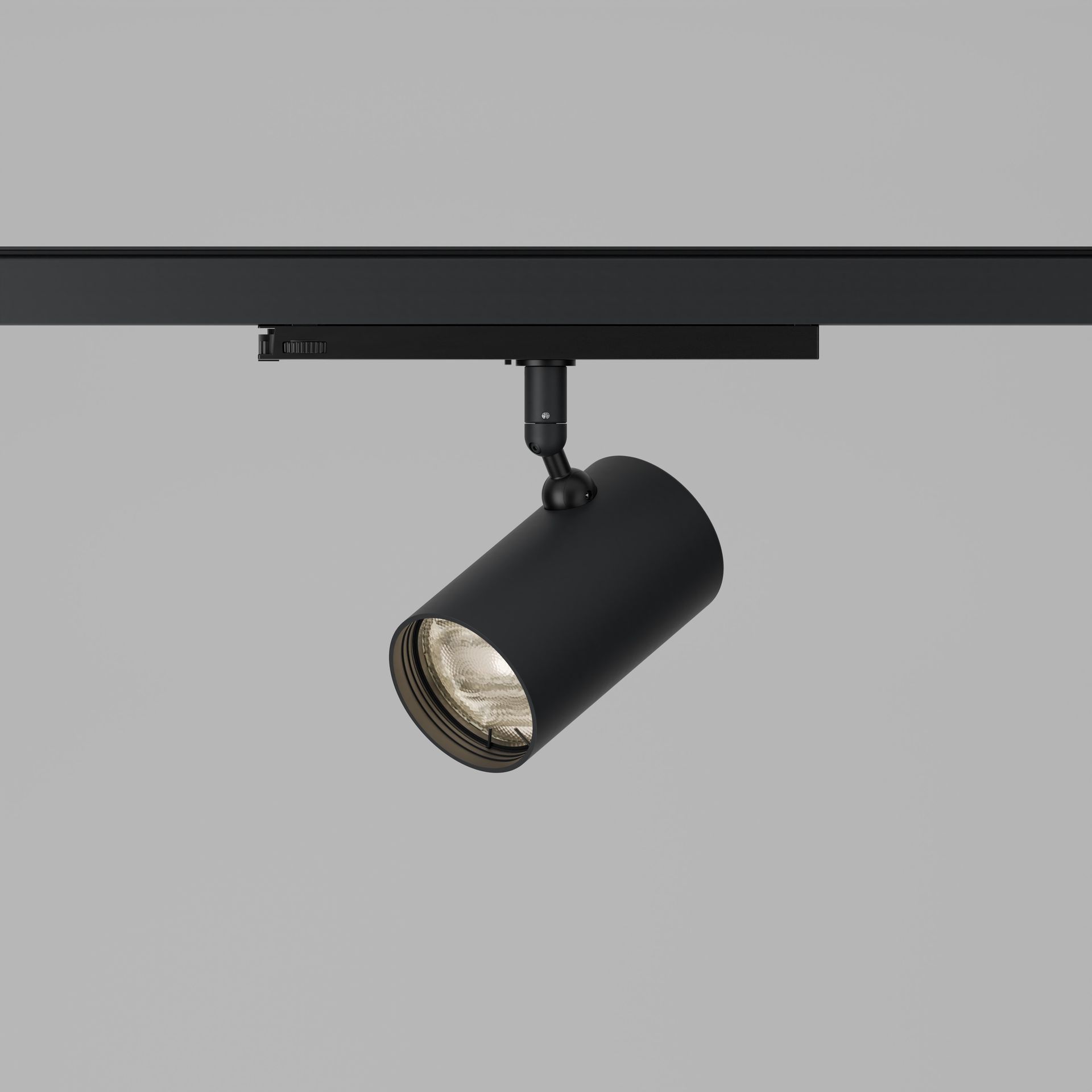

ZTA.70.Mains Track
Modular high-performance, mains track-mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments.
Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.70.Mains Track is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Compatible with 3-circuit adapters for 120-277V Stucchi, Eutrac, Global Pulse, and other track systems, this spotlight includes integral dimming control gear.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• Broad compatibility: 3-circuit adapter supports multiple track systems (Stucchi, Eutrac, Global Pulse).
• Advanced dimming options: on-board, DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to two lens accessories and various attachments.
• Ceiling mounting only: designed exclusively for ceiling installations.
6mm LES output up to 1175lm initial
9mm LES output up to 1929lm initial
14mm LES output up to 3280lm initial
Modular high-performance, mains track-mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments.
Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.70.Mains Track is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Compatible with 3-circuit adapters for 120-277V Stucchi, Eutrac, Global Pulse, and other track systems, this spotlight includes integral dimming control gear.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• Broad compatibility: 3-circuit adapter supports multiple track systems (Stucchi, Eutrac, Global Pulse).
• Advanced dimming options: on-board, DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to two lens accessories and various attachments.
• Ceiling mounting only: designed exclusively for ceiling installations.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.70 mains track - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
230V/240V via 3 circuit track
Light source
6mm LES COB
9mm LES COB
14mm LES COB
Initial output
SL90 8W 32Vf at 250mA
2700K • 1087lm • 136lm/W
3000K • 1133lm • 141lm/W
3500K • 1144lm • 143lm/W
4000K • 1175lm • 147lm/W
SL98 8.6W 34.4Vf at 250mA
2700K • 863lm • 100lm/W
3000K • 923lm • 107lm/W
3500K • 923lm • 107lm/W
4000K • 974lm • 113lm/W
SL90 11.8W 33.8Vf at 350mA
2700K • 1822lm • 154lm/W
3000K • 1908lm • 161lm/W
3500K • 1929lm • 163lm/W
4000K • 1919lm • 162lm/W
SL98 10.6W 30.4Vf at 350mA
2700K • 1205lm • 113lm/W
3000K • 1288lm • 121lm/W
3500K • 1313lm • 124lm/W
4000K • 1352lm • 127lm/W
SL90 20.9W 34.8Vf at 600mA
2700K • 3097lm • 148lm/W
3000K • 3243lm • 155lm/W
3500K • 3280lm • 157lm/W
4000K • 3261lm • 156lm/W
SL98 23.5W 33.5Vf at 700mA
2700K • 2669lm • 114lm/W
3000K • 2852lm • 122lm/W
3500K • 2909lm • 124lm/W
4000K • 2973lm • 127lm/W
Light distribution
Very Narrow 7.3º
Very Narrow 2 9.6°
Narrow 11°
Medium 26.7°
Flood 36.8º
Wide Flood 55.4º
Extra Wide Flood 85.4º
Very Narrow 11.1º
Narrow 14.4°
Narrow 2 15.1°
Medium 25.1°
Flood 35.1º
Wide Flood 54.1º
Extra Wide Flood 82.9º
Narrow 16.9º
Narrow 2 21.4°
Medium 22°
Medium 2 24.7°
Flood 32.4º
Wide Flood 51.6º
Extra Wide Flood 79.6º
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.9kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.9kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
SL90 (1133lm initial output at 3000K)
6mm LES COB
SL98 (923lm initial output at 3000K)
9mm LES COB
SL90 (1908lm initial output at 3000K)
9mm LES COB
SL98 (1288lm initial output at 3000K)
14mm LES COB
SL90 (3243lm initial output at 3000K)
14mm LES COB
SL98 (2852lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000392
Soft spread lens to product a soft elliptical beam
Order no. ITY-000430
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000431
Diffuser lens used for softening and widening beams
Order no. ITY-000429
Clear lens can be used as protection from dirt/debris
Order no. ITY-000433
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000434
This product can accept one of the following attachments:

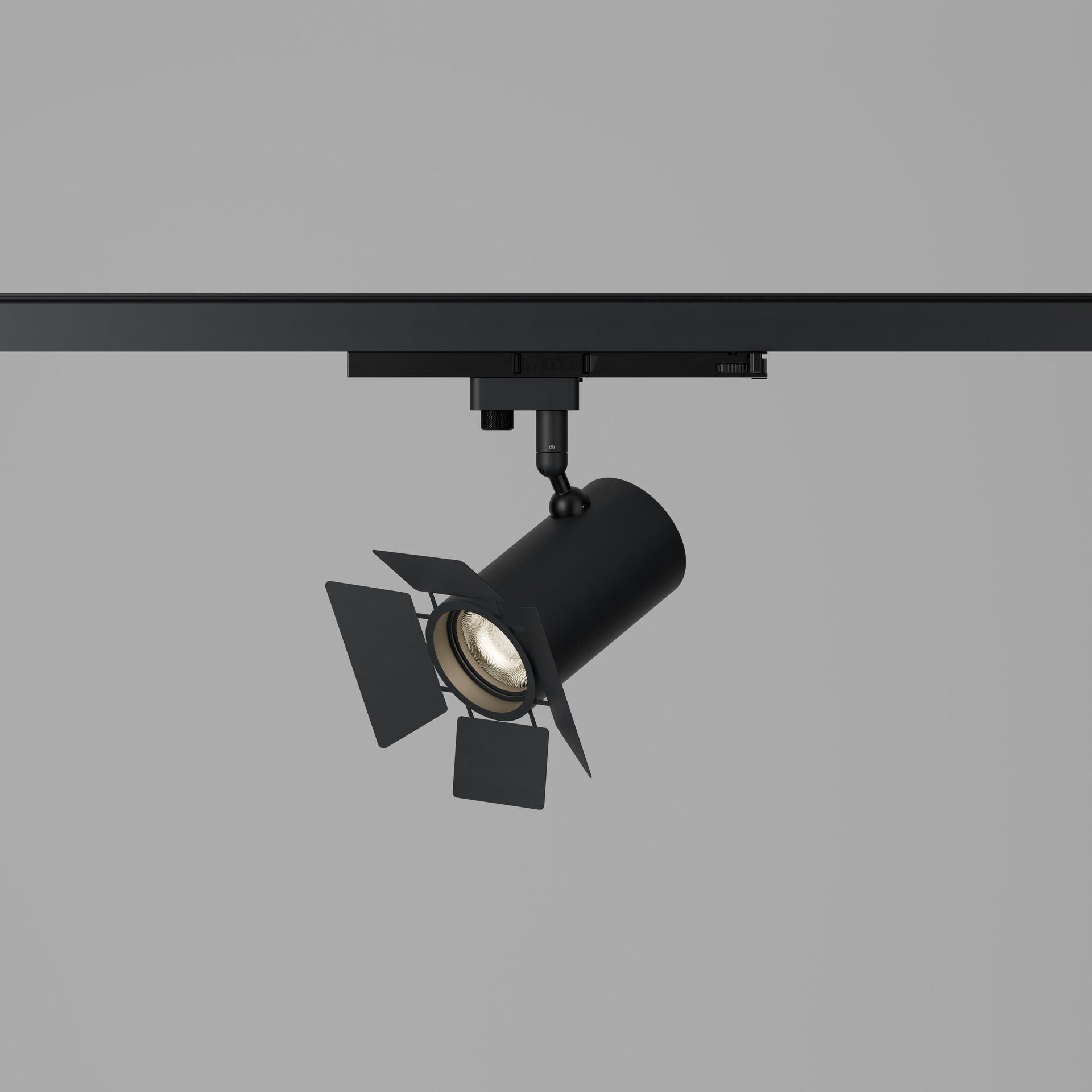

Removeable barn doors used to crop beams
Order no. STD-000302

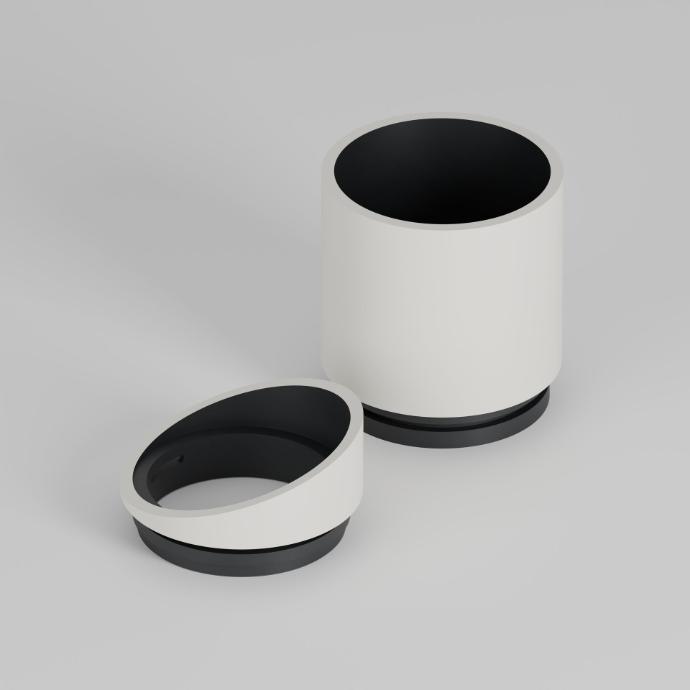

Removeable straight cut or slash cut snoot.
Order no. STD-000612
