ZTA.50.PLP
Born from an opportunity to put waste to use, Plastic Light Pendant is partially manufactured from the mixed fine powder overspray collected from our finishing processes. Together with a PMMA monomer binder and, if desired, granulated acrylic waste, PLP is a decorative addition to the ZTA.50 range.
PW (Powder Waste): 12% captured fine powder waste, 88% clear acrylic
AW (Acrylic Waste): 40% granulated clear acrylic waste, 60% clear acrylic.
P+AW (Powder and Acrylic Waste): 12% captured fine powder waste, 45% granulated clear acrylic waste, 43% clear acrylic.
Product Description

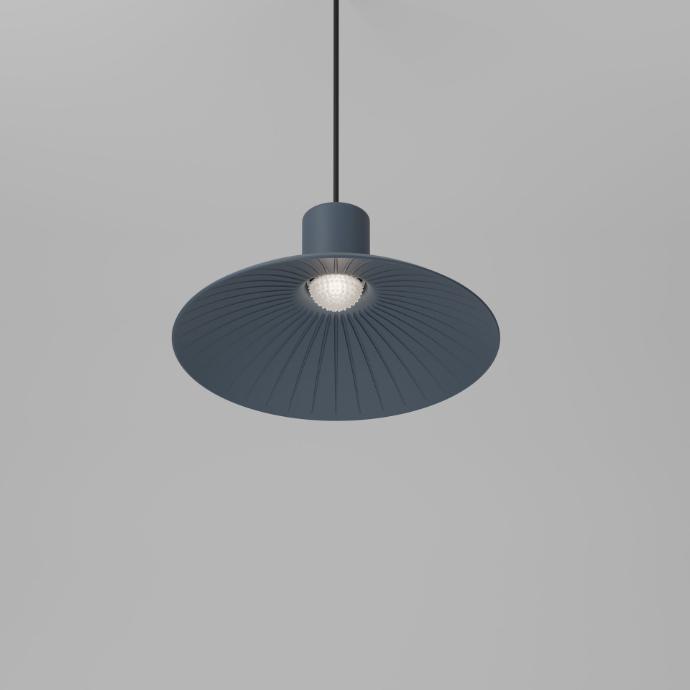

The ZTA.50.PLP is manufactured entirely from Stoane Lighting's recycled waste aluminium stream, avoiding the need for off-site recycling and manufactured entirely in house.
Cast and machined, the product marries artisanal craftsmanship with a contemporary design, the innovative shade allows for both technical and decorative optics, additionally more traditional E27 Light sources.
Available in static white colour temperatures from 2700K to 4000K as standard, but also with warm dimming capability to 1800K.

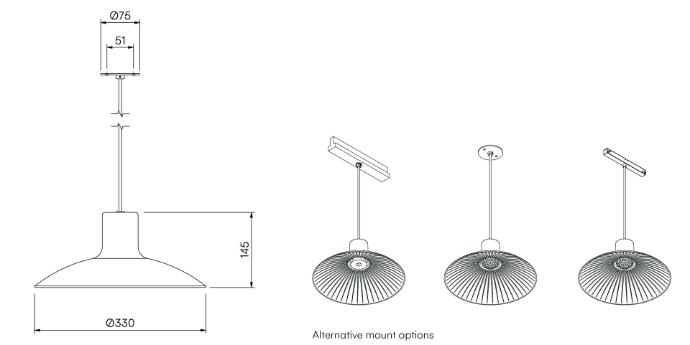

The product is height adjustable via a site cuttable suspension and power cable, with various cable colour options available.
It can be used individually or in clusters to create dynamic lighting arrangements.
Key Features
• Sustainable construction: made from recycled aluminium.
• Height adjustable suspension with various cable colour options.
• Static and warm dim LED options available with technical optics providing Very Narrow to Wide Flood beam distributions.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
Born from an opportunity to put waste to use, Plastic Light Pendant is partially manufactured from the mixed fine powder overspray collected from our finishing processes. Together with a PMMA monomer binder and, if desired, granulated acrylic waste, PLP is a decorative addition to the ZTA.50 range.
PW (Powder Waste): 12% captured fine powder waste, 88% clear acrylic
AW (Acrylic Waste): 40% granulated clear acrylic waste, 60% clear acrylic.
P+AW (Powder and Acrylic Waste): 12% captured fine powder waste, 45% granulated clear acrylic waste, 43% clear acrylic.
Product Description
The ZTA.50.PLP is manufactured entirely from Stoane Lighting's recycled waste aluminium stream, avoiding the need for off-site recycling and manufactured entirely in house.
Cast and machined, the product marries artisanal craftsmanship with a contemporary design, the innovative shade allows for both technical and decorative optics, additionally more traditional E27 Light sources.
Available in static white colour temperatures from 2700K to 4000K as standard, but also with warm dimming capability to 1800K.
The product is height adjustable via a site cuttable suspension and power cable, with various cable colour options available.
It can be used individually or in clusters to create dynamic lighting arrangements.
Key Features
• Sustainable construction: made from recycled aluminium.
• Height adjustable suspension with various cable colour options.
• Static and warm dim LED options available with technical optics providing Very Narrow to Wide Flood beam distributions.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
ZTA.50.plp (fixed focus)
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.50.PLP - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
9mm LES COB
Warm Dim
Initial output
SL90 10W 33.4Vf at 300mA
2700K • 1579lm • 158lm/W
3000K • 1654lm • 165lm/W
3500K • 1672lm • 167lm/W
4000K • 1663lm • 166lm/W
SL98 9W 30Vf at 300mA
2700K • 1046lm • 116lm/W
3000K • 1117lm • 124lm/W
3500K • 1139lm • 127lm/W
4000K • 1173lm • 130lm/W
90 CRI 8.6W 34.7Vf at 250mA
3000K • 864lm • 94.9lm/W
Light distribution
Narrow 19.7°
Medium 27º
Flood 35.9º
Wide Flood 50.1º
Full 137.6º
Narrow 19.9º
Medium26.8°
Flood 36.7°
Wide Flood51.7°
Full 137.6º
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.9kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.9kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
9mm LES COB
SL90 (1654lm initial output at 3000K)
9mm LES COB
SL98 (1117lm initial output at 3000K)
Warm Dim
95 CRI (864lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
