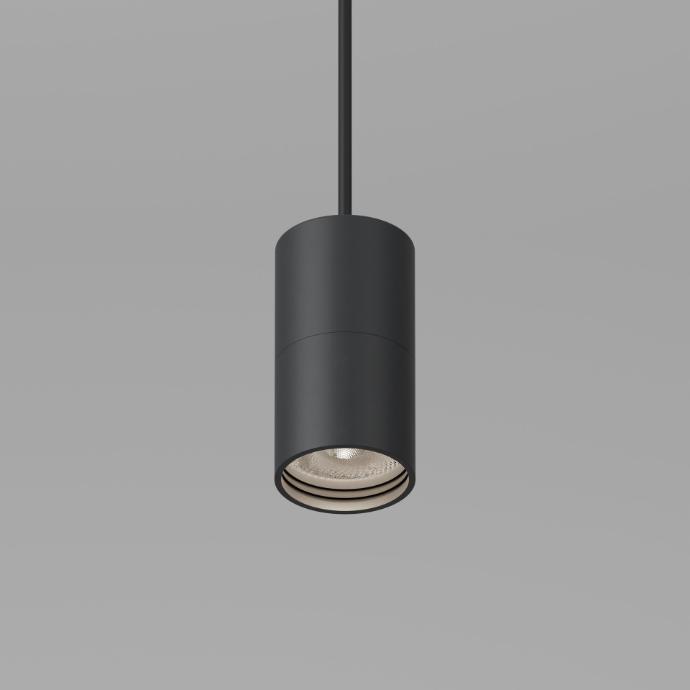

ZTA.50.Pendant
Modular high-performance, ceiling suspended spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description:
ZTA.50.Pendant is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. With height adjustable cables that can be specified to length.
Key Features:
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Height adjustable suspension and power cable, can be specified to length.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Customisable Accessories: Can house up to two lens accessories and various attachments.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant current LED driver required
Power
6mm LES COB
9.8mm LES COB
7.9W
Vf 31.6V
11.9W
Vf 34V
Technical
Light Source
6mm LES COB
90 CRI 250mA
840lm initial output at 2700K 107lm/W
873lm initial output at 3000K 111lm/W
939lm initial output at 3500K 119lm/W
978lm initial output at 4000K 124lm/W
95 CRI 250mA
751lm initial output at 2700K 95lm/W
798lm initial output at 3000K 101lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W
9.8mm LES COB
90 CRI 450mA
1433lm initial output at 2700K 120lm/W
1513lm initial output at 3000K 127lm/W
1582lm initial output at 3500K 133lm/W
1620lm initial output at 4000K 136lm/W
95 CRI 450mA
1276lm initial output at 2700K 107lm/W
1341lm initial output at 3000K 113lm/W
1421lm initial output at 3500K 119lm/W
1483lm initial output at 4000K 124lm/W
Light Distribution
6mm LES COB
Very Narrow 13.9°
Narrow 14.7°
Medium 24.1°
Flood 36.7°
Wide Flood 51.7°
9.8mm LES COB
Narrow 17.4°
Narrow 2 18.8°
Medium 25.3°
Flood 34.1°
Wide Flood 46.6°
Lumen Maintenance L70 B0 F0 50,000 hours
Colour Consistency 1 x 2 SDCM
Colour Maintenance ± 0.003 ∆u’v’
IP Rating IP20
Weight 0.38kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.38kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
90 CRI (873lm initial output)
Very Narrow 13.9°
Narrow 14.7°
Medium 24.1°
Flood 36.7°
Wide Flood 51.7°
6mm LES COB
95 CRI (798lm initial output)
Very Narrow 13.9°
Narrow 14.7°
Medium 24.1°
Flood 36.7°
Wide Flood 51.7°
9.8mm LES COB
90 CRI (1513lm initial output)
Narrow 17.4°
Narrow 2 18.8°
Medium 25.3°
Flood 34.1°
Wide Flood 46.6°
9.8mm LES COB
95 CRI (1341lm initial output)
Narrow 17.4°
Narrow 2 18.8°
Medium 25.3°
Flood 34.1°
Wide Flood 46.6°
Photometry
To access our photometry files please view this page from a desktop device.
Accessories and Attachments

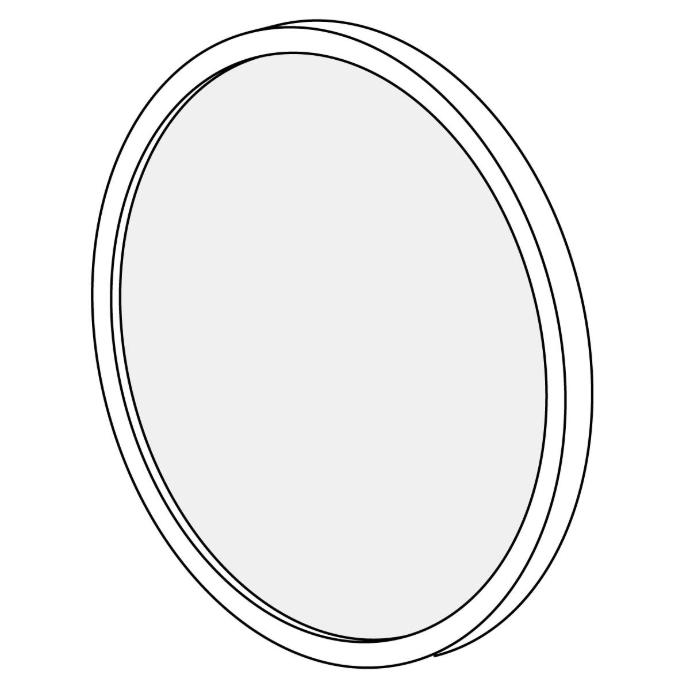

This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000394
Soft spread lens to product a soft elliptical beam
Order no. ITY-000439
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000437
Diffuser lens used for softening and widening beams
Order no. ITY-000438
Clear lens can be used as protection from dirt/debris
Order no. ITY-000436
