order code: product-title.colour temp.optic.length.finish
example: zta.50.g-stick.3000K.wall wash.400mm.black
ZTA is designed for the Circular Economy. It is entirely flexible in choice of light source, optic, paint finish, control system and mount method. It is truly maintainable, re-manufacturable and ultimately recyclable.

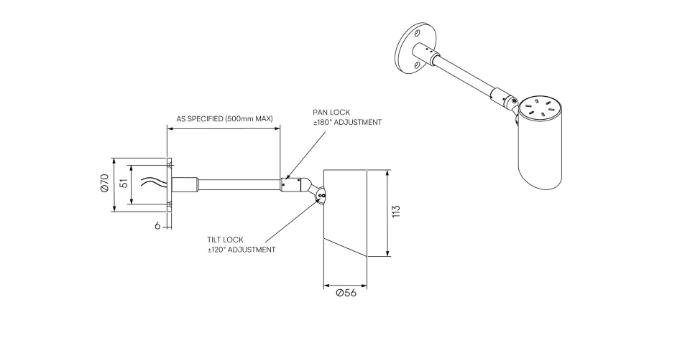

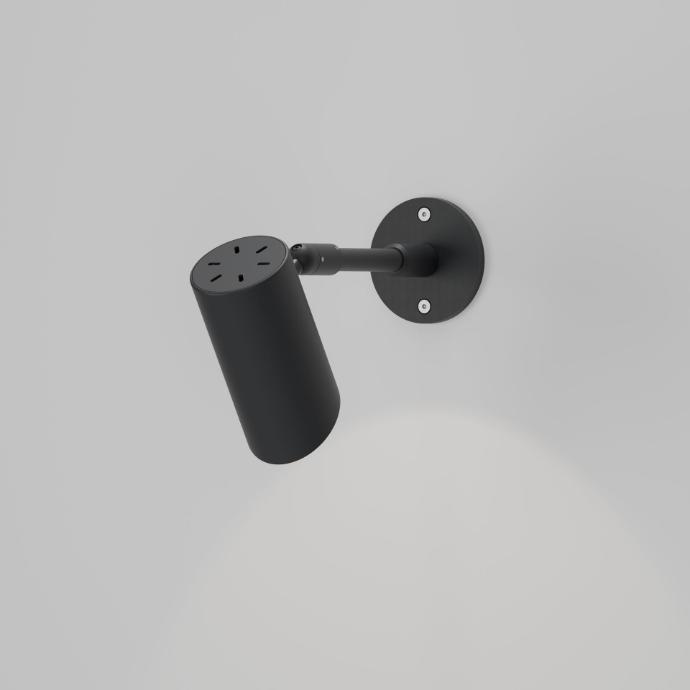

ZTA.50-G-Stick is the modern version of our 'Graphic Stick'. With a wall wash optic and slash cut snoot, it is designed to light artwork.
Photometry is commonly available for currently preferred light sources. Equivalent and alternative light sources can be used depending on availability or desired specification. In this way, Stoane Lighting can react quickly to supply chain issues and tailor products to specific customer requirements.
Provision for 2 accessories.
Light Source Type
- Xicato XOB
- Interior Use Only
- Machined Aluminium
- Min. 90
- Min. 95
Initial Output (Wattage)
- 14.5mm LES XOB min. 90 CRI: 1776lm (11.7W at 350mA)
- 14.5mm LES XOB min. 95 CRI: 1590lm (11.7W at 350mA)
- N/A (interior use only)
- Mains Dim
- Remote Constant Current LED driver or 48V DC PSU required (depending on module choice)
- 2mm Allen key required
- Wall wash
- 0.4 kg
This area of a product's page is where you will find results of TM65, TM66, and others as we and our industry progress. For more information on TM65 and TM66, please visit the Environmental page here.
CIBSE’s TM65 provides a calculation methodology to assess the embodied carbon in products linked to mechanical, electrical and public health (MEP) systems.
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM), an independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
14.5mm LES XOB min. 90 CRI (1776lm)
- Wall Wash
14.5mm LES XOB min. 95 CRI (1590lm)
- Wall Wash
Lenses and Louvres
All lenses are available for Ø35mm, Ø50mm, Ø70mm or Ø111mm fittings

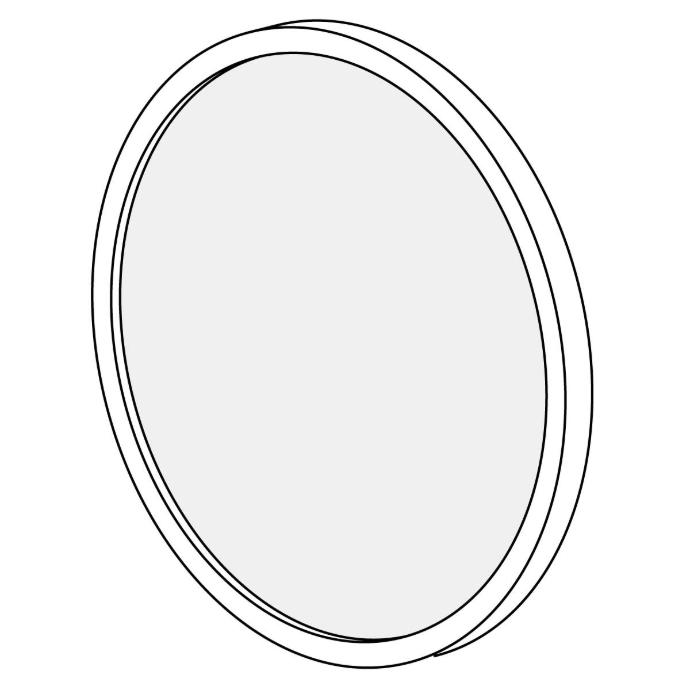

German Spread Lens
Effect:Produces sharp elliptical beam
UK Spread Lens
Effect:Produces soft elliptical beam
