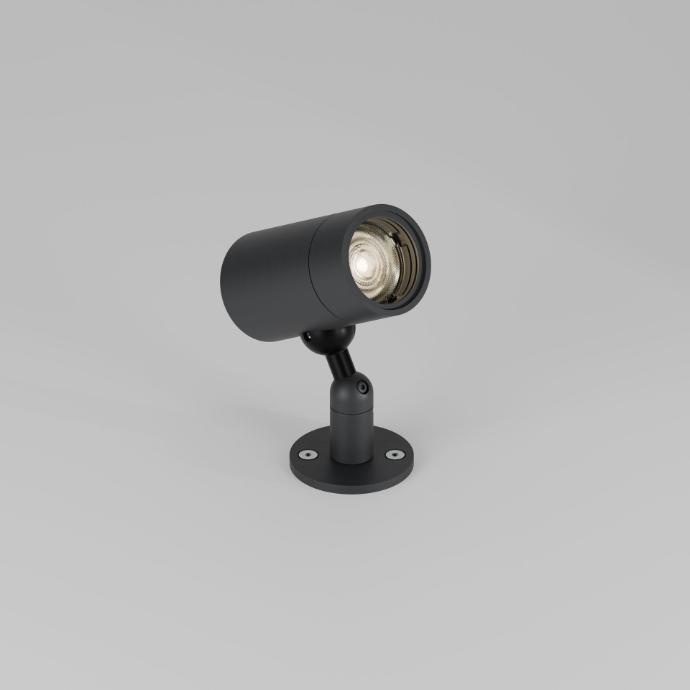

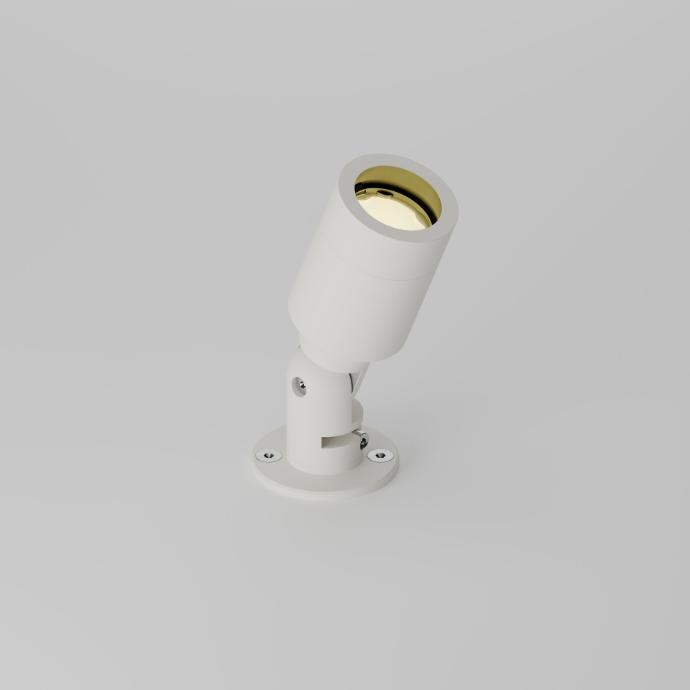

ZTA.35.Surface
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.

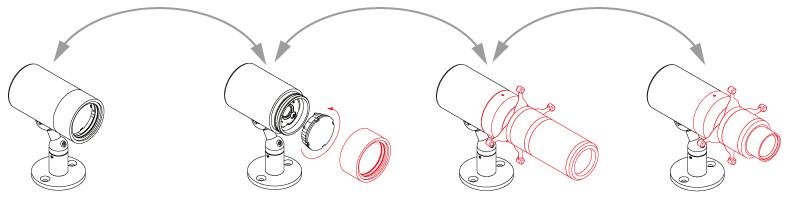

Easily interchangeable between fixed and Zoom optics.
Product Description
ZTA.35.Surface is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
The spotlight can accommodate up to two lens accessories with fixed optics or a single lens accessory with Zoom and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Fixed optics can be easily swapped to Zoom.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to one lens accessory and various attachments.
4mm LES output up to 1051lm initial
6mm LES output up to 1175lm initial
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Easily interchangeable between fixed and Zoom optics.
Product Description
ZTA.35.Surface is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. The spotlight can accommodate up to two lens accessories with fixed optics or a single lens accessory with Zoom and multiple attachments, making it highly customisable for various lighting needs.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Fixed optics can be easily swapped to Zoom.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to one lens accessory and various attachments.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.35.SURFACE - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Technical
Supply
Remote constant current LED driver required
Light source
4mm LES COB
6mm LES COB
Initial output
SL90 8.8W 35.1Vf at 250mA
2700K • 972lm • 111lm/W
3000K • 1013lm • 115lm/W
3500K • 1023lm • 116lm/W
4000K • 1051lm • 120lm/W
SL98 4.3W 17.2Vf at 250mA
2700K • 418lm • 97lm/W
3000K • 446lm • 104lm/W
3500K • 446lm • 104lm/W
4000K • 471lm • 110lm/W
SL90 8W 32Vf at 250mA
2700K • 1087lm • 136lm/W
3000K • 1133lm • 141lm/W
3500K • 1144lm • 143lm/W
4000K • 1175lm • 147lm/W
SL98 8.6W 34.4Vf at 250mA
2700K • 863lm • 100lm/W
3000K • 923lm • 107lm/W
3500K • 923lm • 107lm/W
4000K • 974lm • 113lm/W
Light distribution
Narrow 13.6°
Medium 22°
Flood 35.4°
Wide Flood 52.8°
Zoom 17.2° - 46.8°
Narrow 17.8°
Medium 23°
Flood 34.6°
Wide Flood 54.5°
Zoom 21.6° - 44.9°
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.31kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.31kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
4mm LES COB
SL90 (1013lm initial output at 3000K)
4mm LES COB
SL98 (446lm initial output at 3000K)
6mm LES COB
SL90 (1133lm initial output at 3000K)
6mm LES COB
SL98 (923lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
Accessories
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-008444
Soft spread lens to product a soft elliptical beam
Order no. ITY-013193
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-008089
Diffuser lens used for softening and widening beams
Order no. ITY-013196
Clear lens can be used as protection from dirt/debris
Order no. ITY-013197
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-013194

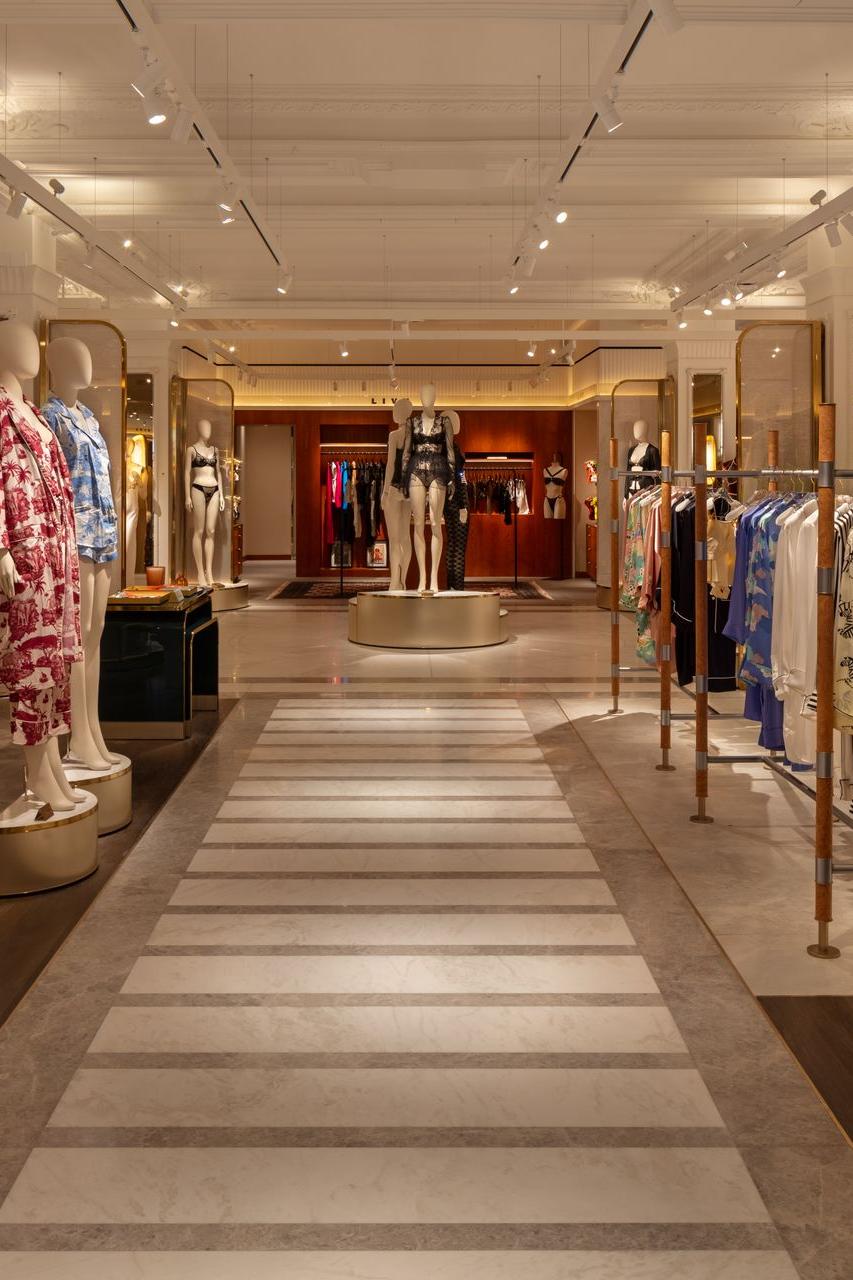

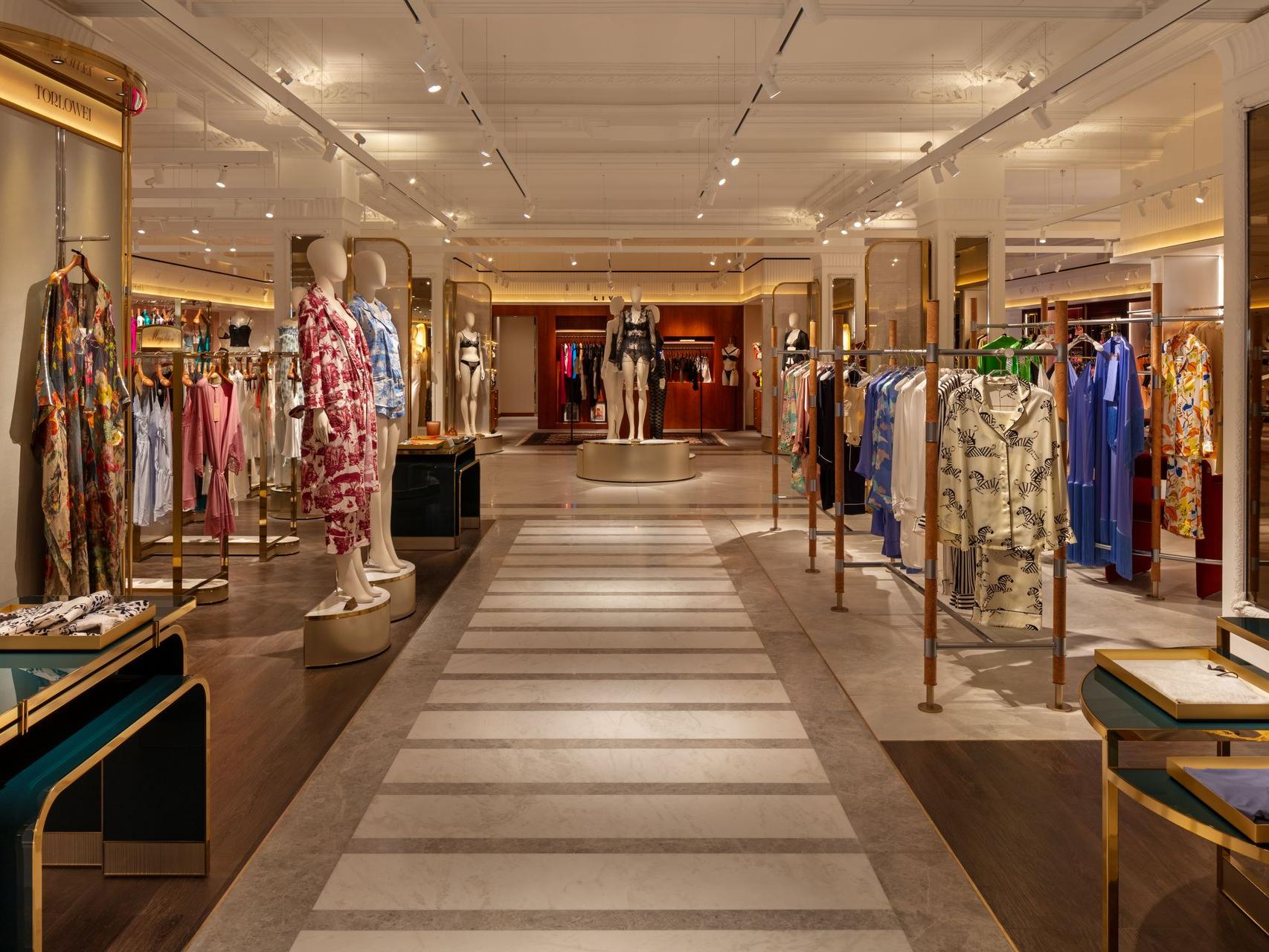

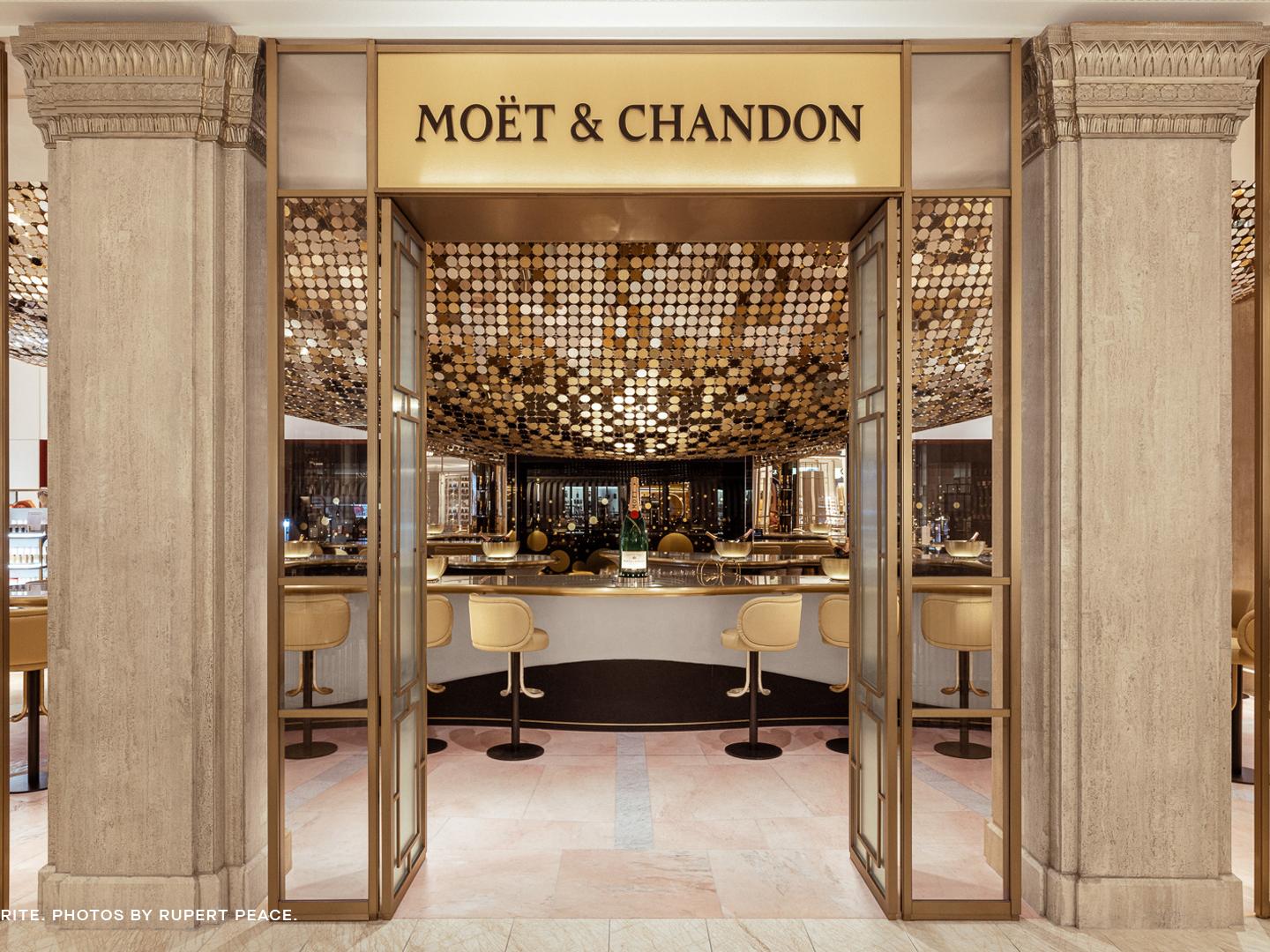

Related Projects
