ZTA.100.Mains Track

https://www.stoanelighting.com/web/image/product.template/10483/image_1920?unique=678f47f
Modular high-performance, mains track-mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.

Product Description
ZTA.100.Mains Track is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Compatible with 3-circuit adapters for 120-277V Stucchi, Eutrac, Global Pulse, and other track systems, this spotlight includes integral dimming control gear.

Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• Broad compatibility: 3-circuit adapter supports multiple track systems (Stucchi, Eutrac, Global Pulse).
• Advanced dimming options: on-board, DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to two lens accessories and various attachments.
• Ceiling mounting only: designed exclusively for ceiling installations.

625.0 GBP £ 625.00

£ 625.00

Not Available For Sale

  • CCT
  • CRI
  • Beam
  • Finish
    Please contact us for custom finishing requirements.
  • Track adaptor colour
  • Dimming
  • Secondary Lensing Accessories

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number:
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

ZTA.100.Mains Track​​​​​

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

ZTA.100.Mains Track - ​​​​​​​​​​​​2.7​​​​


LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here. ​




Downloads


ZTA.100.Mains Track Instructions

PDF​​​​

ZTA.100.Mains Track Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


230V/240V via 3 circuit track

Power
35.9W

Vf 34.2V

Technical

Light Source

14.5mm LES COB

90 CRI 1050mA

4050lm initial output at 2700K 113lm/W
4300lm initial output at 3000K 120lm/W
4600lm initial output at 3500K 128lm/W
4750lm initial output at 4000K 132lm/W

95 CRI 1050mA

3650lm initial output at 2700K 102lm/W
3850lm initial output at 3000K 107lm/W
4150lm initial output at 3500K 115lm/W
4300lm initial output at 4000K 120lm/W



Light Distribution

Narrow ​​23.8°
Medium ​24.7°
Flood ​31°
Flood 2 ​​48.3°
Wide Flood ​65.4°
Wall Wash ​77.4° x 35.7°​​



Lumen Maintenance ​​​L70 B0 F0 50,000 hours

Colour Consistency ​​1 x 2 SDCM

Colour Maintenance ± 0.003 ∆u’v’

IP Rating ​​IP20

Weight ​​1.7kg

Lumen
Maintenance
: L70 B0 F0 50,000 hours

Colour
Consistency
1 x 2 SDCM

Colour Maintenance± 0.003 ∆u’v’

IP Rating: IP20

Weight: 1.7kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

Photometry

To access our photometry files please view this page from a desktop device.


Accessories and Attachments

This product can accept up to 2 x lenses and louvres:

Honeycomb louvre for glare control


Order no. ITY-000392

Soft spread lens to product a soft elliptical beam


Order no. ITY-000430

Sharp spread lens to produce a pronounced elliptical beam

Order no. ITY-000431

Diffuser lens used for softening and widening beams

Order no. ITY-000429

Clear lens can be used as protection from dirt/debris

Order no. ITY-000433

Stipple lens used for softening beams and removing lens artifacts

Order no. ITY-000434

This product can accept one of the following attachments:

Removeable barn doors used to crop beams
Order no. ZTA.100.Barn doors.

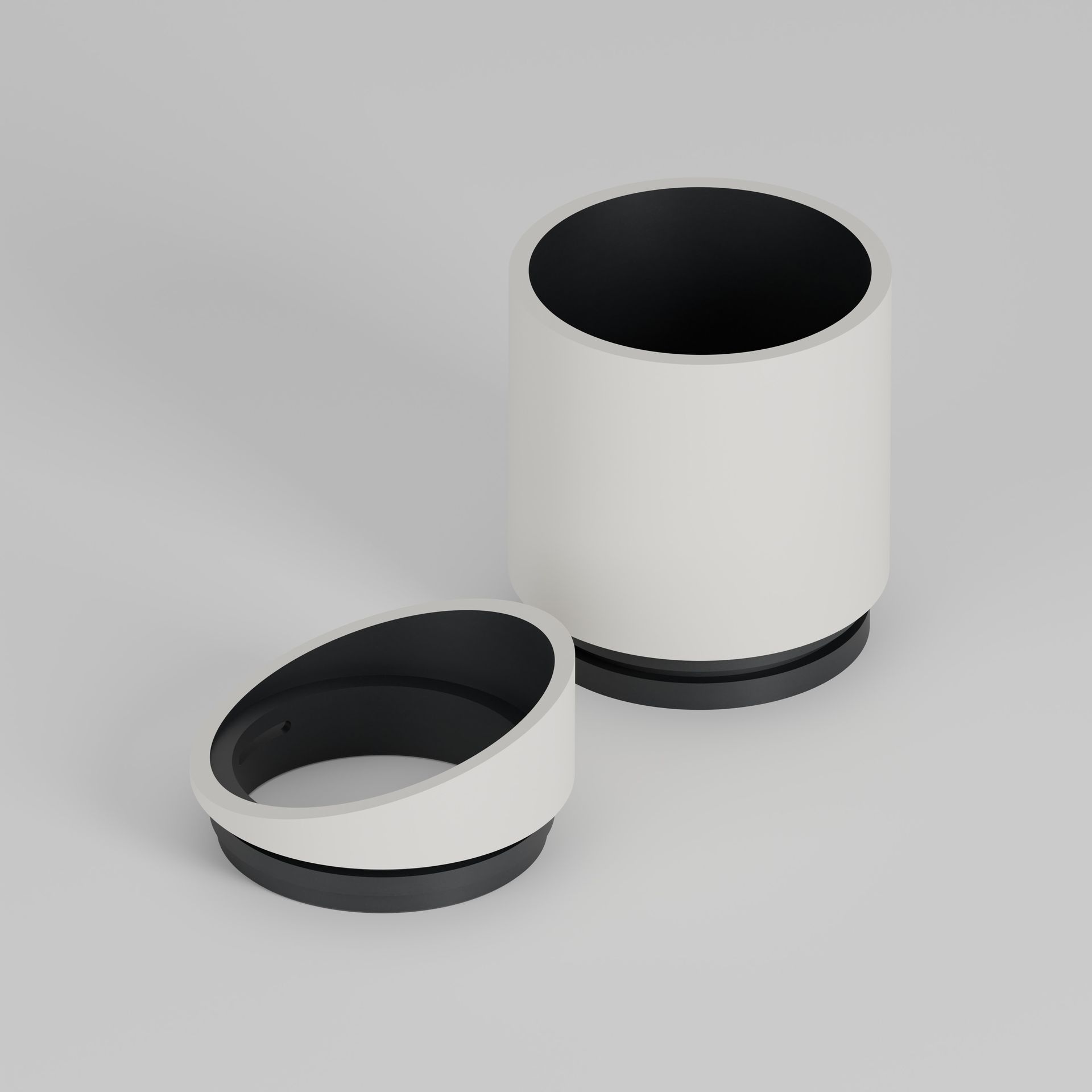

Removeable straight cut or slash cut snoot.
Order no. ZTA.100.Snoot.
