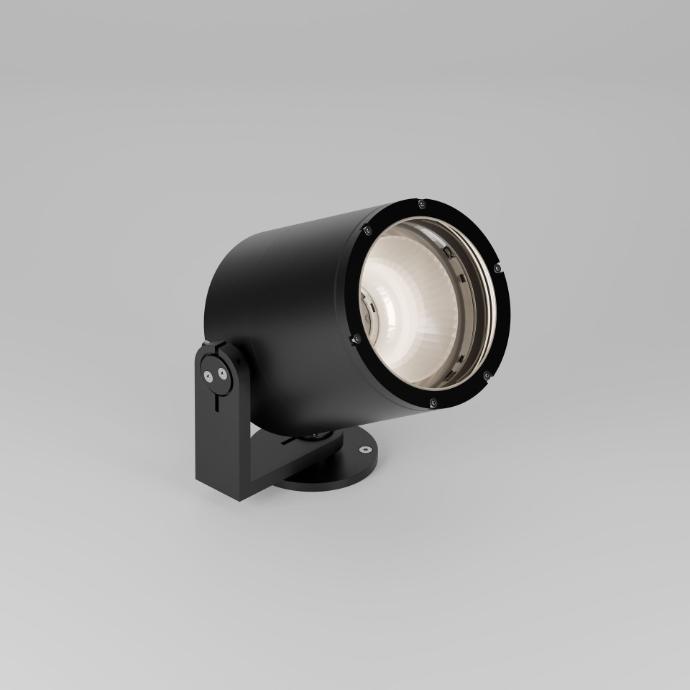

Toad Type X
High-performance exterior spotlight system, for ceiling and wall mounting to illuminate exterior architectural details and landscape illumination.
Product Description
The Toad Type X is a high power IP66 exterior rated, adjustable and lockable spotlight.
Constructed from precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Provided with interchangeable optics from Very Narrow to Wide Flood, additional lenses can be added for glare control or to create elliptical beam spreads.
Key Features
• Sustainable Construction: Made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Fixed optics can be easily swapped from Very Narrow to Flood options, capable of holding up to two additional lens accessories.
• Snoot and Cowl options available.
• Advanced Dimming Options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-Performance Lighting: Up to 98 CRI LEDs with interchangeable optical systems.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
Toad Type X - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant current LED driver required
Power
9.8mm LES COB
14.5mm LES COB
11.9W
Vf 34V
35.9W
Vf 34.2V
Technical
Light Source
9.8mm LES COB
90 CRI 350mA
1433lm initial output at 2700K 120lm/W
1513lm initial output at 3000K 127lm/W
1582lm initial output at 3500K 133lm/W
1620lm initial output at 4000K 136lm/W
95 CRI 350mA
1276lm initial output at 2700K 107lm/W
1341lm initial output at 3000K 113lm/W
1421lm initial output at 3500K 119lm/W
1483lm initial output at 4000K 124lm/W
14.5mm LES COB
90 CRI 1050mA
4050lm initial output at 2700K 113lm/W
4300lm initial output at 3000K 120lm/W
4600lm initial output at 3500K 128lm/W
4750lm initial output at 4000K 132lm/W
95 CRI 1050mA
3650lm initial output at 2700K 102lm/W
3850lm initial output at 3000K 107lm/W
4150lm initial output at 3500K 115lm/W
4300lm initial output at 4000K 120lm/W
Light Distribution
9.8mm LES COB
Very Narrow 11.6°
Medium 34.7°
Flood 42.8°
Wide Flood 45.3°
14.5mm LES COB
Narrow 13.8°
Medium 38.9°
Flood 45.1°
Wide Flood 52.6°
Lumen Maintenance L70 B0 F0 50,000 hours
Colour Consistency 1 x 2 SDCM
Colour Maintenance ± 0.003 ∆u’v’
IP Rating IP66
Weight 2.37kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP66
Weight: 2.37kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
9.8mm LES COB
90 CRI (1513lm initial output)
Very Narrow 11.6°
Medium 34.7°
Flood 42.8°
Wide Flood 45.3°
9.8mm LES COB
95 CRI (1341lm initial output)
Very Narrow 11.6°
Medium 34.7°
Flood 42.8°
Wide Flood 45.3°
14.5mm LES COB
90 CRI (4300lm initial output)
Narrow 13.8°
Medium 38.9°
Flood 45.1°
Wide Flood 52.6°
14.5mm LES COB
95 CRI (3850lm initial output)
Narrow 13.8°
Medium 38.9°
Flood 45.1°
Wide Flood 52.6°
BUG Report
The Toad Type X product is adjustable and lockable but in some instances is used pointing straight down from trees, street columns or other architectural details. In such instances we can prepare BUG reports for the CRI, output and beam angle configuration you require. Please email us to request a BUG report
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000391
Soft spread lens to product a soft elliptical beam
Order no. ITY-000426
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000427
Diffuser lens used for softening and widening beams
Order no. ITY-000426
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000396
This product can accept one of the following attachments:
Removeable slash cut snoot.
Order no. ITY-003115
