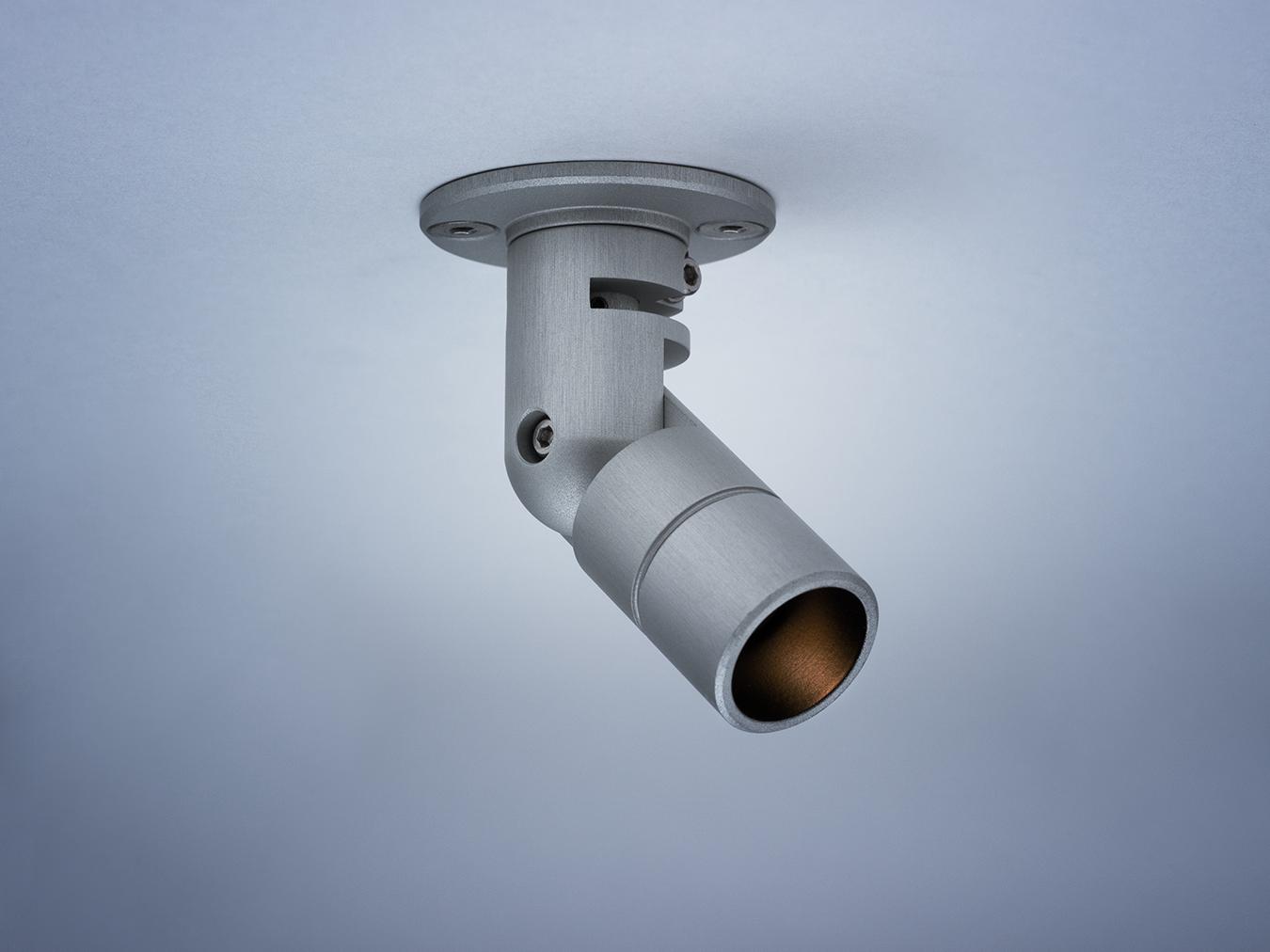

Surf Type S
Miniature lighting fixture for Museum, Gallery and Retail displays.
Product Description
The Surf Type S is a compact adjustable and highly efficient miniature fixture designed to provide precise illumination for Museum, Gallery and Retail applications.
Constructed from precision-machined recycled aluminium, the system features an anodised finish for enhanced durability and aesthetics.
Key Features

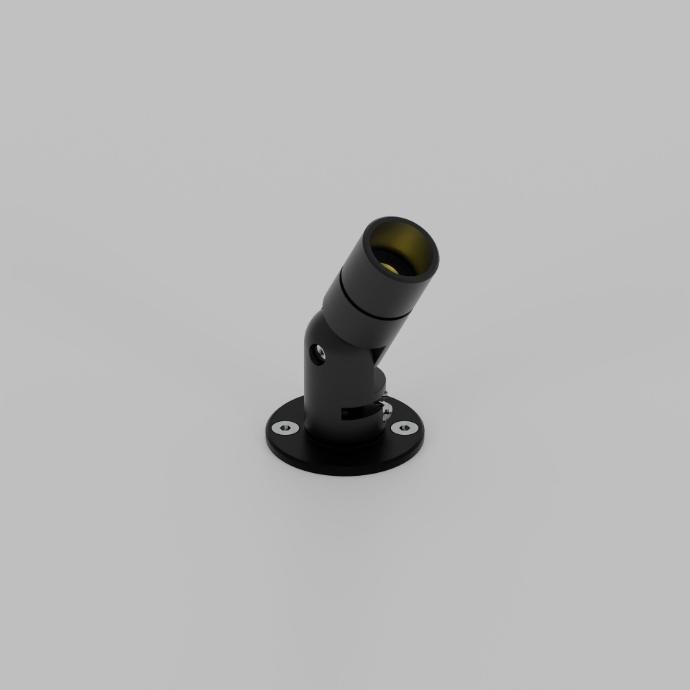

• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed interchangeable optics available ranging from Very narrow to Wide Flood to elliptical beam options.
• Lockable tilt and pan mechanisms.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs
Miniature lighting fixture for Museum, Gallery and Retail displays.
Product Description
The Surf Type S is a compact adjustable and highly efficient miniature fixture designed to provide precise illumination for Museum, Gallery and Retail applications.
Constructed from precision-machined recycled aluminium, the system features an anodised finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed interchangeable optics available ranging from Very narrow to Wide Flood to elliptical beam options.
• Lockable tilt and pan mechanisms.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
Surf type s - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Type S
Initial output
95 CRI 1.4W 2.75Vf at 500mA
2700K • 139lm • 99lm/W
3000K • 148lm • 105lm/W
3500K • 158lm • 112lm/W
4000K • 169lm • 120lm/W
Light distribution
Very Narrow 12.5º
Narrow 15.7º
Medium 22.3º
Flood 40º
Wide Flood 54º
Elliptical 19.8º x 33.9º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.034kg
Lumen
Maintenance: L70 B50 >66,000 hours
IP Rating: IP20
Weight: 0.39kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (148lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
Related Projects

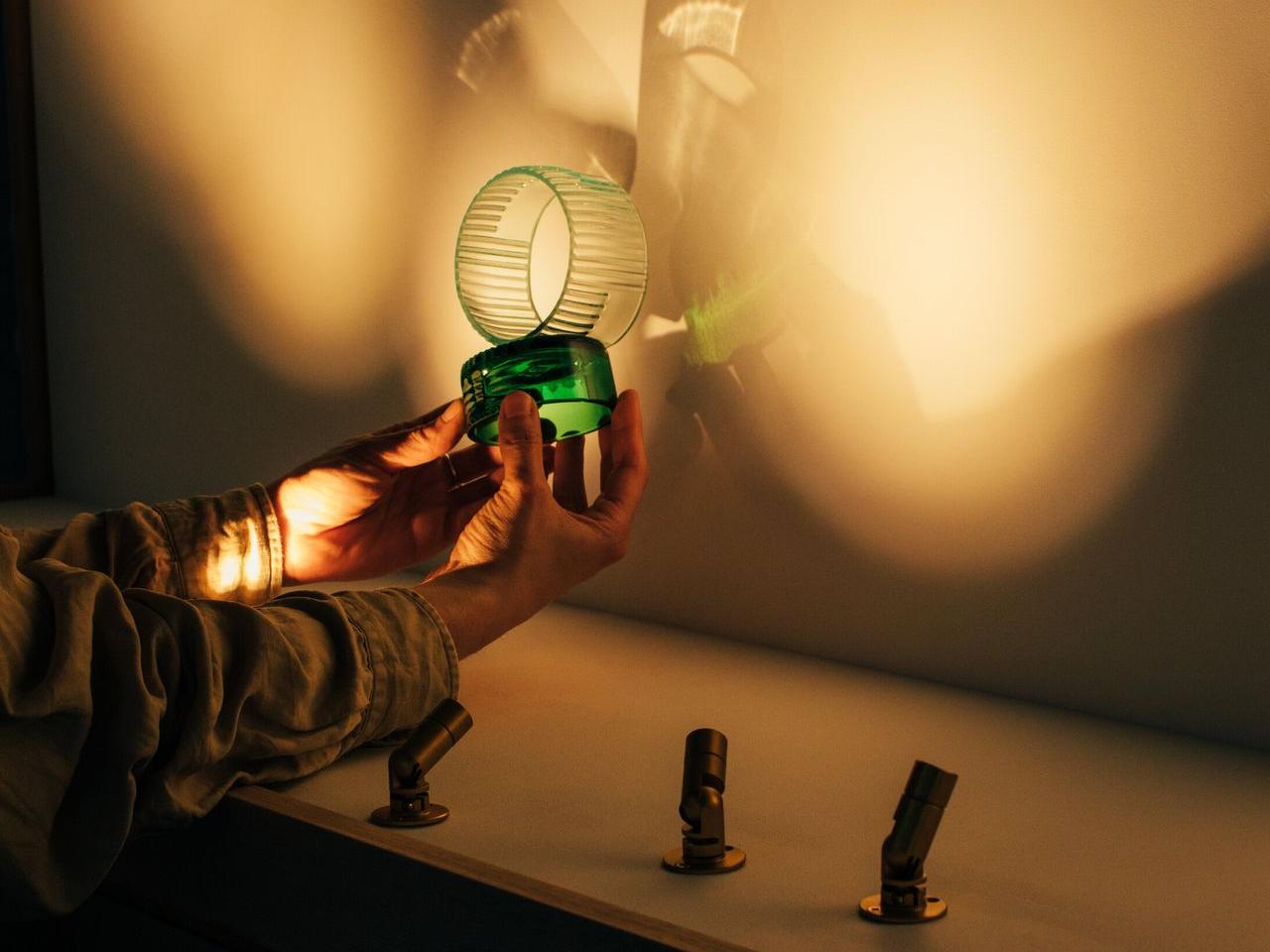

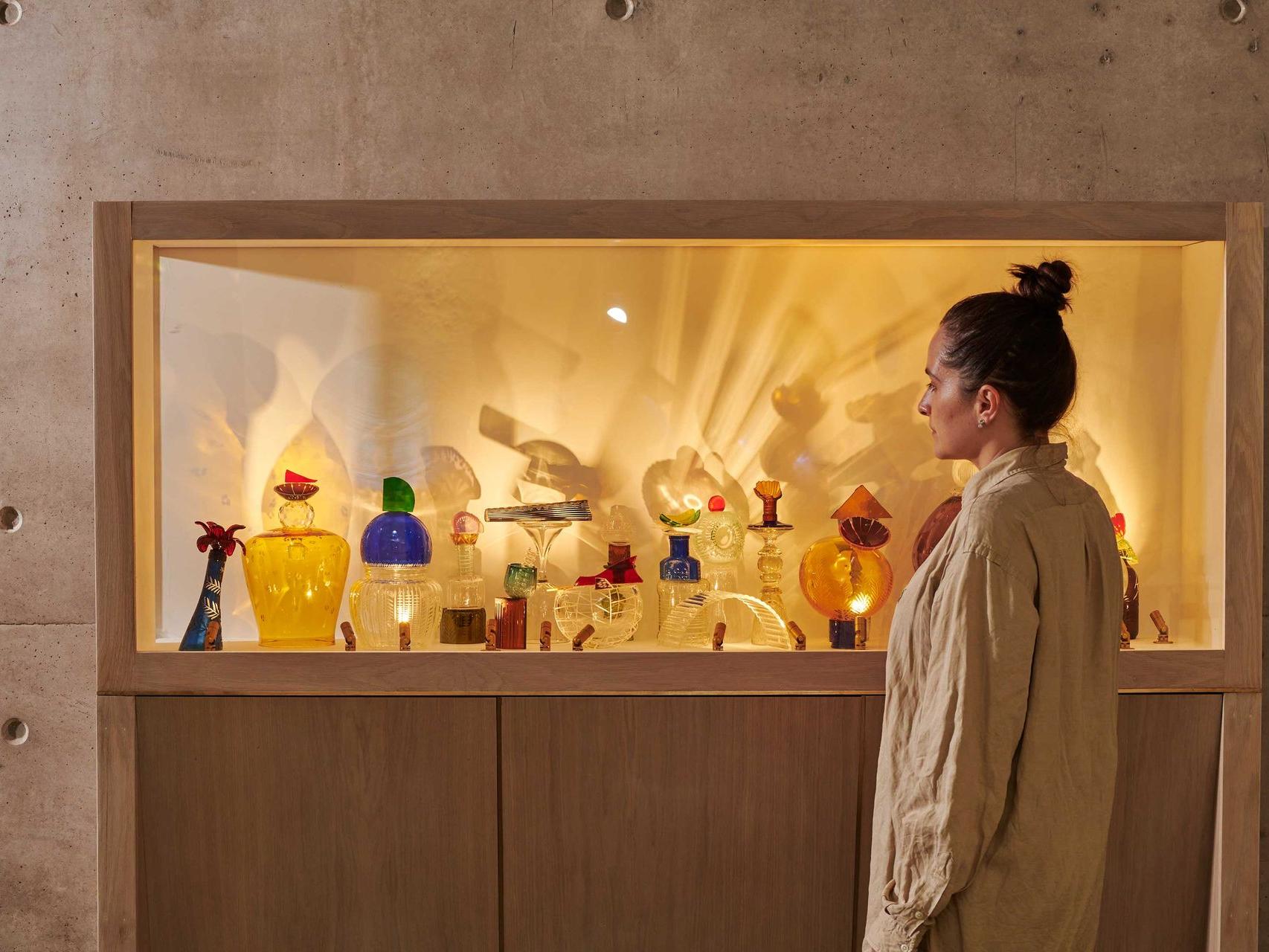

Our Common Humanity, Scottish Parliament
Artist: Juli Bolaños-Durman
Photography: Shannon Tofts and Laura Meek
Minerva's Head, Roman Baths
Showcases: Click Netherfield
Photography: Freia Turland
Gary Bunt Travelling Exhibition, Liverpool Cathedral
