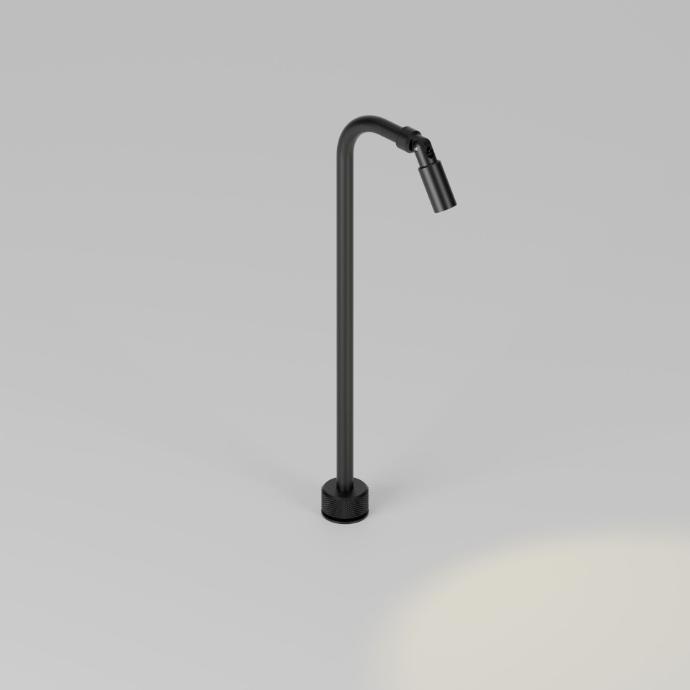

Surf S Stick
Miniature lighting fixture for Museum, Gallery and Retail displays.
Product Description

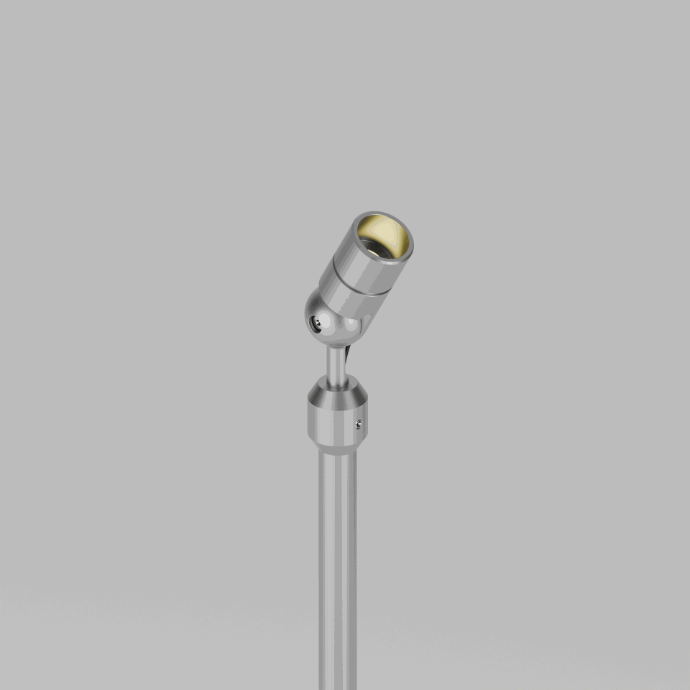

The Surf S Stick is a compact adjustable and highly efficient miniature fixture designed to provide precise illumination for Museum, Gallery and Retail applications.
The stem length can be specified to order with both pan and tilt locking mechanisms.
Constructed from precision-machined recycled aluminium, the system features an anodised finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed interchangeable optics available ranging from Very narrow to Wide Flood to elliptical beam options.

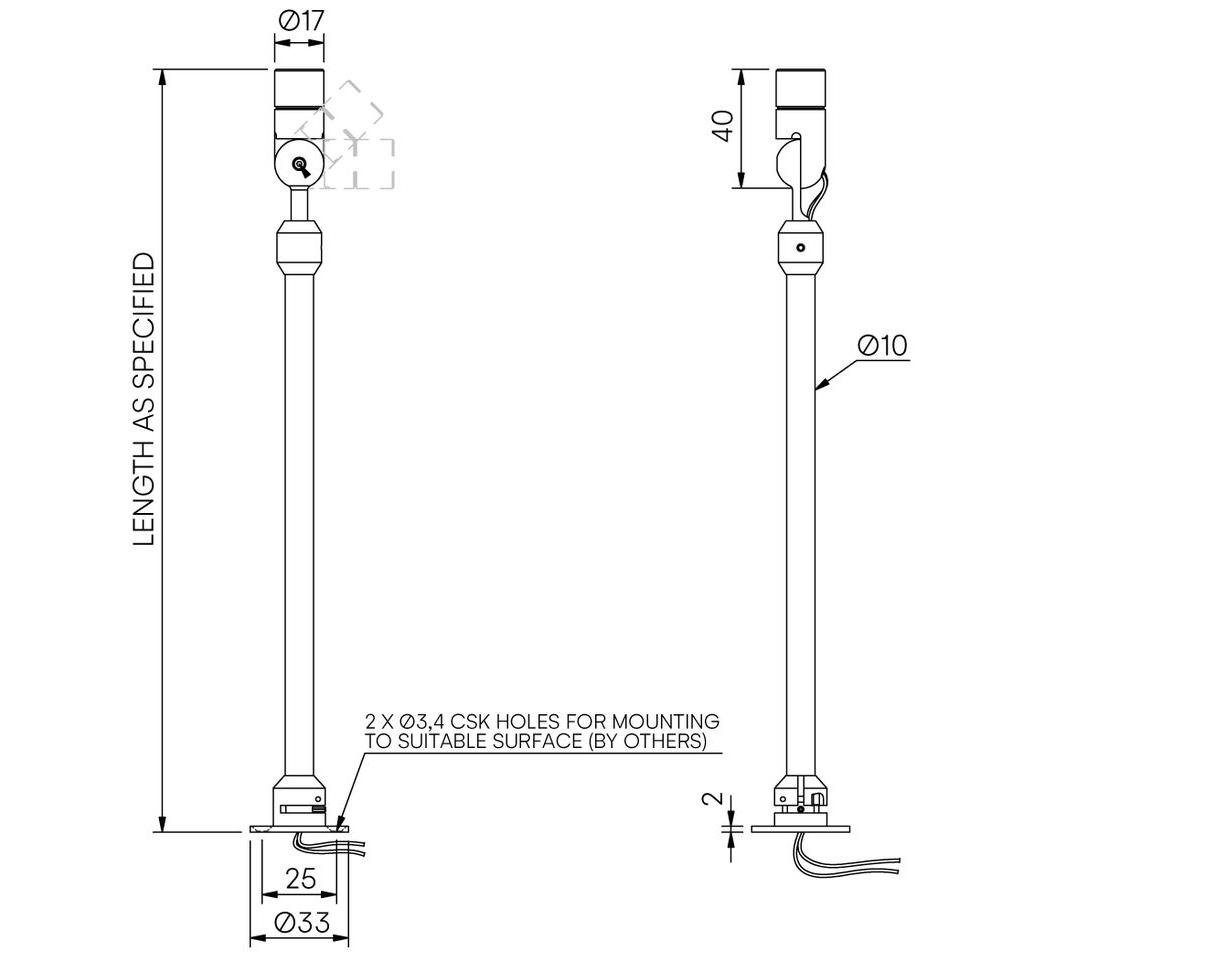

• Height specifiable stem length.

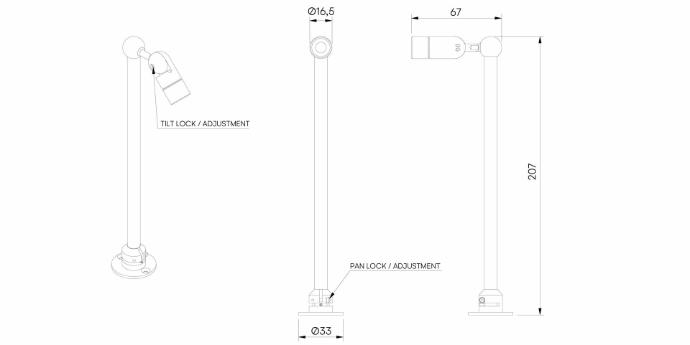

• Lockable Tilt and Pan mechanisms.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 97 CRI LEDs
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
surf s stick - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant current LED driver required
Power
1.4W
Vf 2.85V
Technical
Light Source
Type S
95 CRI 500mA
137lm initial output at 3000K 97.9lm/W
Light Distribution
Very Narrow 12.7°
Narrow 16.1°
Medium 25.2°
Flood 39.4°
Wide Flood 46.7°
Asymmetric 39.3° x 26.2°
Lumen Maintenance L70 B50 >66,000 hours
IP Rating IP20
Weight 0.056kg
Lumen
Maintenance: L70 B50 >66,000 hours
IP Rating: IP20
Weight: 0.056kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (137lm initial output)
Very Narrow 12.7°
Narrow 16.1°
Medium 25.2°
Flood 39.4°
Wide Flood 46.7°
Asymmetric
26.2° x 39.3°
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives

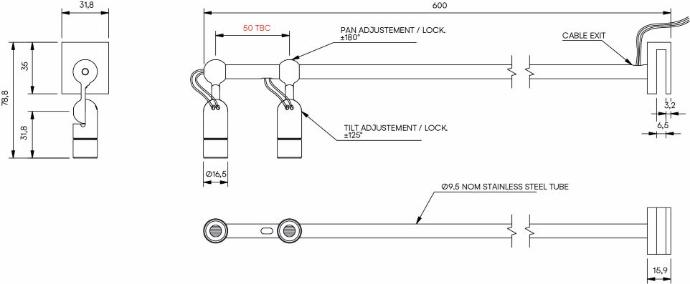

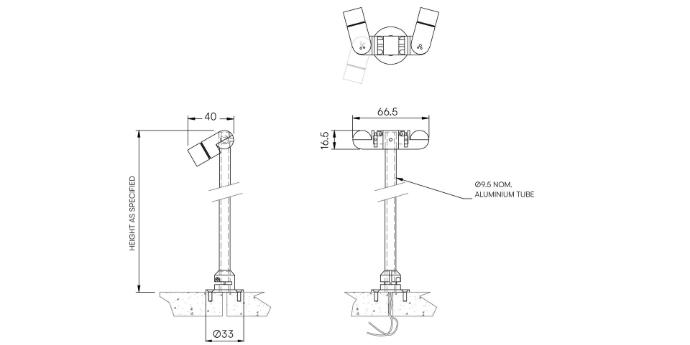

We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.

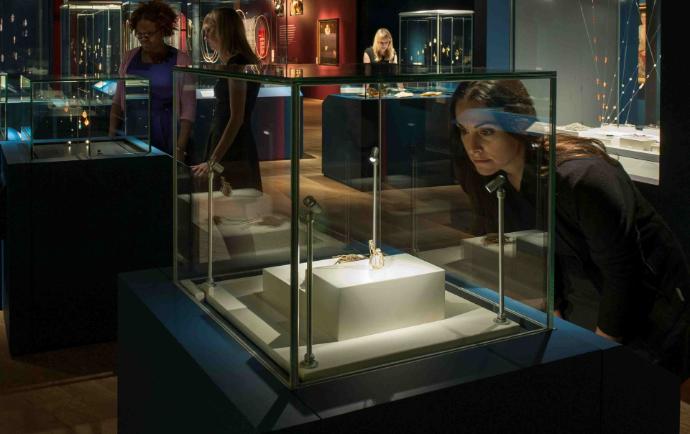

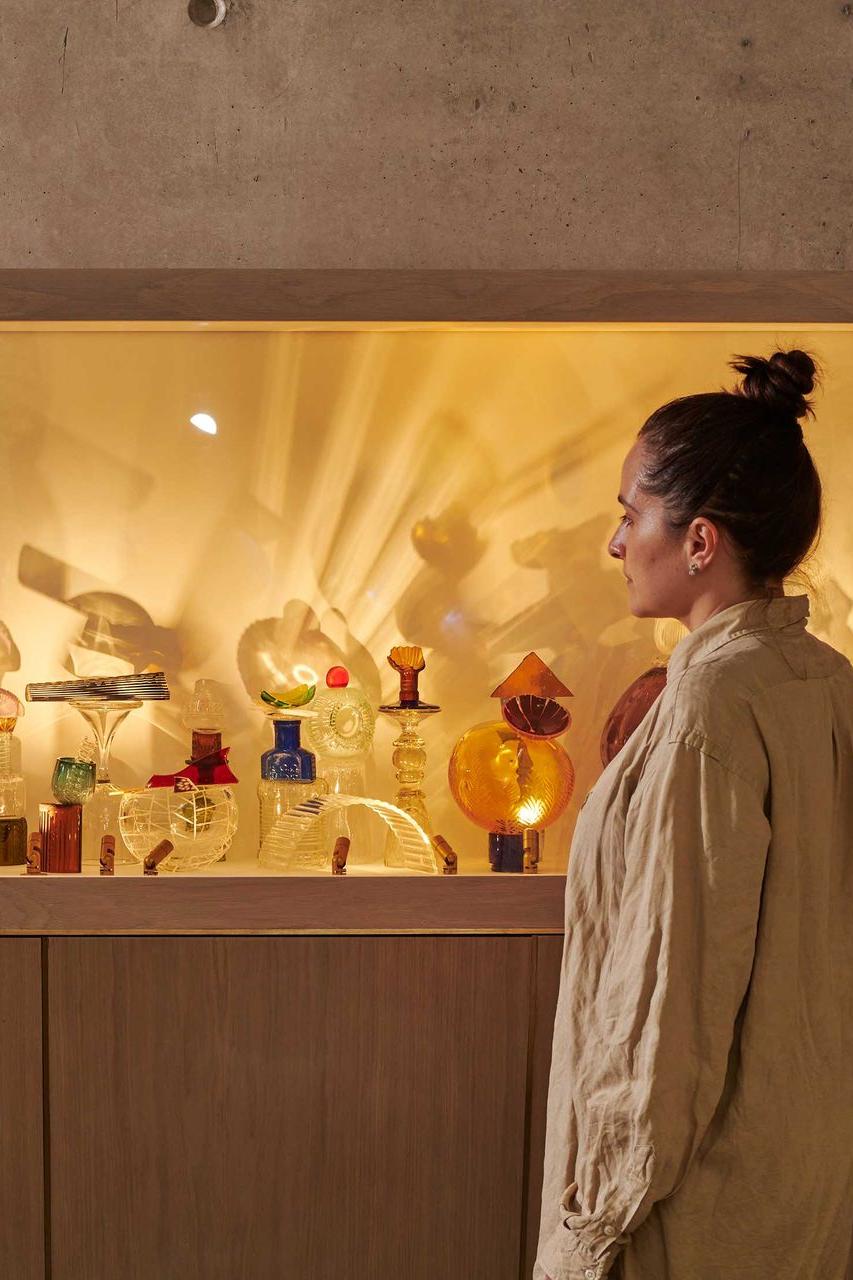

Related Projects
