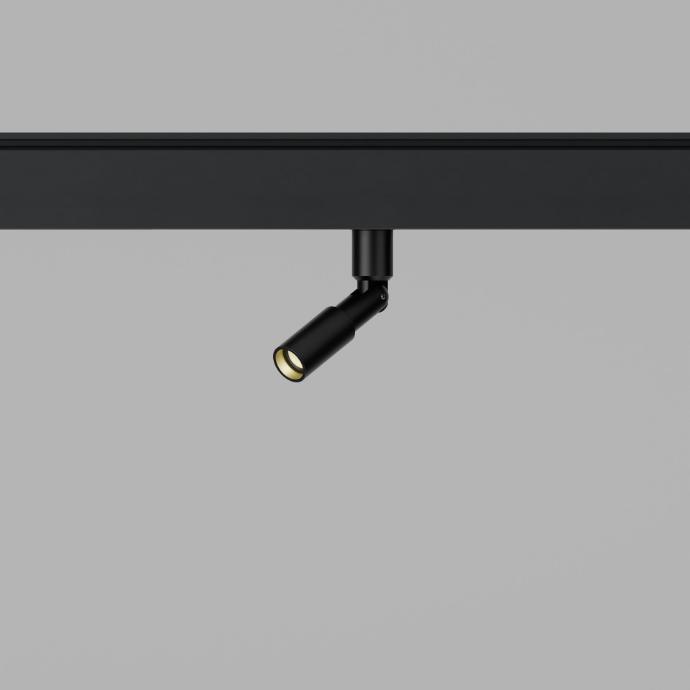

Protozoa Track (Single Head)
Micro lighting fixture for Museum, Gallery and Retail displays.
Product Description
The Protozoa Track single is a compact adjustable and highly efficient micro fixture designed to provide precise illumination for Museum, Gallery and Retail applications. With its precision made glass Zoom lens, allowing for beam adjustment from very narrow to wide flood. Compatible with 48V Stucchi Multisystem EVO track, this spotlight includes integral dimming control gear.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Adjustable beam angles with innovative glass Zoom optics.
• Advanced dimming options: DALI, 0-10V and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 90 CRI LEDs.
| CRI: 90 |
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
protozoa track (single head)
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
48V supply to Low Voltage Stucchi track
Power
0.6W
2.9Vf
Technical
Light Source
Type P
90 CRI 200mA
52lm initial output at 3000K 86.6lm/W
Light Distribution
Zoom 13.1º - 59.5º
IP Rating IP20
Weight 0.42kg
IP Rating: IP20
Weight: 0.42kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
90 CRI (423lm initial output)
Very Narrow Extent 13.1º
Wide Flood Extent 59.5º
Photometry
To access our photometry files please view this page from a desktop device.
