Protozoa Semi-Recessed

https://www.stoanelighting.com/web/image/product.template/10363/image_1920?unique=60355ea
Micro fixed recessed lighting fixture for Museum, Gallery and Retail displays.

Product Description

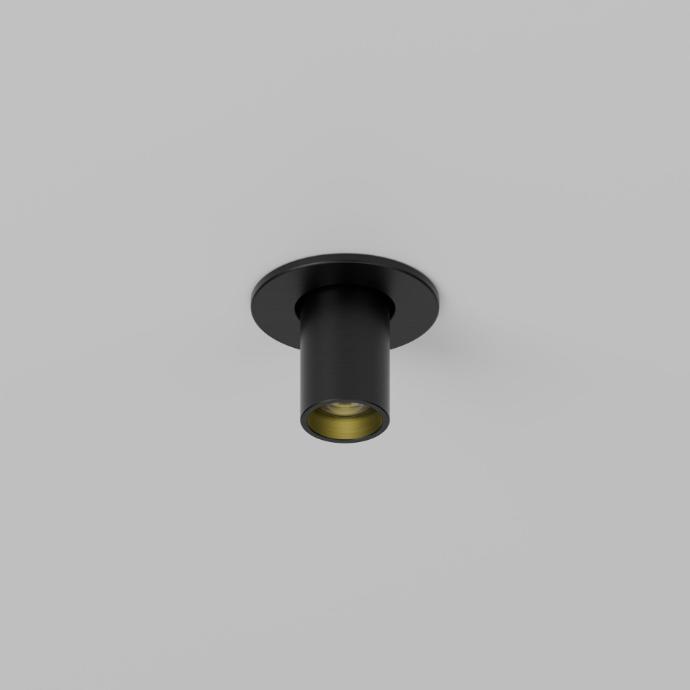

The Protozoa Semi Recessed is a fixed compact recessed and highly efficient micro fixture designed to provide precise illumination for Museum, Gallery and Retail applications. With its precision made glass Zoom lens, allowing for beam adjustment from very narrow to wide flood.

Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Adjustable beam angles with innovative glass Zoom optics.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 90 CRI LEDs

135.0 GBP £ 135.00

£ 135.00

Not Available For Sale

  • CCT
  • CRI
  • Beam
  • Finish
    Please contact us for custom finishing requirements.
  • Mounting Method
  • Cable Length

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000090-0004
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

protozoa semi-recessed (retaining ring)

protozoa semi-recessed (spring clip)

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

Protozoa Semi-recessed - 2.8​​

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​​

LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​ ​​




Downloads


Protozoa Semi-Recessed Instructions

PDF​​​​

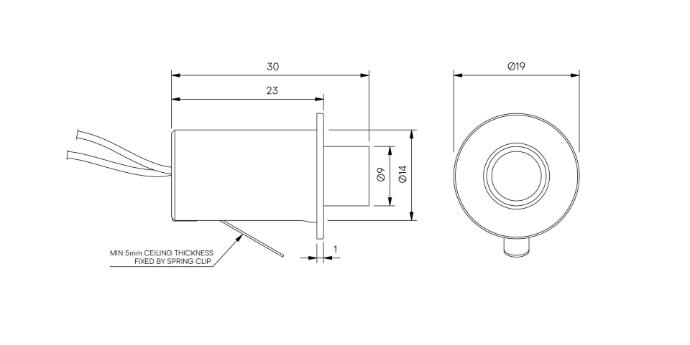

Protozoa Semi-Recessed Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
0.6W
2.9Vf

Technical

Light Source

Type P

90 CRI 450mA

52lm initial output at 3000K 86.6lm/W



Light Distribution

Zoom ​13.1º - 59.5º

IP Rating ​​IP20

Weight 0.011kg

Cut out ​Ø15mm

IP Rating: ​​IP20

Weight 0.011kg

Cut out Ø15mm


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

Photometry

To access our photometry files please view this page from a desktop device.
