Protozoa

https://www.stoanelighting.com/web/image/product.template/10361/image_1920?unique=8176c4f
Micro lighting fixture for Museum, Gallery and Retail displays.

Product Description
The Protozoa is a compact adjustable and highly efficient micro fixture designed to provide precise illumination for Museum, Gallery and Retail applications. With its precision made glass Zoom lens, allowing for beam adjustment from very narrow to wide flood. Provided with a threaded base to allow flexibility for various mounting options.

Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Adjustable beam angles with innovative glass Zoom optics.
• Flexible mounting system providing various standard and special mounting options.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 90 CRI LEDs

150.0 GBP £ 150.00

£ 150.00

Not Available For Sale

  • CCT
  • Beam
  • Finish
    Please contact us for custom finishing requirements.
  • Mounting Method
  • Cable Length

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number:
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

protozoa

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

protozoa - ​​​​​​​​​​​​2.8

LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​​ ​




Downloads


Protozoa Instructions

PDF​​​​

Protozoa Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
0.6W

2.9Vf


Technical

Light Source

Type P

90 CRI 200mA

52lm initial output at 3000K 86.6lm/W



Light Distribution

Zoom ​​13.1º - 59.5º

IP Rating IP20

Weight 0.008kg

IP Rating: IP20

Weight: 0.008kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

90 CRI (52lm initial output)

Photometry

To access our photometry files please view this page from a desktop device.


Derivatives

We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.


Related Projects

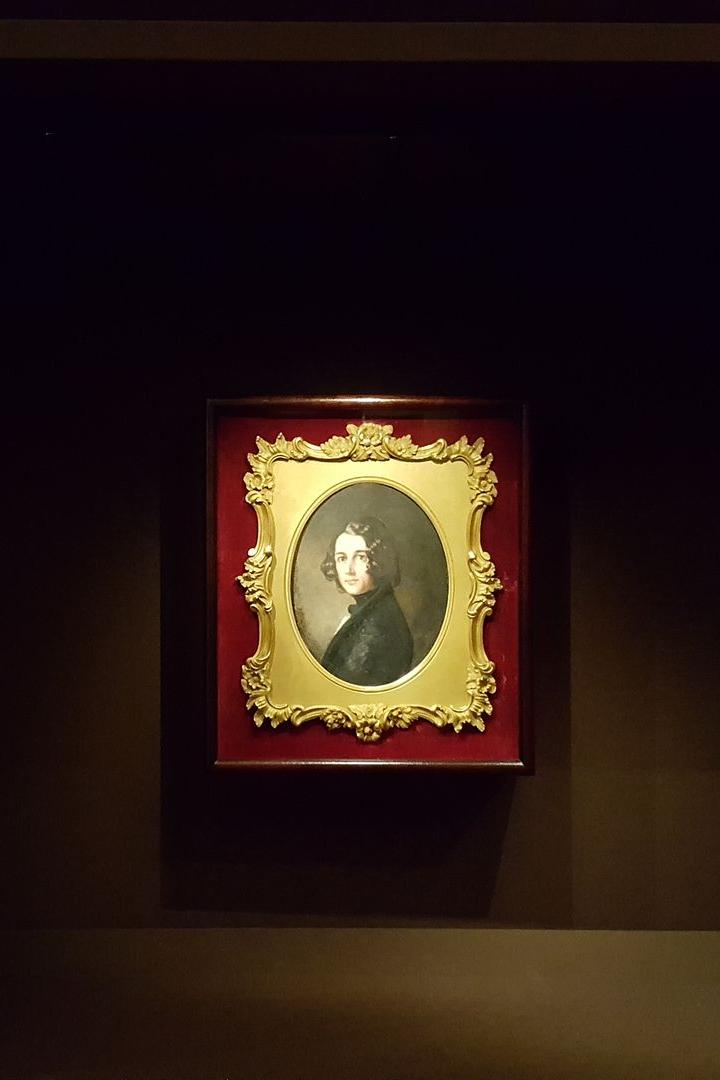

Charles Dickens Museum
Lighting Design: Lucy Gaskell, CQ Lighting
Photography: Lucy Gaskell, CQ Lighting
