Plug-in Surf S Channel

order code: product-title.colourtemp.length.optic.finish

example: plug-in-surf-s-channel.3000K.500mm.medium.clear anodised

Back to All

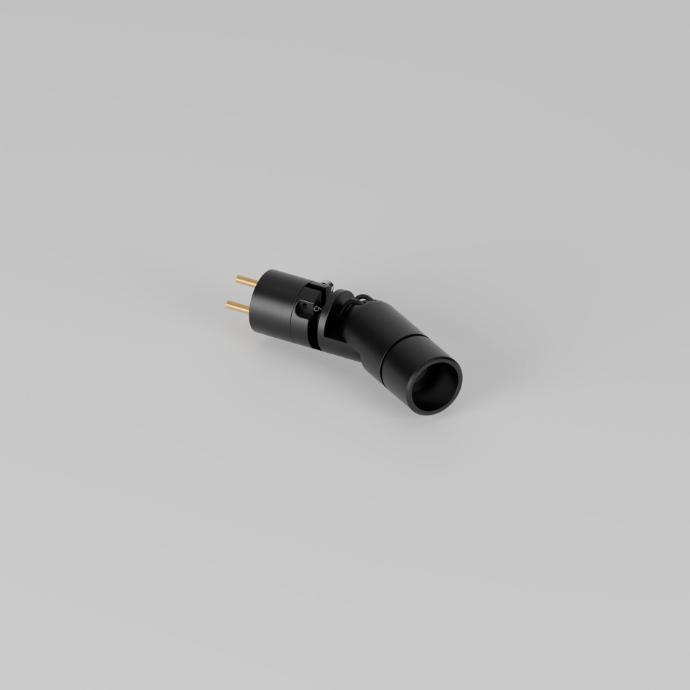

Plug and play system for discreetly integrating the extremely versatile Surf Type S head at custom pitch into showcases with minimum fuss, maximum flexibility and easy maintenance. Maximum length 3m.

Light Source Type
  • Discrete LED
Usage Type
  • Interior Use Only
Mounting Method
  • Surface
Material
  • Machined Aluminium
Lamp
  • Type S (1 x Osram Oslon Square)
CRI Ra
  • Min. 90 (typ.95)
Initial Output (Wattage)
  • 100lm at 350mA (1W)
  • 137lm at 500mA (1.4W)
Wattage
  • 1W at 350mA
  • 1.4W at 500mA
IP Rating
  • N/A (interior use only)
Finish
  • Anodised
  • Painted
Dimming
  • 0-10V
  • DMX
  • DALI
  • Mains Dim
  • BLE (Bluetooth Low Energy)
Supply
  • Remote Constant Current LED driver required
Locking
  • 1.5mm Allen key required
Pan & Tilt
  • ±90º Tilt
Optic
  • Very Narrow (0º - 12º)
  • Narrow (12º - 20º)
  • Medium (20º - 30º)
  • Flood (30º - 50º)
  • Wide Flood (51º +)
  • Asymmetric
