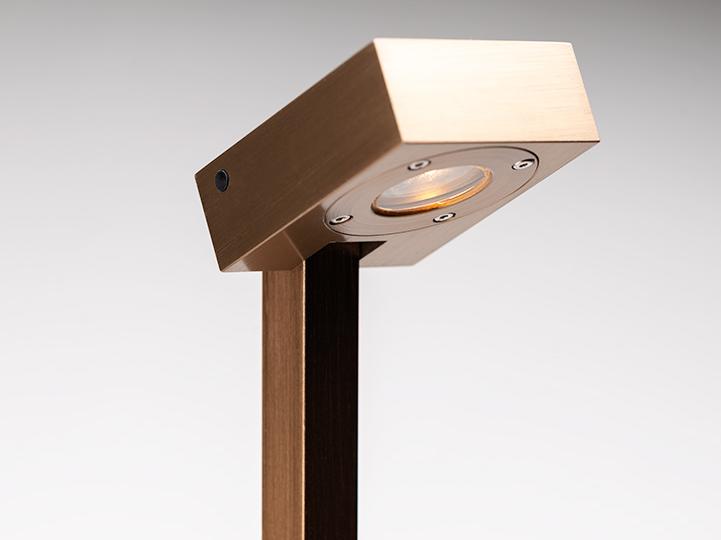

Path Bandit

https://www.stoanelighting.com/web/image/product.template/10364/image_1920?unique=a4cb837
Low level exterior rated adjustable spike light, providing soft and wide light distribution for pathways.

Product Description
The Path Bandit is an IP66 rated pathway light. Machined from recycled aluminium. It is useful for various applications such as pathway and step lighting and can be used both internally or externally.

Key Features
• Tilt adjustable and lockable luminaire head.
• Soft and wide beam wash effect.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.

250.0 GBP £ 250.00

£ 250.00

Not Available For Sale

  • CCT
  • Length
    Height can be specified to order.
  • Finish
    Please contact us for custom finishing requirements
  • Cable Length

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000100-0012
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

path bandit

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem

Path Bandit - 2.7​​

LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​ ​




Downloads


Path Bandit Instructions

PDF​​​​

Path Bandit Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
2W

2.9Vf

Technical

Light Source

SL Star

95 CRI 700mA

181lm initial output at 3000K 90.5lm/W



Light Distribution

Full ​82.6°



Lumen Maintenance L70 B50 >66,000 hours

IP Rating ​​IP66

Weight 0.206kg

Lumen
Maintenance
: L70 B50 >66,000 hours

IP Rating: IP66

Weight: 0.206kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

95 CRI (181lm initial output)

Photometry

To access our photometry files please view this page from a desktop device.
