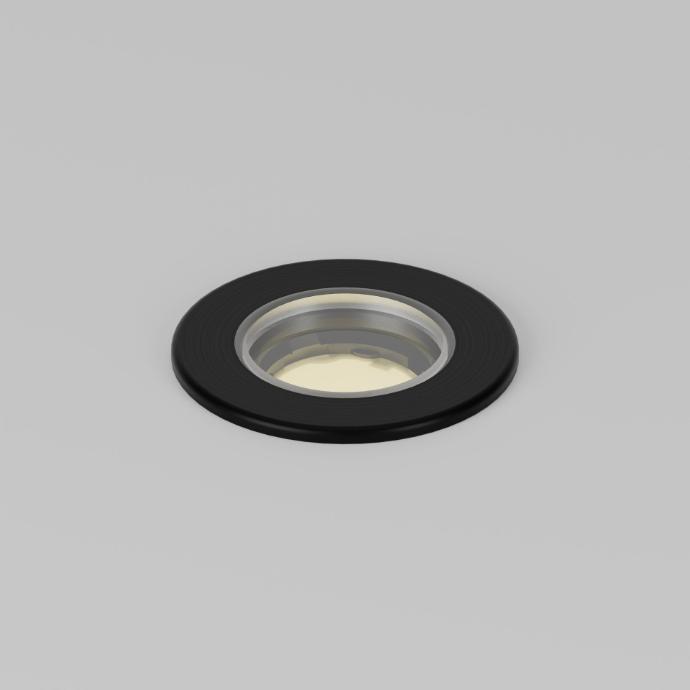

Mole
Miniature exterior in-ground recessed fixed uplighter, for enhancing architectural details, gardens and pathways.
Product Description
The Mole is an IP66 rated fixed exterior up light, designed to highlight textures, add depth to trees, sculptures, facades and other outdoor features as well as for use indoors. Perfect for both commercial and residential applications, ideal for bringing spaces to life after dark.
Machined from recycled aluminium with an anodised finish for enhanced durability and a toughened glass lens.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Interchangeable optics to allow Very Narrow to Wide Flood with the addition of secondary lenses to create elliptical beam options.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.
• First fix Installation sleeve available for mounting.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
mole
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant current LED driver required
Power
2W
2.9Vf
Technical
Light Source
SL Star
95 CRI 700mA
181lm initial output at 3000K 90.5lm/W
Light Distribution
Very Narrow 11.7°
Narrow 13.1°
Medium 20.9°
Flood 31.7°
Wide Flood 62.7°
Asymmetric 10.3° x 46.1°
Lumen Maintenance L70 B50 > 66,000 hours
IP Rating IP66
Weight 0.03kg
Lumen
Maintenance: L70 B50 > 66,000 hours
IP Rating: IP20
Weight: 0.03kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (181lm initial output)
Very Narrow 11.7°
Narrow 13.1°
Medium 20.9°
Flood 31.7°
Wide Flood 62.7°
Asymmetric 10.3° x 46.1°
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
