Module Star

https://www.stoanelighting.com/web/image/product.template/10320/image_1920?unique=8d85a07

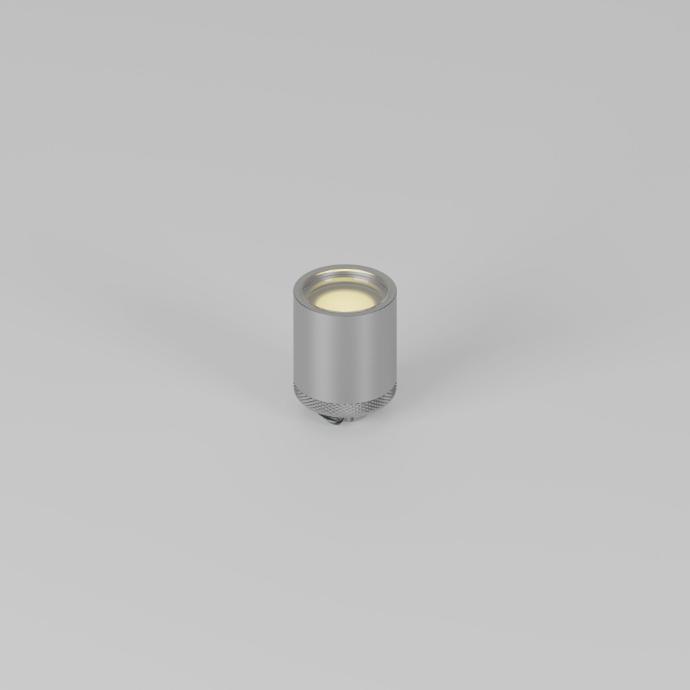

Compact recessed fixed focus module, for enhancing both interior and exterior architectural details. Capable of recessing into walls, ceilings and furniture.

Product Description
The Module Star is an IP66 rated fixed module, suitable for recessing into walls, ceiling or furniture, it can also be integrated into various architectural and lighting details via an M3 Stud or magnet.

Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request. Includes toughened glass lens.
• Interchangeable optics to allow Narrow to Wide Flood to elliptical beam options.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.

125.0 GBP £ 125.00

£ 125.00

Not Available For Sale

  • CCT
  • Beam
  • Finish
    Please contact us for custom finishing requirements
  • Mounting Method

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000019-0011
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

module star​​​​​

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

Module Star - 2.8

LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​​​ ​​




Downloads


Module Star Instructions

PDF​​​​

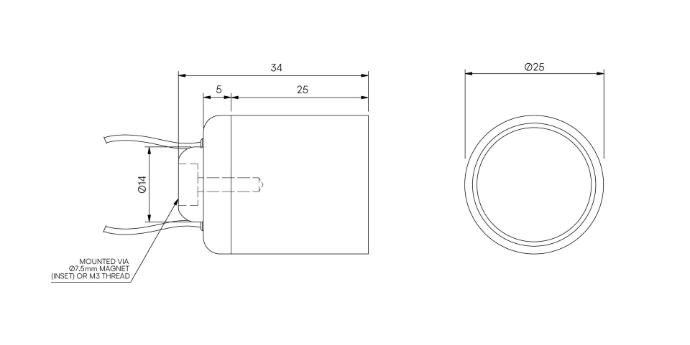

Module Star Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
2W

2.9Vf

Technical

Light Source

SL Star

95 CRI 700mA

181lm initial output at 3000K 90.5lm/W



Light Distribution


Very Narrow ​10.4°
Narrow ​13.4°
Medium 21.2°
Flood 30.9°
Wide Flood 70°
Asymmetric  ​10.6° x 45°

Lumen Maintenance L70 B0 >66,000 hours

IP Rating IP66

Weight ​0.04kg

Lumen
Maintenance
: L70 B0 >66,000 hours

IP Rating: IP66

Weight: 0.04kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.

Photometry
