LED Goal
Linear lighting system, for Museum, Gallery and Retail display lighting.
Product Description

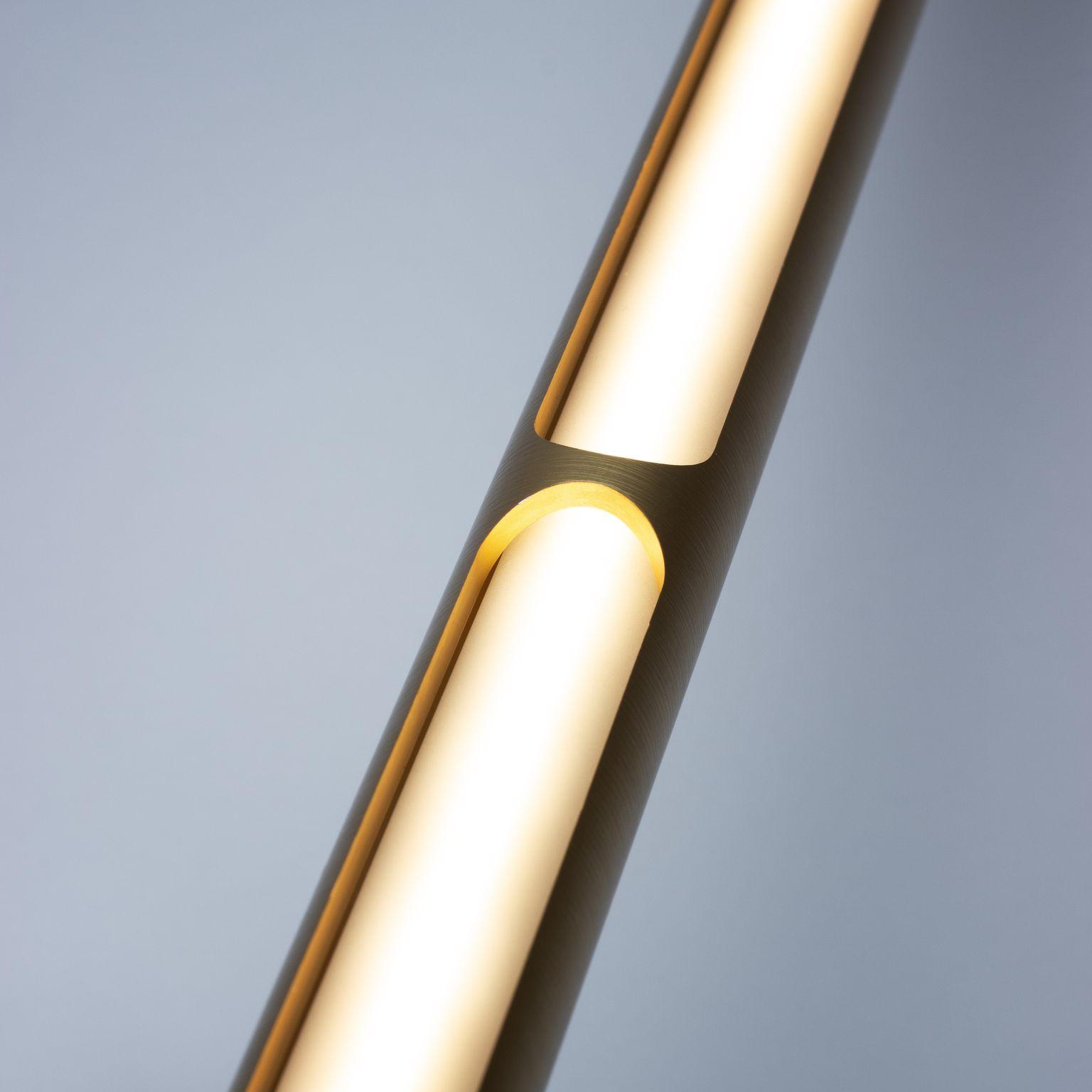

The LED Goal is a linear profile designed to provide illumination for Museum, Gallery and Retail applications when wall mounted or library/ reading room applications when vertically mounted. A soft diffuse light is provided via a customised frosted diffuser. The product includes tilt rotation and a discreet locking system.

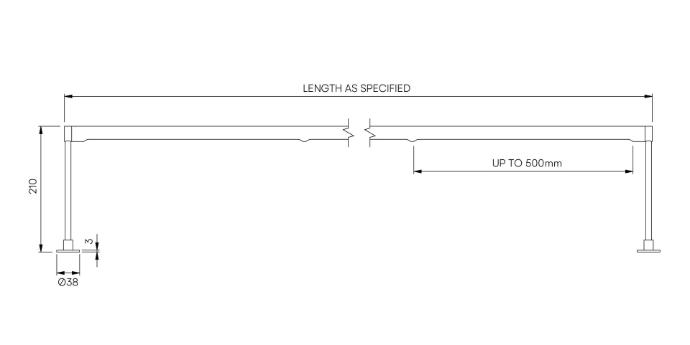

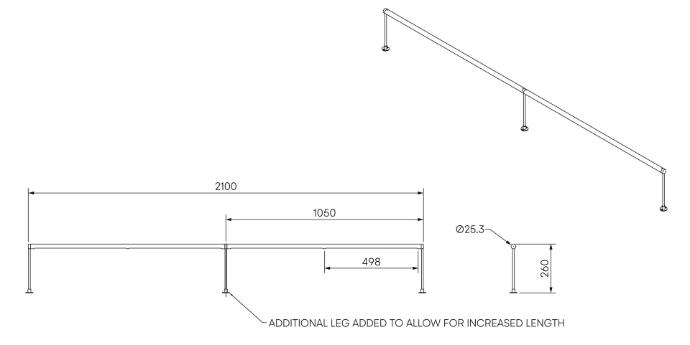

The product length and height can be specified and longer lengths can be manufactured using additional modules and supporting legs.
There are typically 2 x apertures per metre.
Key Features
• Sustainable construction: made from recycled aluminium.
• Both the length and height can be specified.
• High and Low output options available with a custom frosted diffuser for a soft lit effect.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 90 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LED Goal - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant voltage 24V DC PSU required
Power
Standard Output LED Strip
High Output LED Strip
16.8W/m
24V
31.2W/m
24V
Technical
Light Source
Standard Output LED Strip
90 CRI
1496lm/m initial output at 3000K 89lm/W
High Output LED Strip
90 CRI
2702lm/m initial output at 3000K 86.6lm/W
Light Distribution
Asymmetric 105.8°x107°
Lumen Maintenance L90 B10 > 54,000 hours
Colour Consistency 2SDCM
IP Rating IP20
Weight 2.3kg (1.2m)
Lumen Maintenance: L90 B10 > 54,000 hours
IP Rating: IP20
Weight: 2.3kg @ 1.2m
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
