Iris Type S

https://www.stoanelighting.com/web/image/product.template/10354/image_1920?unique=d4c54d6
Miniature adjustable recessed lighting fixture for Museum, Gallery and Retail displays.

Product Description
The Iris Type S is an IP65 rated adjustable compact recessed and highly efficient fixture designed to provide precise illumination for Museum, Gallery and Retail applications. Iris Type S is suitable where an airtight seal is required.

Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed optics can be easily swapped for multiple beam options
• Snoot and Cowl options available.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs

155.0 GBP £ 155.00

£ 155.00

Not Available For Sale

  • CCT
  • Beam
  • Finish
    Please contact us for custom finishing requirements. Eyeball cannot be painted and will remain clear or black anodised.
  • Attachments
  • Mounting Method
    Spring clip suitable for mounting from below. Retaining ring used for applications such as showcase where access from behind is possible.

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000071-0020
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

iris type s (retaining ring)

Iris Type s (spring clip)​​​​

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

iris type s - 2.7


LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

​ Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.




Downloads


Iris Type S Instructions

PDF​​​​

Iris Type S - Spring Clip Drawing

PDF​​​​

DXF

Iris Type S Retaining Ring Drawing

PDF​​​​

DXF


Iris Type S with Slash cut Snoot
Spring Clip Drawing

PDF​​​​

DXF

Iris Type S with Slash cut Snoot
Retaining Ring Drawing

PDF​​​​

DXF

Iris Type S with Straight Snoot
Spring Clip Drawing

PDF​​​​

DXF


Iris Type S with Straight Snoot
Retaining Ring Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
1.4W

Vf 2.85V

Technical

Light Source

Type S

95 CRI 500mA

137lm initial output at 3000K 97.9lm/W



Light Distribution


Medium ​​28°
Flood ​​39.1°
Wide Flood ​68.9°
Asymmetric 27.4° x 43.3°​



Lumen Maintenance L70 B50 >66,000 hours

IP Rating IP65

Weight ​​0.041kg

Lumen
Maintenance
: L70 B50 >66,000 hours

IP Rating: IP65

Weight: 0.041kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.


Derivatives

We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.


Attachments

This product can accept one of the following attachments:

Photometry

To access our photometry files please view this page from a desktop device.

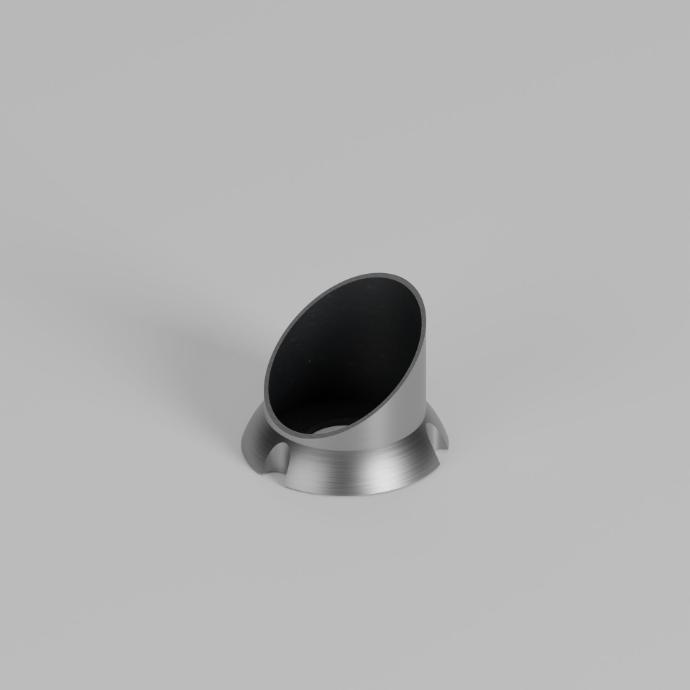

Iris Type S Snoot
Order no. Slash Cut Snoot (ITY-000168), Straight Snoot (ITY-000167)
