Frog Type X Zoom

https://www.stoanelighting.com/web/image/product.template/10508/image_1920?unique=d6097eb
High-performance exterior spotlight system, for surface mounting to illuminate exterior architectural details and landscape illumination.

Product Description

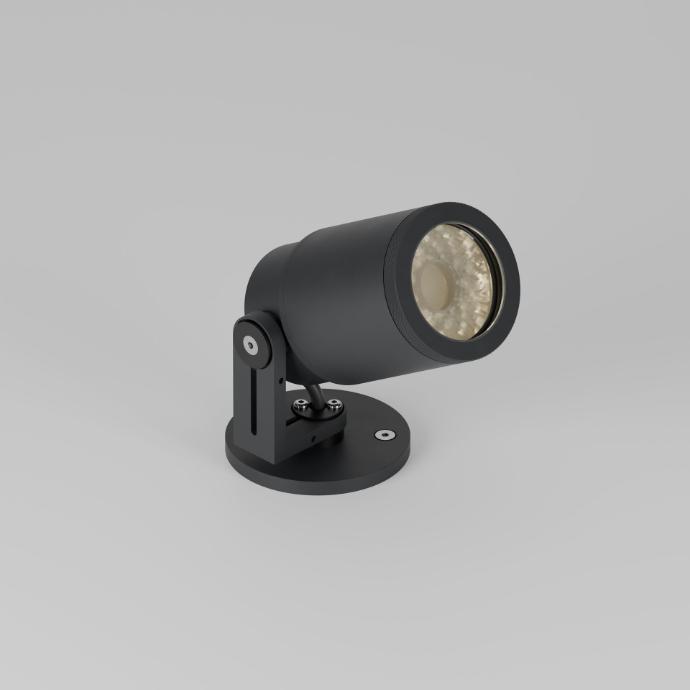

The Frog Type X Zoom is an IP66 exterior rated, adjustable and lockable spotlight.
Constructed from precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Provided with Zoom optics allowing adjustment from Narrow to Wide Flood beam options.

Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Zoomable beam allowing easy adjustment from Narrow to Wide Flood.

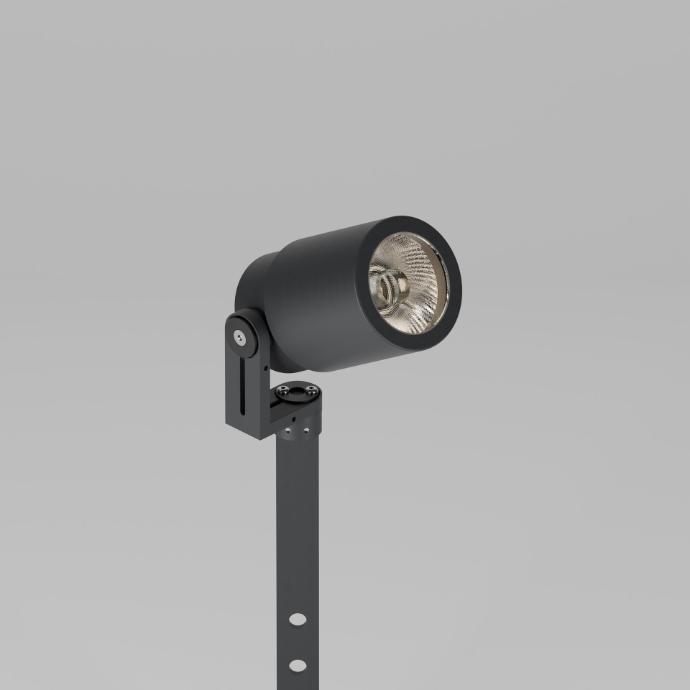

• Spike mount is also available.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.

490.0 GBP £ 490.00

£ 490.00

Not Available For Sale

  • Light source
  • CCT
  • CRI
  • Beam
  • Finish
    Please contact us for custom finishing requirements

This combination doesn't exist. Please choose another combination or contact the Specifier Support team to discuss a bespoke enquiry.

Part Number: STD-000372-0009
Print Variant Report

Compliance









Environmental

​TM65.2

​CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.

frog type x zoom

​TM66

​CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). ​An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.

Frog Type X Zoom - 2.8​​

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​​​​​​

LCA and EPD

A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.

Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.​​​​​​​ ​​




Downloads


Frog Type X Zoom Instructions

PDF​​​​

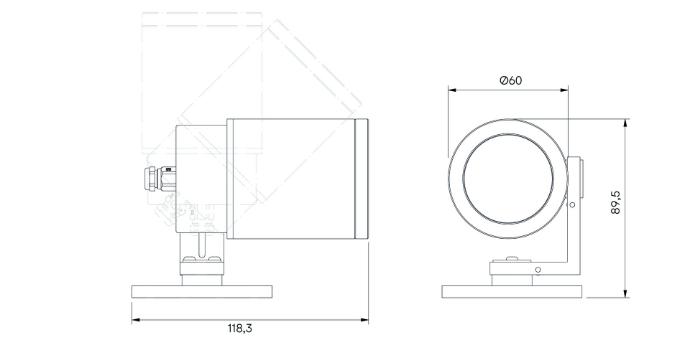

Frog Type X Zoom Drawing

PDF​​​​

DXF


Service Commitment




Electrical

Supply


Remote constant current LED driver required

Power
6mm LES COB
9.8mm LES COB

7.9W

31.6Vf

11.9W

34Vf

Technical

Light Source

6mm LES COB

90 CRI 250mA

840lm initial output at 2700K 107lm/W
873lm initial output at 3000K 111lm/W
939lm initial output at 3500K 119lm/W
978lm initial output at 4000K 124lm/W

95 CRI 250mA

751lm initial output at 2700K 95lm/W
798lm initial output at 3000K 101lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W

9.8mm LES COB

90 CRI 450mA

1433lm initial output at 2700K 120lm/W
1513lm initial output at 3000K 127lm/W
1582lm initial output at 3500K 133lm/W
1620lm initial output at 4000K 136lm/W

95 CRI 450mA

1276lm initial output at 2700K 107lm/W
1341lm initial output at 3000K 113lm/W
1421lm initial output at 3500K 119lm/W
1483lm initial output at 4000K 124lm/W


Light Distribution


6mm LES COB

Zoom ​16.6º - 44.3º

9.8mm LES COB

Zoom 20.7º - 43.6º

Lumen Maintenance L70 B0 F0 50,000 hours

Colour Consistency 1 x 2 SDCM

Colour Maintenance ± 0.003 ∆u’v’

IP Rating IP66

Weight 0.6kg

Lumen
Maintenance
: L70 B0 F0 50,000 hours

Colour
Consistency
1 x 2 SDCM

Colour Maintenance± 0.003 ∆u’v’

IP Rating: IP66

Weight: 0.6kg


Photometry

These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.


BUG Report

 The Frog Type X Zoom product is adjustable and lockable but in some instances is used pointing straight down from trees, posts or other architectural details. In such instances we can prepare BUG reports for the CRI, output and beam angle configuration you require. Please email us to request a BUG report
