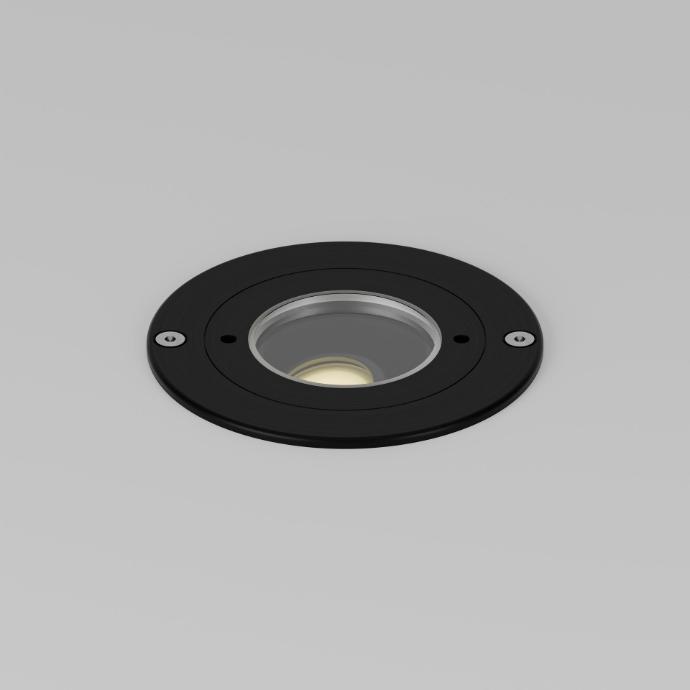

Baby Badger
Exterior in-ground recessed adjustable and lockable uplighter, for enhancing architectural details, gardens and pathways.
Product Description
The Baby Badger is a small form factor IP66 rated adjustable and lockable exterior up light, designed to precisely highlight textures, add depth to trees, sculptures, facades and other outdoor features. Perfect for both commercial and residential applications, ideal for bringing landscapes to life after dark.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Adjustment providing up to +/- 12° of tilt with locking mechanism and pan rotation.
• Interchangeable optics to allow Very Narrow to Wide Flood to elliptical beam options and a toughened glass lens.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 97 CRI LEDs.
• First fix Installation sleeve available for mounting.
Exterior in-ground recessed adjustable and lockable uplighter, for enhancing architectural details, gardens and pathways.
Product Description
The Baby Badger is a small form factor IP66 rated adjustable and lockable exterior up light, designed to precisely highlight textures, add depth to trees, sculptures, facades and other outdoor features. Perfect for both commercial and residential applications, ideal for bringing landscapes to life after dark.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Adjustment providing up to +/- 12° of tilt with locking mechanism and pan rotation.
• Interchangeable optics to allow Very Narrow to Wide Flood to elliptical beam options and a toughened glass lens.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 97 CRI LEDs.
• First fix Installation sleeve available for mounting.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Star
Initial output
95 CRI 2W 2.8Vf at 700mA
2700K • 179lm • 90lm/W
3000K • 192lm • 96lm/W
3500K • 204lm • 102lm/W
4000K • 219lm • 110lm/W
Light distribution
Very Narrow 8.8°
Narrow 12.6º
Medium 22.3º
Flood 34.3º
Wide Flood 68.1º
Elliptical 14.2º x 47.6º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP66
Weight
0.33kg
Lumen
Maintenance: L70 B50 >66,000 hours
IP Rating: IP20
Weight: 0.332kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (192lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
