Amanita
Exterior landscape accent lighting system, designed for both soft and hard landscaping applications, it can be used both in ground and on tabletops.
Product Description

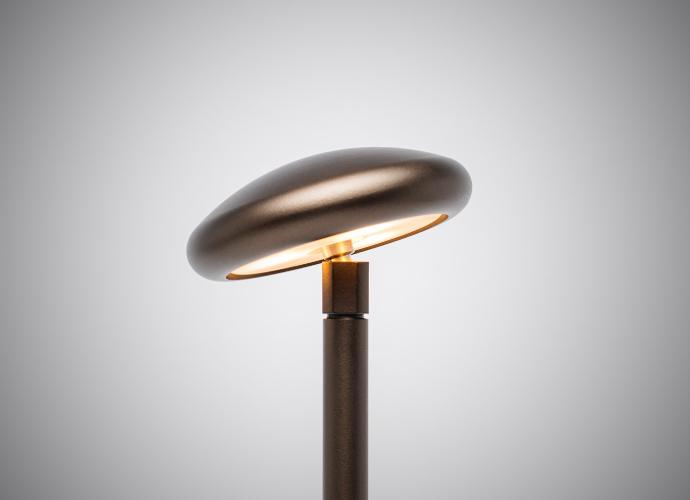

The Amanita is a small form factor IP66 rated exterior accent light, designed to provide a soft, low level, 360° lighting distribution via a customised impact resistant frosted diffuser.
When orientated directly downwards the product provides a BUG rating of B0 U0 G0.

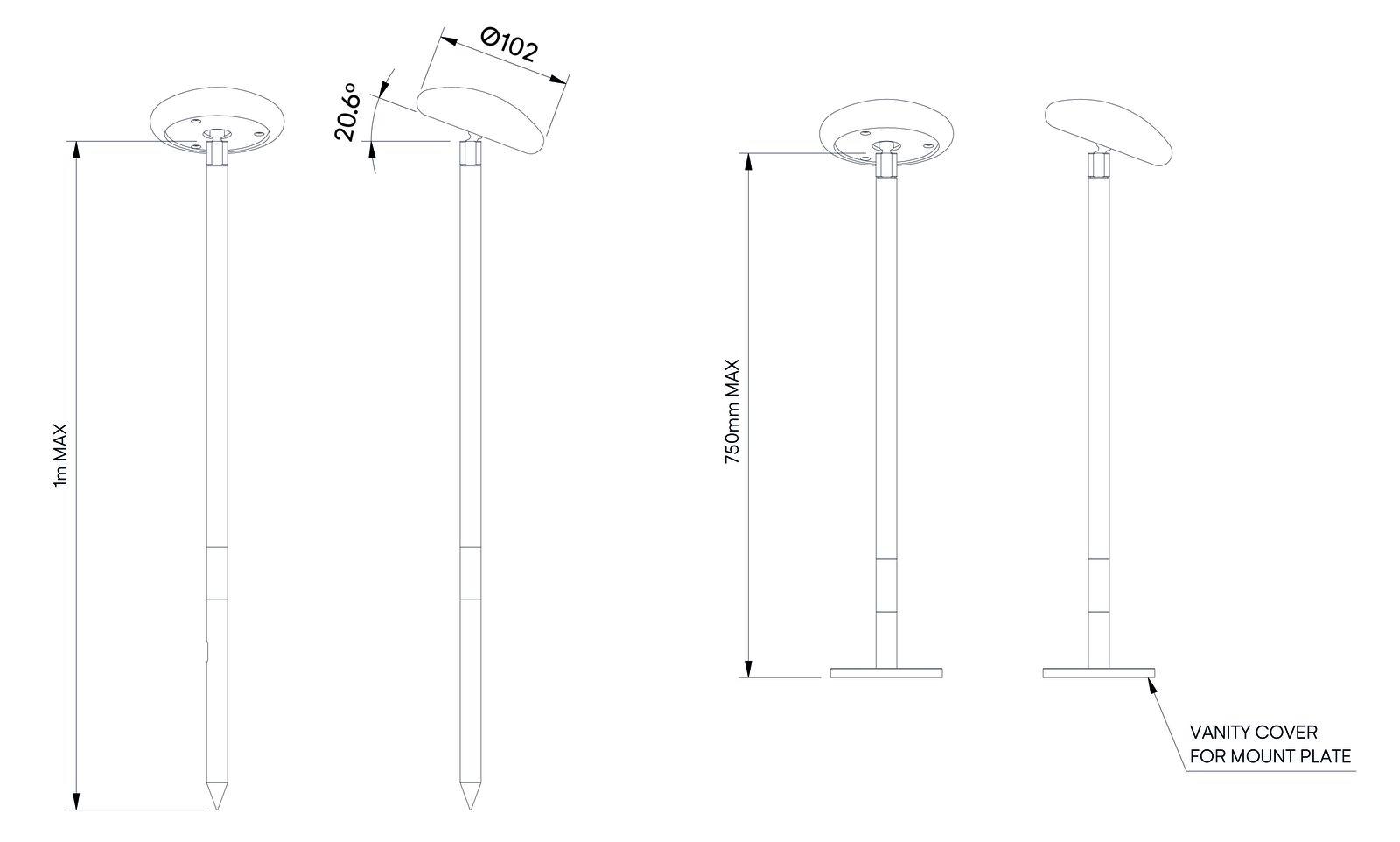

Providing up to 20.6° of lockable tilt adjustment and both spike and fixed mount plates available.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Versatile adjustment providing up to 20.6° of tilt with locking mechanism.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 97 CRI LEDs.
• Special SPD LEDs available on request.
• Ground spike and fixed mount plate options available for soft and hard landscaping applications.
Exterior landscape accent lighting system, designed for both soft and hard landscaping applications, it can be used both in ground and on tabletops.
Product Description
The Amanita is a small form factor IP66 rated exterior accent light, designed to provide a soft, low level, 360° lighting distribution via a customised impact resistant frosted diffuser.
When orientated directly downwards the product provides a BUG rating of B0 U0 G0.
Providing up to 20.6° of lockable tilt adjustment and both spike and fixed mount plates available.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Versatile adjustment providing up to 20.6° of tilt with locking mechanism.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 97 CRI LEDs.
• Special SPD LEDs available on request.
• Ground spike and fixed mount plate options available for soft and hard landscaping applications.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
amanita (spike mount) amanita (mount disc)
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Technical
Supply
Remote constant current LED driver required
Light source
SL Star
Initial output
95 CRI 6W 5.8Vf at 700mA
2700K • 537lm • 90lm/W
3000K • 576lm • 96lm/W
3500K • 612lm • 102lm/W
4000K • 657lm • 110lm/W
Light distribution
Downward 96.2°
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP66
Weight
0.65kg
Lumen
Maintenance: L70 B50 >66,000 hours
IP Rating: IP66
Weight: 0.65kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
Photometry
To access our photometry files please view this page from a desktop device.
BUG Report
The BUG rating is used to describe distribution and
intensity of light from a luminaire. It is often used to
establish performance of exterior luminaires and to
provide specifications for luminaires on lighting
schemes.
